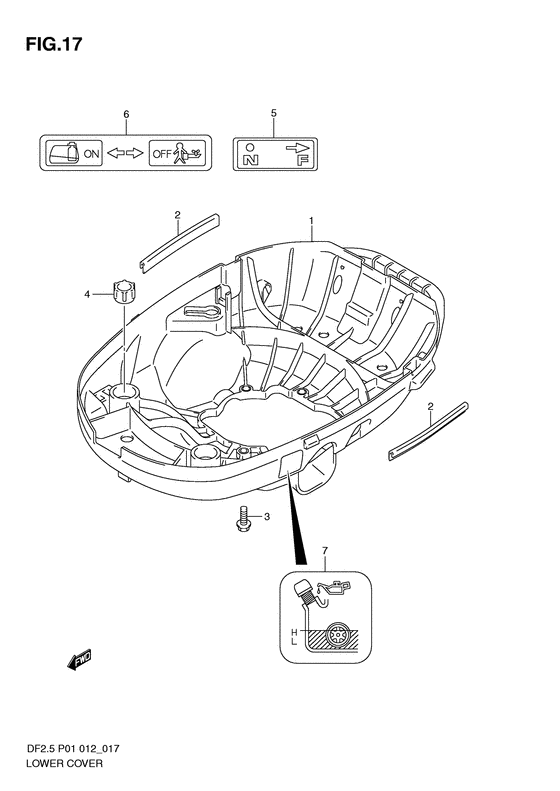

Lower cover Diagram Suzuki DF2.5 S
- Year
- 2012
- Model
- DF2.5
- Year
- 2012
- Engine
- 00252F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 2.5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61110-97J01-YR9 COVER,ENGINE LWRCover, lower (gray); |
61110-97J01-YR9 |
US $91.20 |
||
|
2
|
2
61135-97J00-000
CUSHION,LWR COVER
|
61135-97J00-000 |
— | ||
| replacement | |||||
|
2
|
2
61135-97J01-000 Cushion,lwr Cover |
61135-97J01-000 |
US $7.14 |
||
|
3
|
3
29116-93J00-000 BoltBolt (6x20); |
29116-93J00-000 |
US $1.60 |
||
|
4
|
4
61151-91J01-000 CUSHIONCushion, fuel tank holder Cushion, fuel tank holder; |
61151-91J01-000 |
US $2.83 |
||
|
5
|
5
21131-97J20-000 MARK,CLUTCH SHIFT(S)Mark, clutch shift (s); |
21131-97J20-000 |
US $1.60 |
||
|
6
|
6
61211-97J00-000 MARK,FUEL COCK(S)Mark, fuel cock (s); |
61211-97J00-000 |
US $1.52 |
||
|
7
|
7
61212-97J00-000 MARK,OIL LEVEL(S)Mark, oil level (s); |
61212-97J00-000 |
US $1.84 |
||
