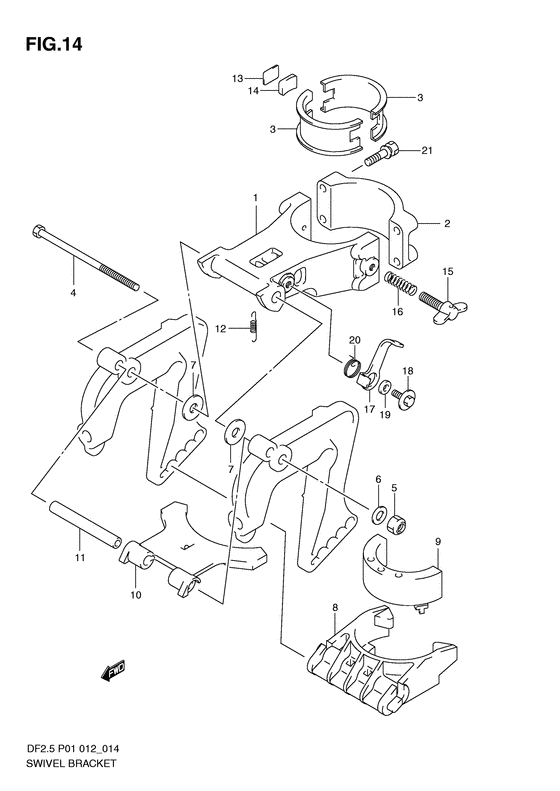

Swivel bracket Diagram Suzuki DF2.5 S
- Year
- 2012
- Model
- DF2.5
- Year
- 2012
- Engine
- 00252F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 2.5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43111-97J30-0EP
BRACKET,SWIVEL
Bracket, swivel port (black); |
43111-97J30-0EP |
— | ||
| replacement | |||||
|
1
|
1
43111-97J31-0EP Bracket,swivelBracket, swivel port (black); |
43111-97J31-0EP |
from US $72 |
||
|
2
|
2
43121-97J30-0EP COVER,SWIVEL BRACKETBracket, swivel stbd (black); |
43121-97J30-0EP |
US $45.63 |
||
|
3
|
3
43711-97J00-000 BUSH,STEERING UPR |
43711-97J00-000 |
US $3.84 |
||
|
4
|
4
59111-97JL0-000 BOLT,SWIVEL SHAFT |
59111-97JL0-000 |
US $5.67 |
||
|
5
|
5
09159-08018-000 NUTNut, swivel shaft |
09159-08018-000 |
US $15.50 |
||
|
6
|
6
09160-08091-000 WASHER(8.5X14X1.0)Washer (8.5x14x1.0) Washer (8.5x14x1.0); |
09160-08091-000 |
from US $1.21 |
||
| replacement | |||||
|
6
|
6
09160-08082-000 WASHER(8.5X16X1.2)Washer (8.5x14x1.0); |
09160-08082-000 |
from US $1.08 |
||
|
7
|
7
09160-08081-000 WASHER(8.5X23X1.5)Washer, clutch lever Washer (8.5x23x1.5); |
09160-08081-000 |
from US $4.05 |
||
|
8
|
8
45411-97J00-000
BLOCK,THRUST
|
45411-97J00-000 |
— | ||
| replacement | |||||
|
8
|
8
45411-97J30-000 BLOCK,THRUST |
45411-97J30-000 |
US $12.31 |
||
|
9
|
9
54151-97J00-000
Mount, lower thrust
|
54151-97J00-000 |
— | ||
| replacement | |||||
|
9
|
9
54151-97JL0-000 MOUNT,LWR THRUST |
54151-97JL0-000 |
US $7.84 |
||
|
10
|
10
43751-97J01-000 BRACKET,SWIVEL STOPPER |
43751-97J01-000 |
from US $8.67 |
||
|
11
|
11
43752-97J00-000 SHAFT,SWIVEL STOPPER |
43752-97J00-000 |
US $2.69 |
||
|
12
|
12
59443-97J00-000 SPRING,SWIVEL STOPPER |
59443-97J00-000 |
US $1.35 |
||
|
13
|
13
43415-97J10-000
PLATE,STEERING ADJUSTER
|
43415-97J10-000 |
— | ||
|
14
|
14
43416-97J10-000
RUBBER,STEERING ADJUSTER
|
43416-97J10-000 |
— | ||
| replacement | |||||
|
14
|
14
43430-97L00-000 RUBBER,STEERING ADJUSTER |
43430-97L00-000 |
US $6.08 |
||
|
15
|
15
09119-06110-000
Bolt, steering adjuster
Bolt (6x12); |
09119-06110-000 |
— | ||
| replacement | |||||
|
15
|
15
09119-06130-000 BOLT,STEERING ADJUDTERBolt (6x12); |
09119-06130-000 |
from US $10.37 |
||
|
16
|
16
09440-09042-000 SPRINGSpring, steering adjuster |
09440-09042-000 |
from US $1.28 |
||
|
17
|
17
41221-97J10-000
Lever, tilt lock
|
41221-97J10-000 |
— | ||
| replacement | |||||
|
17
|
17
41221-97JL0-000 LEVER,TILT LOCK |
41221-97JL0-000 |
from US $4.80 |
||
|
18
|
18
09116-06127-000 BOLT(6X12)Bolt (6x12); |
09116-06127-000 |
from US $1.44 |
||
|
19
|
19
59181-97J10-000 SPACER,TILT LOCK LEVERSpacer, tilt lock lever; |
59181-97J10-000 |
from US $2.24 |
||
|
20
|
20
59444-97J10-000 SPRING,TILT LOCK |
59444-97J10-000 |
from US $1.60 |
||
|
21
|
21
09116-06207-000 Bolt, swivel bracketBolt (6x30) Bolt (6x30); |
09116-06207-000 |
US $2.80 |
||
| replacement | |||||
|
21
|
21
09116-06232-000 BOLT(6X30)Bolt (6x30); |
09116-06232-000 |
from US $2.29 |
||
|
22
|
22
43110-97J30-0EP
BRACKET ASSY,SWIVEL
Bracket assy, swivel (black); Opt,not shown |
43110-97J30-0EP |
— | ||
| replacement | |||||
|
22
|
22
43110-97J31-0EP Bracket Assy,swivelBracket assy, swivel (black); Opt,not shown |
43110-97J31-0EP |
US $77.28 |
||
