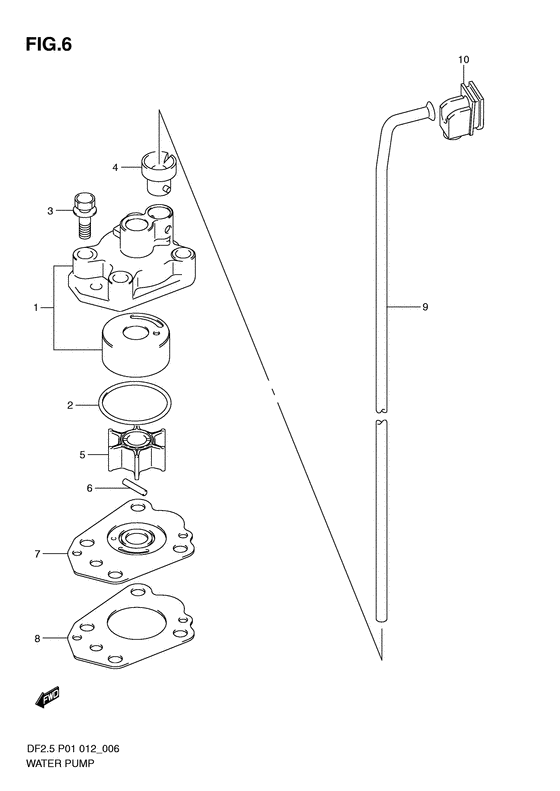

Water pump Diagram Suzuki DF2.5 S
- Year
- 2012
- Model
- DF2.5
- Year
- 2012
- Engine
- 00252F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 2.5
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-97JL0-000
Case comp,water pump
|
17410-97JL0-000 |
— | ||
| replacement | |||||
|
1
|
1
17410-97JL1-000 CASE,WATER PUMP |
17410-97JL1-000 |
US $24.32 |
||
|
2
|
2
09280-33005-000 O RING(D:1.9,ID:32.7)Seal, water pump case O ring (d:1.9,id:32.7); |
09280-33005-000 |
from US $1.52 |
||
|
3
|
3
09116-06207-000 Bolt, swivel bracketBolt (6x30) Bolt (6x30); |
09116-06207-000 |
US $2.80 |
||
| replacement | |||||
|
3
|
3
09116-06232-000 BOLT(6X30)Bolt (6x30); |
09116-06232-000 |
from US $2.29 |
||
|
4
|
4
17415-97J00-000 GROMMET,WATER PUMP CASE |
17415-97J00-000 |
US $2.88 |
||
|
5
|
5
17461-97J10-000
Impeller,Water Pump
|
17461-97J10-000 |
— | ||
| replacement | |||||
|
5
|
5
17461-97JM0-000 Impeller,Water Pump |
17461-97JM0-000 |
from US $16.67 |
||
|
6
|
6
09202-02006-000 PIN(2.9X14)Pin, pump case impeller |
09202-02006-000 |
from US $1.66 |
||
|
7
|
7
17471-97JL0-000 PANEL,PUMP CASE UNDER |
17471-97JL0-000 |
from US $6.38 |
||
|
8
|
8
17472-97JL0-000 GASKET,PUMP CASE PANEL |
17472-97JL0-000 |
from US $4.56 |
||
|
9
|
9
17561-97JL0-000
TUBE,WATER(S)
Tube, water (s); |
17561-97JL0-000 |
— | ||
| replacement | |||||
|
9
|
9
17561-97JM0-000 TUBE,WATER(S)Tube, water (s); |
17561-97JM0-000 |
US $11.10 |
||
|
10
|
10
17563-97J10-000 GROMMET,WATER TUBE UPR |
17563-97J10-000 |
US $3.36 |
||
