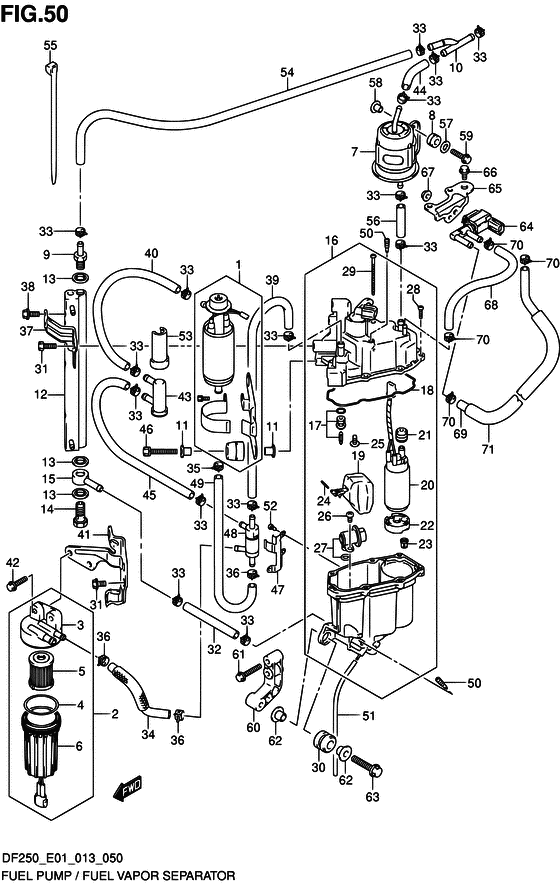

Fuel pump / fuel vapor separator ((DF225Z E40)) Diagram Suzuki DF200 (Z)TL/X/XX
- Year
- 2013
- Model
- DF200
- Year
- 2013
- Engine
- 20002F-310001~ (20002Z-310001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0
|
0
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
0
|
0
01500-06257-000 Bolt |
01500-06257-000 |
from US $0.96 |
||
|
0
|
0
01570-06357-000 BoltBolt, fuel pump |
01570-06357-000 |
from US $3.77 |
||
|
0
|
0
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
0
|
0
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
0
|
0
01550-06357-000 BoltBolt, throttle lever no.2 |
01550-06357-000 |
from US $0.91 |
||
|
0
|
0
01550-08407-000 Bolt |
01550-08407-000 |
from US $1.12 |
||
|
0
|
0
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
0
|
0
08316-10067-000 NUT |
08316-10067-000 |
from US $0.96 |
||
|
0
|
0
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
0
|
0
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.12 |
||
|
0
|
0
09169-08042-000 WASHERWasher (8.5x22x2) |
09169-08042-000 |
from US $5.31 |
||
|
0
|
0
09320-08501-000 CUSHION |
09320-08501-000 |
from US $3.42 |
||
|
0
|
0
09320-12072-000
CUSHION
|
09320-12072-000 |
— | ||
| replacement | |||||
|
0
|
0
09320-12094-000 Cushion,silencer Bracket |
09320-12094-000 |
US $17.70 |
||
|
0
|
0
09352-50823-600
HOSE(5X8.2X600)
L:600->550 |
09352-50823-600 |
— | ||
| replacements | |||||
|
0
|
0
44420-44AR0-000 HOSE SET,FUELL:600->550 |
44420-44AR0-000 |
US $11.95 |
||
|
0
|
0
09352-50005-600 Hose(5X8.2X600)L:600->550 |
09352-50005-600 |
from US $4.10 |
||
|
0
|
0
09401-08412-000 CLIP |
09401-08412-000 |
from US $1.52 |
||
|
0
|
0
09343-75001-600
HOSE(7.5X13.5X600)
L:600->50 |
09343-75001-600 |
— | ||
| replacement | |||||
|
0
|
0
09343-75002-600 Hose(7.5X13.5X600)L:600->50 |
09343-75002-600 |
from US $27.04 |
||
|
0
|
0
09401-11414-000 CLIP(ID:11.5) |
09401-11414-000 |
from US $1.82 |
||
|
0
|
0
09360-12013-000 UNION |
09360-12013-000 |
from US $9.95 |
||
|
0
|
0
13614-93J00-000 SCREW |
13614-93J00-000 |
US $1.77 |
||
|
0
|
0
13370-93J10-000 VALVE ASSY,NEEDLE |
13370-93J10-000 |
from US $37.54 |
||
|
0
|
0
15770-93J00-000 COOLER,FUEL |
15770-93J00-000 |
US $70.29 |
||
|
0
|
0
15773-90J00-000 UNION,FUEL HOSE |
15773-90J00-000 |
US $10.82 |
||
|
0
|
0
15830-90J00-000 JOINT,FUEL MAINJoint, fuel main |
15830-90J00-000 |
US $14.24 |
||
|
0
|
0
15830-93J00-000 UNION,THREE WAY FUEL HOSE |
15830-93J00-000 |
US $12.81 |
||
|
0
|
0
15600-93J11-000 SEPARATOR ASSY,FUEL VAPOR |
15600-93J11-000 |
US $721.60 |
||
|
0
|
0
15100-94900-000 PUMP ASSY,FUELPump assy, fuel (l) |
15100-94900-000 |
from US $612.52 |
||
|
0
|
0
15410-93J10-000
FILTER,FUEL,L
|
15410-93J10-000 |
— | ||
| replacement | |||||
|
0
|
0
15410-93J11-000 Filter,fuel,l |
15410-93J11-000 |
from US $129.79 |
||
|
0
|
0
15411-93J10-000 CAP,FUEL FILTER |
15411-93J10-000 |
US $41.22 |
||
|
0
|
0
15626-93J10-000 GASKET,SEPARATOR |
15626-93J10-000 |
US $11.92 |
||
|
0
|
0
15627-93J00-000 SCREW |
15627-93J00-000 |
US $3.75 |
||
|
0
|
0
15628-99E00-000 SCREW(L:15) |
15628-99E00-000 |
US $1.84 |
||
|
0
|
0
15629-99E10-000 SCREW,DRAIN |
15629-99E10-000 |
US $3.95 |
||
|
0
|
0
15631-99E10-000 SCREW,REGULATORScrew, regulator |
15631-99E10-000 |
US $1.84 |
||
|
0
|
0
15632-93J20-000 HOSE,FUEL(H) |
15632-93J20-000 |
US $54.10 |
||
|
0
|
0
15633-93J20-000 HOSE,FUEL(H) |
15633-93J20-000 |
from US $50.42 |
||
|
0
|
0
15634-93J20-000 HOSE,FUEL(H) |
15634-93J20-000 |
US $52.62 |
||
|
0
|
0
15412-93J10-000 FILTER ASSY,FUEL |
15412-93J10-000 |
from US $18.95 |
||
|
0
|
0
15635-93J20-000 HOSE,FUEL(H) |
15635-93J20-000 |
US $60.35 |
||
|
0
|
0
15636-98J20-000
HOSE,FUEL(L)
|
15636-98J20-000 |
— | ||
| replacement | |||||
|
0
|
0
15636-98J21-000 Hose,fuel(L) |
15636-98J21-000 |
US $78.40 |
||
|
0
|
0
15637-93J20-000 HOSE,FUEL(L) |
15637-93J20-000 |
US $39.74 |
||
|
0
|
0
15641-90J10-000 SPACER,FUEL PUMP |
15641-90J10-000 |
US $32.02 |
||
|
0
|
0
15642-90J00-000 FILTER |
15642-90J00-000 |
from US $10.24 |
||
|
0
|
0
15643-93J00-000 FILTER,FUEL,L |
15643-93J00-000 |
from US $44.71 |
||
|
0
|
0
15413-93J10-000 CASE ASSY,FUEL FILTER |
15413-93J10-000 |
US $56.67 |
||
|
0
|
0
15415-93J10-000 SEAL,FUEL FILTER NO.1 |
15415-93J10-000 |
US $6.85 |
||
|
0
|
0
15644-93J00-000 COVER,FUEL FILTER |
15644-93J00-000 |
US $6.51 |
||
|
0
|
0
15645-93J10-000 VALVE,CHECK |
15645-93J10-000 |
from US $69.18 |
||
|
0
|
0
15646-93J00-000 CLAMP,FUEL FILTER |
15646-93J00-000 |
US $3.35 |
||
|
0
|
0
15647-93J10-000 BUSH,FUEL PUMP |
15647-93J10-000 |
from US $10.80 |
||
|
0
|
0
15650-93J00-000 FLOAT ASSY |
15650-93J00-000 |
from US $52.62 |
||
|
0
|
0
15654-99E00-000 PIN |
15654-99E00-000 |
US $1.84 |
||
|
0
|
0
15671-93J00-000 BRACKET,VAPOR SEPARATOR |
15671-93J00-000 |
US $21.53 |
||
|
0
|
0
15672-93J00-000 BRACKET,FUEL COOLER |
15672-93J00-000 |
US $12.36 |
||
|
0
|
0
15673-98J00-000 BRACKET,FUEL FILTER |
15673-98J00-000 |
US $28.52 |
||
|
0
|
0
15674-93J00-000 BRACKET,CHECK VALVE |
15674-93J00-000 |
US $10.78 |
||
|
0
|
0
15675-93J00-000 BOLT,COOLER BRACKET |
15675-93J00-000 |
US $1.44 |
||
|
0
|
0
15683-87J00-000 HOSEHose, drain |
15683-87J00-000 |
US $2.50 |
||
|
0
|
0
15685-93J00-000 CLIP,FUEL HOSE NO.1 |
15685-93J00-000 |
from US $3.65 |
||
|
0
|
0
15686-93J00-000 CLIP,FUEL HOSE NO.2 |
15686-93J00-000 |
US $2.74 |
||
|
0
|
0
15200-93J11-000
PUMP ASSY,FUEL(H)
|
15200-93J11-000 |
— | ||
|
0
|
0
15440-93J10-000 FILTER,FUEL |
15440-93J10-000 |
from US $74.40 |
||
|
0
|
0
15760-93J00-000
REGULATOR,FUEL PRESSURE
|
15760-93J00-000 |
— | ||
| replacement | |||||
|
0
|
0
15760-93J01-000 Regulator,fuel Pressure |
15760-93J01-000 |
from US $109.60 |
||
|
0
|
0
15762-90J00-000 GASKET,UNIONGasket, union |
15762-90J00-000 |
US $4.16 |
||
|
0
|
0
18498-87JC0-000
PROTECTOR,HOSE(9.5X11.5X450)
|
18498-87JC0-000 |
— | ||
| replacement | |||||
|
0
|
0
18498-87JC1-000 Protector,hose(9.5X11.5X450) |
18498-87JC1-000 |
US $4.93 |
||
|
0
|
0
18417-93J00-000 BRACKET,PURGE VALVE |
18417-93J00-000 |
from US $3.75 |
||
|
0
|
0
18117-52G10-000 VALVE,CANISTER PURGE |
18117-52G10-000 |
from US $65.05 |
||
