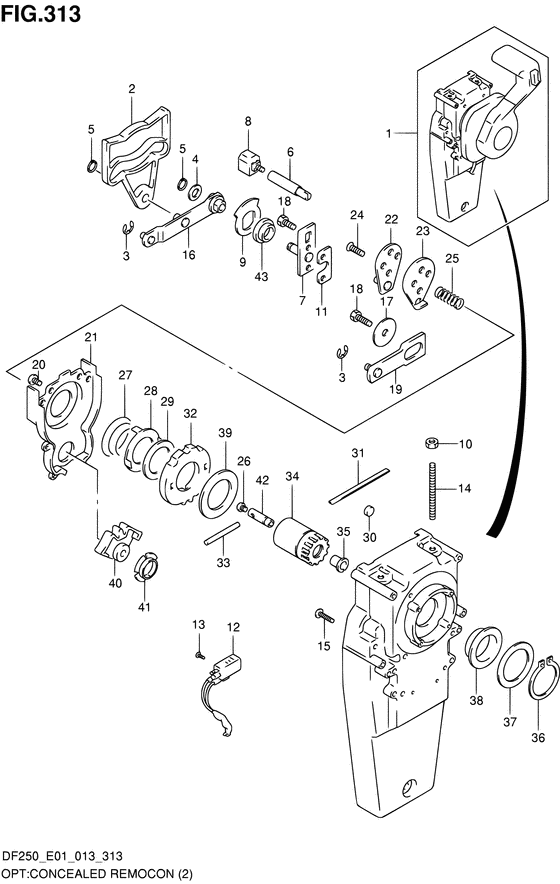

Opt:concealed remocon ((2)) Diagram Suzuki DF200 (Z)TL/X/XX
- Year
- 2013
- Model
- DF200
- Year
- 2013
- Engine
- 20002F-310001~ (20002Z-310001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0
|
0
09125-04004-000 SCREW(4X6) |
09125-04004-000 |
from US $2.21 |
||
|
0
|
0
09125-05042-000 SCREW(5X10) |
09125-05042-000 |
from US $0.91 |
||
|
0
|
0
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
0
|
0
37721-95500-000 SWITCH ASSY,NEUTRAL |
37721-95500-000 |
US $30.40 |
||
|
0
|
0
67221-92E50-000 HOLDER ASSY |
67221-92E50-000 |
US $8.91 |
||
|
0
|
0
67222-92E50-000 DUEL PLATE |
67222-92E50-000 |
US $17.63 |
||
|
0
|
0
67223-92E50-000 BRAKE ADJUST |
67223-92E50-000 |
US $3.75 |
||
|
0
|
0
67224-92E50-000 BRAKE SHOE ASSY |
67224-92E50-000 |
US $10.34 |
||
|
0
|
0
67225-92E00-000 SPRING |
67225-92E00-000 |
US $2.24 |
||
|
0
|
0
67225-92E50-000 DISC,BRAKE |
67225-92E50-000 |
US $3.97 |
||
|
0
|
0
67226-92E10-000 BOLT,STOPPER RRBolt, stopper rear |
67226-92E10-000 |
US $5.92 |
||
|
0
|
0
67227-92E00-000 STOPPER |
67227-92E00-000 |
US $9.49 |
||
|
0
|
0
67228-92E00-000 WASHER |
67228-92E00-000 |
US $3.83 |
||
|
0
|
0
67230-92E00-000 SHIFT ARM ASSY |
67230-92E00-000 |
US $7.99 |
||
|
0
|
0
67231-92E00-000 GEAR,SHIFT |
67231-92E00-000 |
US $12.59 |
||
|
0
|
0
67232-92E50-000 BUSH |
67232-92E50-000 |
US $1.25 |
||
|
0
|
0
67232-95600-000 BUSH |
67232-95600-000 |
US $8.64 |
||
|
0
|
0
67233-92E00-000 SPRING |
67233-92E00-000 |
US $9.49 |
||
|
0
|
0
67234-92E00-000 CASE,GEAR |
67234-92E00-000 |
US $23.18 |
||
|
0
|
0
67235-92E00-000 PLATE,SHIFT LOCKPlate, shift lock |
67235-92E00-000 |
US $5.92 |
||
|
0
|
0
67236-92E00-000 ROLLER |
67236-92E00-000 |
US $3.35 |
||
|
0
|
0
67237-92E01-000 SPRING |
67237-92E01-000 |
US $3.35 |
||
|
0
|
0
67238-92E50-000 GEAR,DRIVE |
67238-92E50-000 |
US $13.58 |
||
|
0
|
0
67239-92E00-000 PIN |
67239-92E00-000 |
US $12.59 |
||
|
0
|
0
67239-92E10-000 PLATE,SHIFT PINPlate, shift pin |
67239-92E10-000 |
US $6.40 |
||
|
0
|
0
67240-92E50-000 THROTTLE ARM ASSYArm assy, throttle |
67240-92E50-000 |
US $19.14 |
||
|
0
|
0
67241-92E50-000 ROD,FREE ACC |
67241-92E50-000 |
US $6.29 |
||
|
0
|
0
67245-92E00-000 LEVER ASSY,THROTTLELever assy, throttle |
67245-92E00-000 |
US $17.63 |
||
|
0
|
0
67246-92E50-000 SHAFT,DRIVE |
67246-92E50-000 |
US $13.76 |
||
|
0
|
0
67252-92E00-000 BUSH |
67252-92E00-000 |
US $4.27 |
||
|
0
|
0
67252-92E10-000 BUSH |
67252-92E10-000 |
US $3.35 |
||
|
0
|
0
67253-92E10-000 WASHER |
67253-92E10-000 |
US $2.80 |
||
|
0
|
0
67253-95600-000 WASHER |
67253-95600-000 |
US $8.64 |
||
|
0
|
0
67286-92E00-000 Bolt |
67286-92E00-000 |
US $2.24 |
||
|
0
|
0
67288-92E10-000 WASHER |
67288-92E10-000 |
US $2.24 |
||
|
0
|
0
67291-92E00-000 RING,SNAP |
67291-92E00-000 |
US $2.80 |
||
|
0
|
0
67291-92E10-000 RING,SNAP |
67291-92E10-000 |
US $7.99 |
||
|
0
|
0
67292-94300-000 E RING,REMO-CON |
67292-94300-000 |
from US $1.53 |
||
|
0
|
0
67294-92E00-000 SPACER |
67294-92E00-000 |
US $9.49 |
||
|
0
|
0
67296-88D10-000 SCREW(5X16) |
67296-88D10-000 |
US $1.73 |
||
|
0
|
0
67296-92E10-000
Screw
|
67296-92E10-000 |
— | ||
| replacement | |||||
|
0
|
0
67296-92E11-000 SCREW,NEUTRAL SWITCH |
67296-92E11-000 |
US $2.24 |
||
|
0
|
0
67296-92E20-000 SCREW |
67296-92E20-000 |
US $2.24 |
||
|
0
|
0
67200-93J32-000
Remote control assy,conceal
|
67200-93J32-000 |
— | ||
| replacements | |||||
|
0
|
0
67200-93J33-000
REMOTE CONTROL ASSY,CONCEAL
|
67200-93J33-000 |
— | ||
|
0
|
0
67200-93J34-000 Remote Control Assy,conceal |
67200-93J34-000 |
US $425.92 |
||
