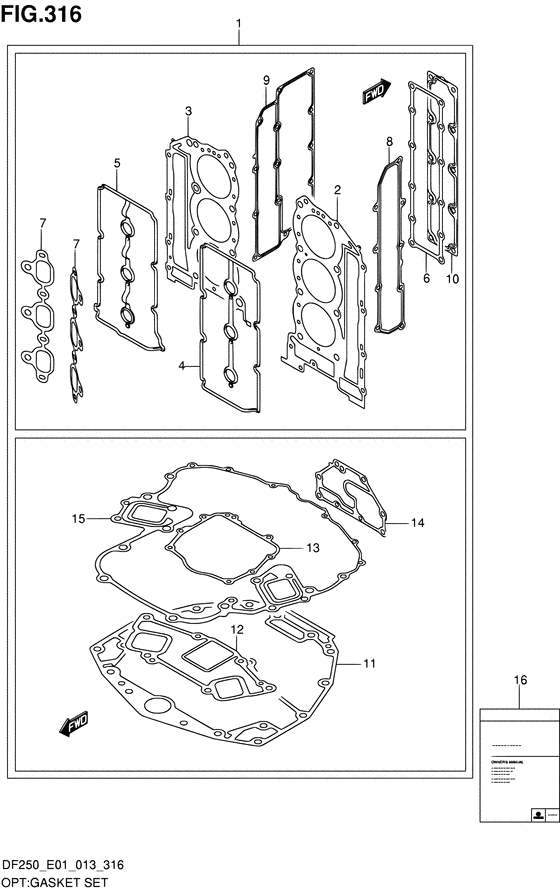

Opt:gasket set ((DF200T E40)) Diagram Suzuki DF200 (Z)TL/X/XX
- Year
- 2013
- Model
- DF200
- Year
- 2013
- Engine
- 20002F-310001~ (20002Z-310001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0
|
0
11189-93J00-000 GASKET,CYL HEAD COVER PORT |
11189-93J00-000 |
from US $20.84 |
||
|
0
|
0
11141-93J10-000 GASKET,CYLINDER HEAD STBD |
11141-93J10-000 |
from US $90.34 |
||
|
0
|
0
11179-93J00-000 GASKET,CYL HEAD COVER STBD |
11179-93J00-000 |
from US $20.74 |
||
|
0
|
0
11142-93J10-000 GASKET,CYLINDER HEAD PORT |
11142-93J10-000 |
from US $80.31 |
||
|
0
|
0
11272-93J00-000 GASKET,CYLINDER BLOCK PLATE |
11272-93J00-000 |
from US $5.44 |
||
|
0
|
0
11332-93J00-000 GASKET,CRANKCASE WTR JKT COVERGasket, wtr jkt cover |
11332-93J00-000 |
US $7.04 |
||
|
0
|
0
11410-93871-000
GASKET SET
|
11410-93871-000 |
— | ||
| replacement | |||||
|
0
|
0
11410-93873-000 GASKET SET |
11410-93873-000 |
from US $278.69 |
||
|
0
|
0
11489-93J00-000 GASKET,OIL PAN |
11489-93J00-000 |
from US $36.14 |
||
|
0
|
0
13119-93J00-000 GASKET,INTAKE MANIFOLD |
13119-93J00-000 |
from US $11.51 |
||
|
0
|
0
14212-93J00-000 GASKET,EXHAUST TUBE |
14212-93J00-000 |
from US $7.09 |
||
|
0
|
0
14151-93J00-000 GASKET,EXHAUST COVER(STBD)Gasket, exhaust cover stbd |
14151-93J00-000 |
from US $12.16 |
||
|
0
|
0
14152-93J00-000
GASKET,EXHAUST COVER(PORT)
|
14152-93J00-000 |
— | ||
| replacement | |||||
|
0
|
0
14152-93J01-000 EXHAUST TUBE SEAL |
14152-93J01-000 |
from US $15.44 |
||
|
0
|
0
51142-93J00-000 GASKET,ENGINE HOLDER COVER |
51142-93J00-000 |
US $4.80 |
||
|
0
|
0
51211-93J00-000 GASKET,ENGINE HOLDER |
51211-93J00-000 |
from US $57.55 |
||
|
0
|
0
51123-93J00-000
GASKET,MOUNT OIL SEAL COVER
|
51123-93J00-000 |
— | ||
| replacement | |||||
|
0
|
0
51123-93J01-000 Gasket,mount Oil Seal Cover |
51123-93J01-000 |
from US $6.56 |
||
|
0
|
0
99011-93J40-059 MANUAL,OWNER'S |
99011-93J40-059 |
US $15.46 |
||
