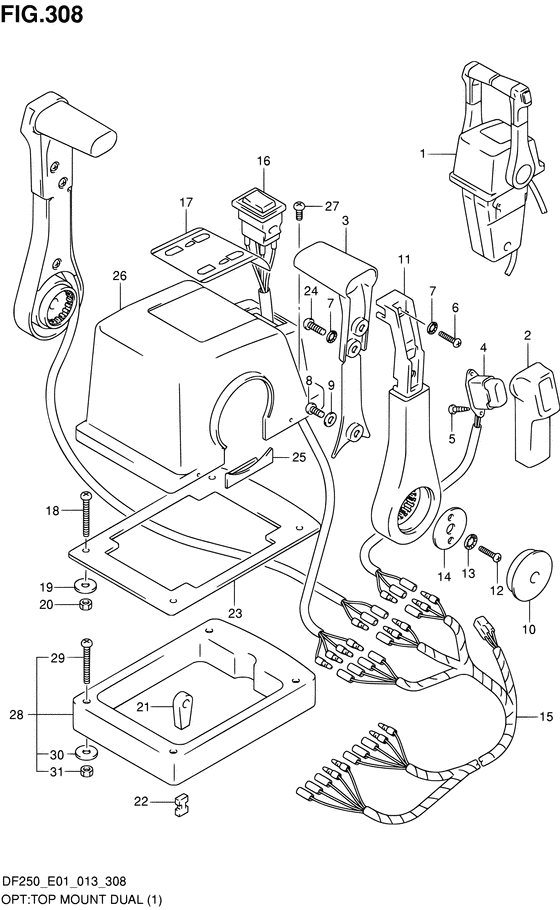

Opt:top mount dual ((1)) Diagram Suzuki DF200 (Z)TL/X/XX
- Year
- 2013
- Model
- DF200
- Year
- 2013
- Engine
- 20002F-310001~ (20002Z-310001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0
|
0
09125-05135-000 SCREW(5X65) |
09125-05135-000 |
from US $5.12 |
||
|
0
|
0
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
0
|
0
09160-05024-000 WASHER(5.5X16X1.5) |
09160-05024-000 |
from US $2.45 |
||
|
0
|
0
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
0
|
0
36890-93J10-000 WIRE,NEUTRAL & PTT SW |
36890-93J10-000 |
US $129.79 |
||
|
0
|
0
37220-92E00-000 SWITCH ASSY,MODE CHANGINGSwitch assy, mode changing |
37220-92E00-000 |
US $96.42 |
||
|
0
|
0
37850-93J10-000 SWITCH ASSY,PTT |
37850-93J10-000 |
from US $83.54 |
||
|
0
|
0
67211-93J10-000 BODY COVER,TOP MOUNT DUAL |
67211-93J10-000 |
US $58.53 |
||
|
0
|
0
67251-93J00-000 LEVER,HANDLE |
67251-93J00-000 |
US $83.54 |
||
|
0
|
0
67253-92E00-000 WASHER |
67253-92E00-000 |
US $3.83 |
||
|
0
|
0
67257-92E00-000 CAP,LEVER |
67257-92E00-000 |
US $6.88 |
||
|
0
|
0
67261-93J00-000 GRIP,NO.1 |
67261-93J00-000 |
US $17.49 |
||
|
0
|
0
67263-93J00-000 GRIP,NO.2 |
67263-93J00-000 |
US $34.21 |
||
|
0
|
0
67271-92E00-000 COVER |
67271-92E00-000 |
US $5.41 |
||
|
0
|
0
67500-93J10-000 KIT,R/CON SPACER TWIN |
67500-93J10-000 |
from US $17.08 |
||
|
0
|
0
67273-92E10-000 GROMMET |
67273-92E10-000 |
US $19.32 |
||
|
0
|
0
67273-95600-000
SPACER
|
67273-95600-000 |
— | ||
| replacement | |||||
|
0
|
0
67273-95601-000 Spacer |
67273-95601-000 |
US $3.46 |
||
|
0
|
0
67275-95600-000 END,CABLE |
67275-95600-000 |
from US $4.64 |
||
|
0
|
0
67282-93J00-000 DECAL |
67282-93J00-000 |
US $22.05 |
||
|
0
|
0
67287-92E00-000 NUT |
67287-92E00-000 |
US $1.77 |
||
|
0
|
0
67288-92E20-000 WASHER |
67288-92E20-000 |
US $1.77 |
||
|
0
|
0
67288-92E30-000 WASHER |
67288-92E30-000 |
US $1.95 |
||
|
0
|
0
67288-92E40-000 WASHER |
67288-92E40-000 |
US $1.95 |
||
|
0
|
0
67295-92E00-000 SCREW |
67295-92E00-000 |
US $1.95 |
||
|
0
|
0
67295-92E10-000 SCREW |
67295-92E10-000 |
US $1.77 |
||
|
0
|
0
67296-88D10-000 SCREW(5X16) |
67296-88D10-000 |
US $1.73 |
||
|
0
|
0
67296-92E30-000 SCREW |
67296-92E30-000 |
US $2.24 |
||
|
0
|
0
67296-92E60-000 SCREW |
67296-92E60-000 |
US $2.24 |
||
|
0
|
0
67296-92E70-000 SCREW |
67296-92E70-000 |
US $1.95 |
||
|
0
|
0
67200-93J23-000
REMOTE CONTROL ASSY,TWIN
|
67200-93J23-000 |
— | ||
| replacements | |||||
|
0
|
0
67200-88L10-000
REMOTE CONTROL ASSY,TWIN
|
67200-88L10-000 |
— | ||
|
0
|
0
67200-88L11-000 Remote Control Assy, Dual |
67200-88L11-000 |
US $2,003.04 |
||
