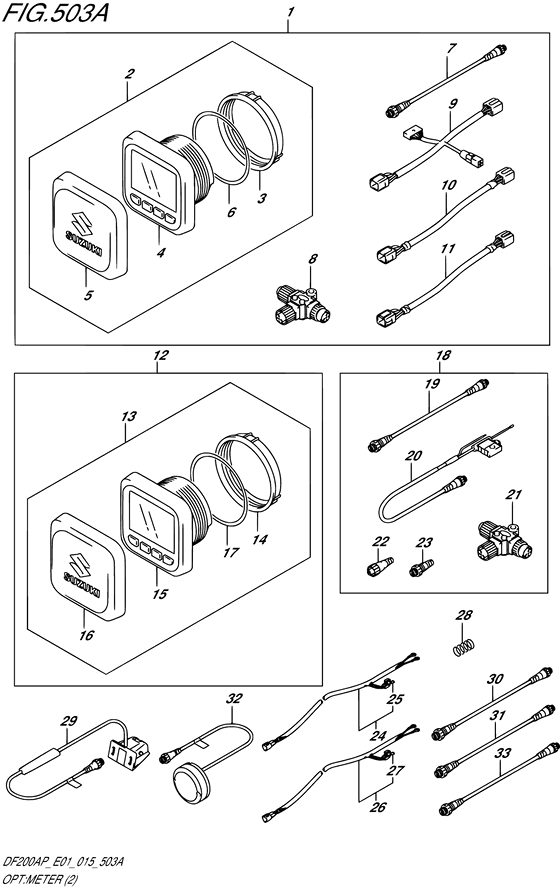

Opt:meter ((2)) Diagram Suzuki DF200A PL/X
- Year
- 2015
- Model
- DF200A
- Year
- 2015
- Engine
- 20003P-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34002-96L00-000
KIT,DUAL STATION
|
34002-96L00-000 |
— | ||
|
2
|
2
34200-96L00-000
GAUGE SET,MULTI(W/INSTRUCTION)
|
34200-96L00-000 |
— | ||
| replacement | |||||
|
2
|
2
34011-96L00-000 GAUGE SET,MULTI(W/INSTRUCTION) |
34011-96L00-000 |
US $667.04 |
||
|
3
|
3
34112-96L00-000 NUT,GAUGE |
34112-96L00-000 |
US $16.74 |
||
|
4
|
4
34193-96L00-000 BEZEL,GAUGE |
34193-96L00-000 |
US $17.30 |
||
|
5
|
5
34211-96L00-000 COVER,GAUGE |
34211-96L00-000 |
US $17.11 |
||
|
6
|
6
34825-96L00-000 PACKING,GAUGE |
34825-96L00-000 |
US $7.58 |
||
|
7
|
7
36662-88L10-000 WIRE,2 EXTENSION |
36662-88L10-000 |
from US $71.57 |
||
|
8
|
8
36664-88L00-000 CONNECTOR,BRANCH |
36664-88L00-000 |
from US $42.44 |
||
|
9
|
9
36665-96L00-000 ADAPTER,DUAL STATION |
36665-96L00-000 |
US $52.99 |
||
|
10
|
10
36666-96L00-000 ADAPTER,GAUGE POWER |
36666-96L00-000 |
US $33.12 |
||
|
11
|
11
36682-92E00-000 WIRE,TRIM METER EXT(L:6500)Wire, trim gauge ext |
36682-92E00-000 |
US $82.80 |
||
|
12
|
12
34011-96L00-000 GAUGE SET,MULTI(W/INSTRUCTION) |
34011-96L00-000 |
US $667.04 |
||
|
13
|
13
34200-96L00-000
GAUGE SET,MULTI(W/INSTRUCTION)
|
34200-96L00-000 |
— | ||
| replacement | |||||
|
13
|
13
34011-96L00-000 GAUGE SET,MULTI(W/INSTRUCTION) |
34011-96L00-000 |
US $667.04 |
||
|
14
|
14
34112-96L00-000 NUT,GAUGE |
34112-96L00-000 |
US $16.74 |
||
|
15
|
15
34193-96L00-000 BEZEL,GAUGE |
34193-96L00-000 |
US $17.30 |
||
|
16
|
16
34211-96L00-000 COVER,GAUGE |
34211-96L00-000 |
US $17.11 |
||
|
17
|
17
34825-96L00-000 PACKING,GAUGE |
34825-96L00-000 |
US $7.58 |
||
|
18
|
18
36001-88L00-000 SET,WIRE |
36001-88L00-000 |
from US $172.96 |
||
|
19
|
19
36662-88L10-000 WIRE,2 EXTENSION |
36662-88L10-000 |
from US $71.57 |
||
|
20
|
20
36663-88L00-000 HARNESS ASSY,NETWORK POWER |
36663-88L00-000 |
from US $95.45 |
||
|
21
|
21
36664-88L00-000 CONNECTOR,BRANCH |
36664-88L00-000 |
from US $42.44 |
||
|
22
|
22
36665-88L00-000 UNIT,RESISTOR FEMALE |
36665-88L00-000 |
from US $17.82 |
||
|
23
|
23
36665-88L10-000 UNIT,RESISTOR MALE |
36665-88L10-000 |
from US $19.33 |
||
|
24
|
24
36663-98J00-000 HARNESS,ACTIVE HUB PWR(2.5M)L:2500 |
36663-98J00-000 |
US $76.91 |
||
|
25
|
25
09481-05501-000 FUSE(5A) |
09481-05501-000 |
from US $1.93 |
||
|
26
|
26
36663-98J10-000 HARNESS,ACTIVE HUB PWR(6M)L:6000 |
36663-98J10-000 |
from US $120.06 |
||
|
27
|
27
09481-05501-000 FUSE(5A) |
09481-05501-000 |
from US $1.93 |
||
|
28
|
28
67237-98J20-000 SPRING,DETENT |
67237-98J20-000 |
US $5.34 |
||
|
29
|
29
34190-88L00-000 SENSOR ASSY,PAD WHEEL |
34190-88L00-000 |
US $264.96 |
||
|
30
|
30
36662-88L20-000 WIRE,6 EXTENSION |
36662-88L20-000 |
from US $68.08 |
||
|
31
|
31
36662-88L30-000 WIRE,15 EXTENSION |
36662-88L30-000 |
US $109.66 |
||
|
32
|
32
39950-88L00-000
Module assy,gps receiver
|
39950-88L00-000 |
— | ||
| replacement | |||||
|
32
|
32
39950-88L02-000 MODULE ASSY,GPS RECEIVER |
39950-88L02-000 |
from US $650.56 |
||
|
33
|
33
36662-88L00-000 WIRE,25 EXTENSION |
36662-88L00-000 |
from US $140.94 |
||
