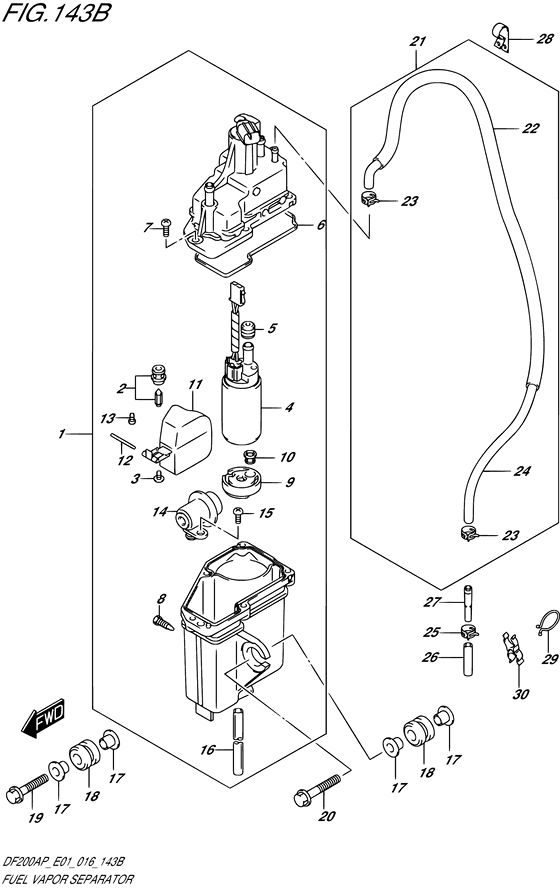

Fuel vapor separator ((DF200AP E40)) Diagram Suzuki DF200A PL/X
- Year
- 2016
- Model
- DF200A
- Year
- 2016
- Engine
- 20003P-610001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15600-96J12-000 SEPARATOR ASSY,FUEL VAPOR |
15600-96J12-000 |
US $848.83 |
||
|
2
|
2
13370-96J00-000 VALVE ASSY,NEEDLE |
13370-96J00-000 |
US $42.56 |
||
|
3
|
3
02142-0408B-000 SCREW |
02142-0408B-000 |
from US $0.77 |
||
|
4
|
4
15200-96J10-000 PUMP ASSY,FUEL(H) |
15200-96J10-000 |
US $439.29 |
||
|
5
|
5
15647-93J10-000 BUSH,FUEL PUMP |
15647-93J10-000 |
from US $10.80 |
||
|
6
|
6
15626-96J00-000 SEAL |
15626-96J00-000 |
from US $10.56 |
||
|
7
|
7
15628-99E00-000 SCREW(L:15) |
15628-99E00-000 |
US $1.84 |
||
|
8
|
8
15629-99E10-000 SCREW,DRAIN |
15629-99E10-000 |
US $3.95 |
||
|
9
|
9
15641-96J00-000 SPACER,FUEL PUMP |
15641-96J00-000 |
US $18.40 |
||
|
10
|
10
15642-90J00-000 FILTER |
15642-90J00-000 |
from US $10.24 |
||
|
11
|
11
15650-96J00-000 FLOAT |
15650-96J00-000 |
US $47.89 |
||
|
12
|
12
13254-01010-000 PIN,FLOAT |
13254-01010-000 |
from US $1.35 |
||
|
13
|
13
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.96 |
||
|
14
|
14
15760-93J00-000
REGULATOR,FUEL PRESSURE
|
15760-93J00-000 |
— | ||
| replacement | |||||
|
14
|
14
15760-93J01-000 Regulator,fuel Pressure |
15760-93J01-000 |
from US $109.60 |
||
|
15
|
15
02112-05107-000 SCREWScrew, bracket |
02112-05107-000 |
from US $0.80 |
||
|
16
|
16
15683-87J00-000 HOSEHose, drain |
15683-87J00-000 |
US $2.50 |
||
|
17
|
17
09169-08042-000 WASHERWasher (8.5x22x2) |
09169-08042-000 |
from US $5.31 |
||
|
18
|
18
09320-12072-000
CUSHION
|
09320-12072-000 |
— | ||
| replacement | |||||
|
18
|
18
09320-12094-000 Cushion,silencer Bracket |
09320-12094-000 |
US $17.70 |
||
|
19
|
19
01550-08357-000 Bolt |
01550-08357-000 |
from US $1.06 |
||
|
20
|
20
01550-08407-000 Bolt |
01550-08407-000 |
from US $1.12 |
||
|
21
|
21
15660-96J20-000
HOSE,EVAPORATION
|
15660-96J20-000 |
— | ||
| replacements | |||||
|
21
|
21
15660-96J30-000
HOSE COMP,EVAPORATION
|
15660-96J30-000 |
— | ||
|
21
|
21
15660-96J31-000 Hose,evaporation(L:1000) |
15660-96J31-000 |
US $19.14 |
||
|
22
|
22
18498-99EC0-000
PROTECTOR(L:760)
|
18498-99EC0-000 |
— | ||
| replacement | |||||
|
22
|
22
18498-99EC1-000 Protector(9.5X11.5X760) |
18498-99EC1-000 |
US $5.92 |
||
|
23
|
23
09401-08412-000 CLIP |
09401-08412-000 |
from US $1.52 |
||
|
24
|
24
09352-50823-00B
HOSE(5X8.2X2000)
L:2000->1000 |
09352-50823-00B |
— | ||
| replacement | |||||
|
24
|
24
09352-50005-00B Hose(5X8.2X2000)L:2000->1000 |
09352-50005-00B |
from US $9.27 |
||
|
25
|
25
09401-08412-000 CLIP |
09401-08412-000 |
from US $1.52 |
||
|
26
|
26
09352-50823-600
HOSE(5X8.2X600)
L:600->45 |
09352-50823-600 |
— | ||
| replacements | |||||
|
26
|
26
44420-44AR0-000 HOSE SET,FUELL:600->45 |
44420-44AR0-000 |
US $11.95 |
||
|
26
|
26
09352-50005-600 Hose(5X8.2X600)L:600->45 |
09352-50005-600 |
from US $4.10 |
||
|
27
|
27
09364-06010-000 UNION |
09364-06010-000 |
US $37.50 |
||
|
28
|
28
09403-13408-000
CLAMP
|
09403-13408-000 |
— | ||
| replacement | |||||
|
28
|
28
09403-13413-000 Clamp |
09403-13413-000 |
from US $8.31 |
||
|
29
|
29
09408-00008-000 CLIP(ID:20)Clamp, vacuum hose |
09408-00008-000 |
from US $3.37 |
||
|
30
|
30
09408-00078-000 CLAMPClamp, evaporation hose |
09408-00078-000 |
from US $3.43 |
||
