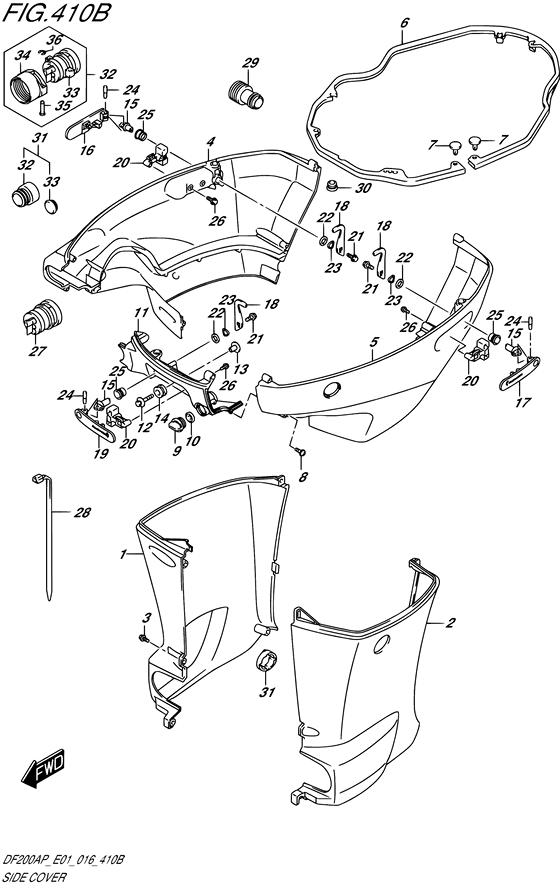

Side cover ((DF200AP E40)) Diagram Suzuki DF200A PL/X
- Year
- 2016
- Model
- DF200A
- Year
- 2016
- Engine
- 20003P-610001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61131-96J12-0EP
COVER,OIL PAN STBD(X)(BLACK)
|
61131-96J12-0EP |
— | ||
| replacement | |||||
|
1
|
1
61131-96J13-0EP Cover,oil Pan Stbd(X) |
61131-96J13-0EP |
US $356.80 |
||
|
1
|
1
61131-96J12-Y5S
COVER,OIL PAN STBD(X)
|
61131-96J12-Y5S |
— | ||
| replacement | |||||
|
1
|
1
61131-96J13-Y5S Cover,oil Pan Stbd(X) |
61131-96J13-Y5S |
US $356.80 |
||
|
2
|
2
61141-96J12-0EP
COVER,OIL PAN PORT(X)(BLACK)
|
61141-96J12-0EP |
— | ||
| replacement | |||||
|
2
|
2
61141-96J13-0EP Cover,oil Pan Port(X) |
61141-96J13-0EP |
US $356.80 |
||
|
2
|
2
61141-96J12-Y5S
COVER,OIL PAN PORT(X)
|
61141-96J12-Y5S |
— | ||
| replacement | |||||
|
2
|
2
61141-96J13-Y5S Cover,oil Pan Port(X) |
61141-96J13-Y5S |
US $356.80 |
||
|
3
|
3
09139-06135-000 SCREW(6X17)Bolt, oil pan cover (6x17) |
09139-06135-000 |
from US $3.50 |
||
|
4
|
4
61811-96L01-0EP COVER,SIDE STBD |
61811-96L01-0EP |
US $401.12 |
||
|
4
|
4
61811-96L01-Y5S COVER,SIDE STBD (WHITE) |
61811-96L01-Y5S |
US $333.04 |
||
|
5
|
5
61820-96L01-0EP COVER,SIDE PORT(BLACK) |
61820-96L01-0EP |
US $401.12 |
||
|
5
|
5
61820-96L01-Y5S COVER,SIDE PORT(WHITE) |
61820-96L01-Y5S |
US $333.04 |
||
|
6
|
6
61134-96J02-000 SEAL,SIDE COVER |
61134-96J02-000 |
US $52.80 |
||
|
7
|
7
09409-05302-5PK CLIP(BLACK) |
09409-05302-5PK |
from US $2.55 |
||
|
8
|
8
09136-06148-000 SCREW(6X35) |
09136-06148-000 |
US $2.92 |
||
| replacement | |||||
|
8
|
8
09139-06249-000 SCREW |
09139-06249-000 |
from US $1.92 |
||
|
9
|
9
17913-93J00-000 PLUG,WATER |
17913-93J00-000 |
from US $4.26 |
||
|
10
|
10
17914-93J00-000
GASKET,WATER PLUG
|
17914-93J00-000 |
— | ||
| replacement | |||||
|
10
|
10
17914-93J01-000 Gasket,water Plug |
17914-93J01-000 |
from US $3.04 |
||
|
11
|
11
61831-96J10-0EP PANEL,FR |
61831-96J10-0EP |
US $172.96 |
||
|
11
|
11
61831-96J10-Y5S PANEL,FR |
61831-96J10-Y5S |
US $143.89 |
||
|
12
|
12
09116-08163-000
BOLT(8X38)
|
09116-08163-000 |
— | ||
| replacement | |||||
|
12
|
12
09116-08174-000 BOLT(8X38) |
09116-08174-000 |
from US $2.59 |
||
|
13
|
13
09169-08039-000
WASHER
|
09169-08039-000 |
— | ||
| replacement | |||||
|
13
|
13
09169-08050-000 WASHER,FRONT PANEL(ID:8.5) |
09169-08050-000 |
from US $9.57 |
||
|
14
|
14
09320-11013-000
CUSHION
|
09320-11013-000 |
— | ||
| replacement | |||||
|
14
|
14
09320-11023-000 Cushion,front Panel |
09320-11023-000 |
US $24.30 |
||
|
15
|
15
61632-93J00-000 SHAFT,ENGINE COVER HOOK |
61632-93J00-000 |
US $25.09 |
||
|
16
|
16
61633-96J02-000 LEVER,HOOK RR STBD |
61633-96J02-000 |
US $29.81 |
||
|
17
|
17
61634-96J02-000 LEVER,HOOK RR PORT |
61634-96J02-000 |
US $24.80 |
||
|
18
|
18
61641-93J10-000 HOOK,ENGINE COVER |
61641-93J10-000 |
from US $7.90 |
||
|
19
|
19
61645-96J02-000 LEVER,HOOK FR |
61645-96J02-000 |
US $23.57 |
||
|
20
|
20
61673-96J02-000
LATCH,HOOK LEVER
|
61673-96J02-000 |
— | ||
| replacement | |||||
|
20
|
20
61673-96J03-000 LATCHHOOK LEVER |
61673-96J03-000 |
from US $6.72 |
||
|
21
|
21
09116-06127-000 BOLT(6X12) |
09116-06127-000 |
from US $1.44 |
||
|
22
|
22
09160-13014-000 WASHER(13.2X25X1) |
09160-13014-000 |
from US $1.07 |
||
|
23
|
23
09164-14008-000 WASHERWasher, wave |
09164-14008-000 |
from US $1.52 |
||
|
24
|
24
09202-04022-000 PIN |
09202-04022-000 |
US $21.30 |
||
|
25
|
25
09306-13007-000 BUSH |
09306-13007-000 |
from US $1.82 |
||
|
26
|
26
01550-05107-000 BoltScrew, hook lever latch |
01550-05107-000 |
from US $0.77 |
||
|
27
|
27
61124-96J40-000 GROMMET,R/CON CABLE |
61124-96J40-000 |
US $25.94 |
||
|
28
|
28
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
29
|
29
17917-87L00-000 CONNECTOR,FLUSH WATER |
17917-87L00-000 |
US $7.58 |
||
|
30
|
30
09250-18002-000
CAP(OD:21)
|
09250-18002-000 |
— | ||
| replacement | |||||
|
30
|
30
09250-18006-000 Cap(Od:21) |
09250-18006-000 |
from US $1.92 |
||
|
31
|
31
61136-96L00-000 CUSHION,OIL PAN COVER |
61136-96L00-000 |
from US $2.58 |
||
|
32
|
32
67300-96L00-000 KIT,HOSE ADAPTER(RIGGING)OPT |
67300-96L00-000 |
US $35.20 |
||
|
33
|
33
61124-96J60-000
GROMMET,R/CON CABLE
OPT |
61124-96J60-000 |
— | ||
| replacement | |||||
|
33
|
33
61124-96J61-000
Grommet,r/con Cable
OPT |
61124-96J61-000 |
— | ||
|
34
|
34
67361-90J10-000 ADAPTER,HOSE(RIGGING)OPT |
67361-90J10-000 |
US $8.67 |
||
|
35
|
35
09208-06009-000 PIN,HOSE ADAPTER(RIGGING)OPT |
09208-06009-000 |
US $15.50 |
||
|
36
|
36
09383-04002-000 E RINGOPT |
09383-04002-000 |
from US $1.12 |
||
