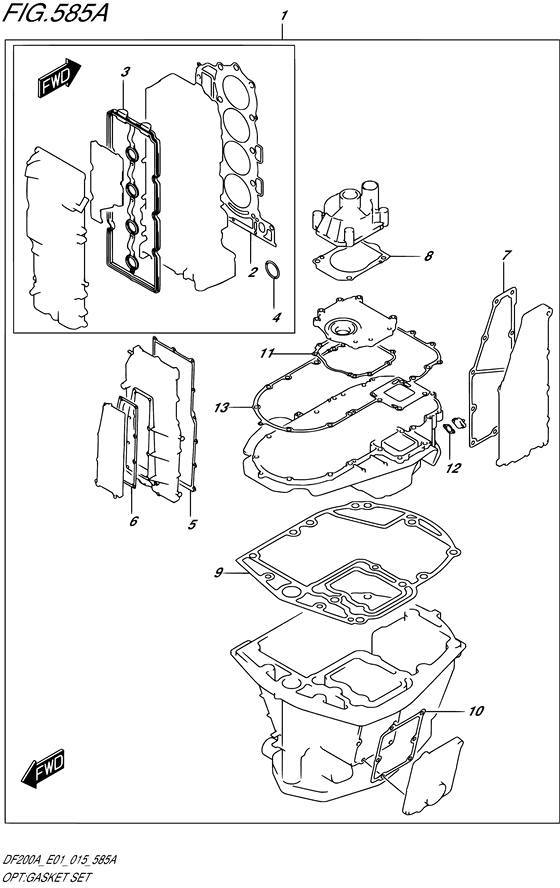

Opt:gasket set Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2015
- Model
- DF200A
- Year
- 2015
- Engine
- 20003F-510001~ (20003Z-510001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11410-96810-000
GASKET SET
|
11410-96810-000 |
— | ||
| replacement | |||||
|
1
|
1
11410-96811-000 GASKET SET |
11410-96811-000 |
US $204.44 |
||
|
2
|
2
11141-96L00-000 GASKET,CYLINDER HEAD |
11141-96L00-000 |
from US $91.98 |
||
|
3
|
3
11189-96J00-000 GASKET,CYLINDER HEAD COVER |
11189-96J00-000 |
from US $19.26 |
||
|
4
|
4
11318-96J00-000 O RING,BALANCER OIL GALL |
11318-96J00-000 |
from US $2.40 |
||
|
5
|
5
11332-96J00-000 GASKET,BALANCER COVER |
11332-96J00-000 |
US $24.80 |
||
|
6
|
6
11342-96J00-000 GASKET,BAL WTR JKT COVER |
11342-96J00-000 |
from US $8.16 |
||
|
7
|
7
14151-96J00-000 GASKET,EXHAUST COVER |
14151-96J00-000 |
from US $5.92 |
||
|
8
|
8
17472-93J00-000 GASKET,PUMP CASE PANEL |
17472-93J00-000 |
from US $4.80 |
||
|
9
|
9
11489-96J01-000 GASKET,OIL PAN |
11489-96J01-000 |
from US $27.34 |
||
|
10
|
10
11552-96J00-000 GASKET,OIL PAN WTR JKT COVER |
11552-96J00-000 |
from US $7.20 |
||
|
11
|
11
51123-96J01-000
GASKET,MOUNT OIL COVER
|
51123-96J01-000 |
— | ||
| replacement | |||||
|
11
|
11
51123-96J02-000 GASKET,MOUNT OIL COVER |
51123-96J02-000 |
US $5.60 |
||
|
12
|
12
51142-96J00-000 GASKET,ENGINE HOLDER COVER |
51142-96J00-000 |
US $1.82 |
||
|
13
|
13
51211-96J00-000 GASKET,ENGINE HOLDER |
51211-96J00-000 |
from US $63.20 |
||
