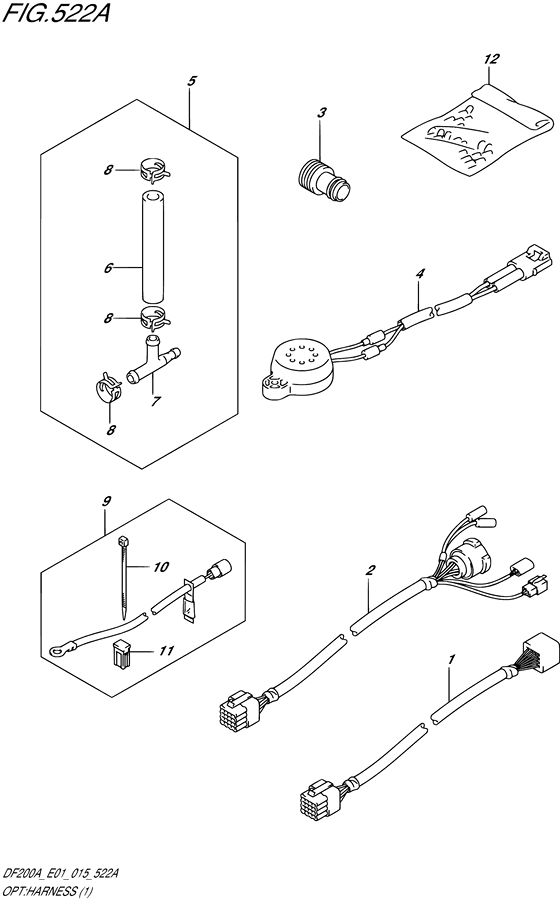

Opt:harness ((1)) Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2015
- Model
- DF200A
- Year
- 2015
- Engine
- 20003F-510001~ (20003Z-510001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36620-93J10-000
WIRE ASSY,REMOCON EXT(L:2000)
L:2000 |
36620-93J10-000 |
— | ||
| replacement | |||||
|
1
|
1
36620-93J11-000 Wire Assy,remocon Ext(L:2000)L:2000 |
36620-93J11-000 |
US $94.94 |
||
|
1
|
1
36620-93J40-000
WIRE ASSY,REMOCON EXT(L:3000)
L:3000 |
36620-93J40-000 |
— | ||
| replacement | |||||
|
1
|
1
36620-93J41-000
Wire Assy,remote Control Ext
L:3000 |
36620-93J41-000 |
— | ||
|
2
|
2
36620-93J30-000
WIRE ASSY,REMOCON(L:2000)
|
36620-93J30-000 |
— | ||
| replacement | |||||
|
2
|
2
36620-93J31-000 Wire Assy,remocon(L:2000) |
36620-93J31-000 |
US $148.80 |
||
|
3
|
3
17917-87L00-000 CONNECTOR,FLUSH WATER |
17917-87L00-000 |
US $7.58 |
||
|
4
|
4
38500-93J00-000
BUZZER ASSY,WARNING
|
38500-93J00-000 |
— | ||
| replacement | |||||
|
4
|
4
38500-93J90-000 BUZZER,WARNING |
38500-93J90-000 |
from US $28.80 |
||
|
5
|
5
34660-96J00-000
KIT,WATER PRESS GAUGE SUB
|
34660-96J00-000 |
— | ||
| replacement | |||||
|
5
|
5
34660-96J01-000 Kit,water Press Gauge Sub |
34660-96J01-000 |
US $14.94 |
||
|
6
|
6
09352-50903-600
HOSE(5X9X600)
L:600->70 |
09352-50903-600 |
— | ||
| replacement | |||||
|
6
|
6
09352-50006-600 Hose(5X9X600)L:600->70 |
09352-50006-600 |
from US $4.32 |
||
|
7
|
7
09367-06006-000 3 WAY |
09367-06006-000 |
from US $6.43 |
||
|
8
|
8
09401-08413-000 CLIP |
09401-08413-000 |
from US $1.60 |
||
|
9
|
9
33830-98J11-000 SET,BATTERY ISOLATOR LEAD |
33830-98J11-000 |
from US $89.68 |
||
|
10
|
10
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
11
|
11
09481-40401-000 FUSE(40A) |
09481-40401-000 |
from US $3.65 |
||
|
12
|
12
36990-87D00-000 TERMINAL / SLEEVE SETTerminal & sleeve set |
36990-87D00-000 |
US $12.02 |
||
