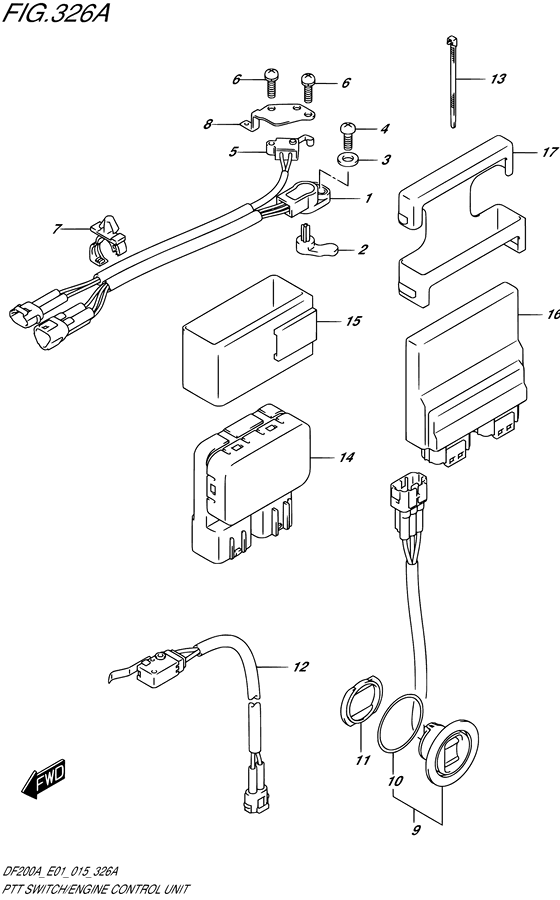

Ptt switch/engine control unit Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2015
- Model
- DF200A
- Year
- 2015
- Engine
- 20003F-510001~ (20003Z-510001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13580-93J02-000
SENSOR ASSY,SHIFT POSITION
|
13580-93J02-000 |
— | ||
| replacement | |||||
|
1
|
1
13580-93J03-000
Sensor Assy,shift Position
|
13580-93J03-000 |
— | ||
|
2
|
2
37729-93J00-000 LEVER,SHIFT SENSOR |
37729-93J00-000 |
from US $1.52 |
||
|
3
|
3
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
4
|
4
02112-35167-000 SCREWScrew, shift position sensor |
02112-35167-000 |
from US $3.59 |
||
|
5
|
5
37721-93J00-000 SWITCH ASSY,NEUTRAL |
37721-93J00-000 |
from US $20.80 |
||
|
6
|
6
09137-04004-000 SCREW(4X16) |
09137-04004-000 |
US $1.49 |
||
|
7
|
7
09403-12412-000 CLAMPClamp, sw lead wire |
09403-12412-000 |
from US $5.08 |
||
|
8
|
8
37725-96J00-000 BRACKET,SWITCH ASSY |
37725-96J00-000 |
US $2.61 |
||
|
9
|
9
37850-92J00-000 SWITCH ASSY,PTT |
37850-92J00-000 |
from US $80.80 |
||
|
10
|
10
37856-92J00-000 TAPE,PTT SWITCH |
37856-92J00-000 |
US $2.72 |
||
|
11
|
11
37857-92J00-000
BUSH,PTT SWITCH
|
37857-92J00-000 |
— | ||
| replacement | |||||
|
11
|
11
37857-92J01-000 Bush,ptt Switch |
37857-92J01-000 |
US $1.92 |
||
|
12
|
12
37722-93J11-000
SWITCH ASSY,TILT LIMIT
|
37722-93J11-000 |
— | ||
| replacements | |||||
|
12
|
12
37722-93J12-000
Switch Assy,tilt Limit
|
37722-93J12-000 |
— | ||
|
12
|
12
37722-93J13-000
Switch Assy,tilt Limit
|
37722-93J13-000 |
— | ||
|
12
|
12
37722-93J14-000 SWITCH ASSY,TILT LIMIT |
37722-93J14-000 |
from US $34.40 |
||
|
13
|
13
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
14
|
14
38410-93J20-000
RELAY ASSY,PTT
|
38410-93J20-000 |
— | ||
| replacement | |||||
|
14
|
14
38410-93J21-000 RELAY ASSY,PTT |
38410-93J21-000 |
from US $101.05 |
||
|
15
|
15
38415-93J20-000 HOLDER,PTT RELAY |
38415-93J20-000 |
US $6.04 |
||
|
16
|
16
33920-96L00-000
UNIT,ENGINE CONTROL
|
33920-96L00-000 |
— | ||
| replacements | |||||
|
16
|
16
33920-96L60-000
UNIT,ENGINE CONTROL
|
33920-96L60-000 |
— | ||
|
16
|
16
33920-96L80-000 Unit,engine Control |
33920-96L80-000 |
US $1,338.48 |
||
|
17
|
17
33925-88L10-000 CUSHION,ENGINE CONTROL UNIT |
33925-88L10-000 |
US $8.06 |
||
