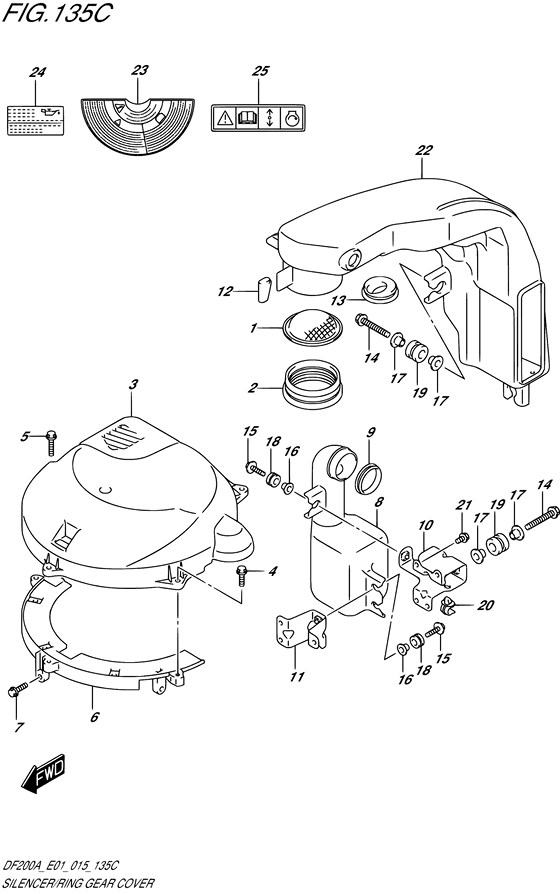

Silencer/ring gear cover ((DF200AZ E01)) Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2015
- Model
- DF200A
- Year
- 2015
- Engine
- 20003F-510001~ (20003Z-510001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13710-96J00-000 ARRESTER,FLAME |
13710-96J00-000 |
US $8.50 |
||
|
2
|
2
13813-96L00-000
HOLDER,ARRESTER
|
13813-96L00-000 |
— | ||
| replacement | |||||
|
2
|
2
13813-96L01-000 Holder,arrester |
13813-96L01-000 |
US $7.03 |
||
|
3
|
3
11510-96L00-000 COVER,RING GEAR UPPER |
11510-96L00-000 |
US $38.64 |
||
|
4
|
4
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
5
|
5
01550-06307-000 Bolt |
01550-06307-000 |
from US $0.91 |
||
|
6
|
6
11510-96J04-000 COVER,RING GEAR UNDER |
11510-96J04-000 |
US $26.40 |
||
|
7
|
7
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
8
|
8
13761-96L00-000 RESONATOR |
13761-96L00-000 |
US $44.90 |
||
|
9
|
9
13766-96L00-000 GROMMET,RESONATOR |
13766-96L00-000 |
US $3.50 |
||
|
10
|
10
13822-96L00-000
BRACKET,SILENCER
|
13822-96L00-000 |
— | ||
| replacement | |||||
|
10
|
10
13822-96L01-000 Bracket,silencer |
13822-96L01-000 |
US $23.18 |
||
|
11
|
11
13823-96L00-000 BRACKET,RESONATOR |
13823-96L00-000 |
US $12.95 |
||
|
12
|
12
13852-96L00-000
CUSHION,SILENCER
|
13852-96L00-000 |
— | ||
| replacement | |||||
|
12
|
12
13852-96L01-000 Cushion,silencer |
13852-96L01-000 |
US $3.24 |
||
|
13
|
13
13853-96L00-000 GROMMET,BREATHER HOSE |
13853-96L00-000 |
US $3.50 |
||
|
14
|
14
09103-08543-000 BOLT(8X50) |
09103-08543-000 |
from US $5.32 |
||
|
15
|
15
09116-06202-000 BOLT(6X25)Bolt (w/washer) |
09116-06202-000 |
from US $5.59 |
||
|
16
|
16
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.12 |
||
|
17
|
17
09169-08042-000 WASHERWasher (8.5x22x2) |
09169-08042-000 |
from US $5.31 |
||
|
18
|
18
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.52 |
||
|
19
|
19
09320-12072-000
CUSHION
|
09320-12072-000 |
— | ||
| replacement | |||||
|
19
|
19
09320-12094-000 Cushion,silencer Bracket |
09320-12094-000 |
US $17.70 |
||
|
20
|
20
09403-11320-000 CLAMP |
09403-11320-000 |
from US $1.52 |
||
|
21
|
21
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
22
|
22
13811-96L00-000 SILENCER |
13811-96L00-000 |
US $78.02 |
||
|
23
|
23
61472-93E40-000 LABEL,RECOIL,STARTER |
61472-93E40-000 |
US $8.35 |
||
|
24
|
24
61494-96J10-000
LABEL,OIL & CLEARANCE
|
61494-96J10-000 |
— | ||
| replacement | |||||
|
24
|
24
61494-96J11-000 Label,oil & Clearance |
61494-96J11-000 |
US $5.41 |
||
|
25
|
25
69711-93E10-000
LABEL,S.I.G.P.
|
69711-93E10-000 |
— | ||
| replacement | |||||
|
25
|
25
69711-93E11-000 Label(S.i.g.p.) |
69711-93E11-000 |
US $3.83 |
||
