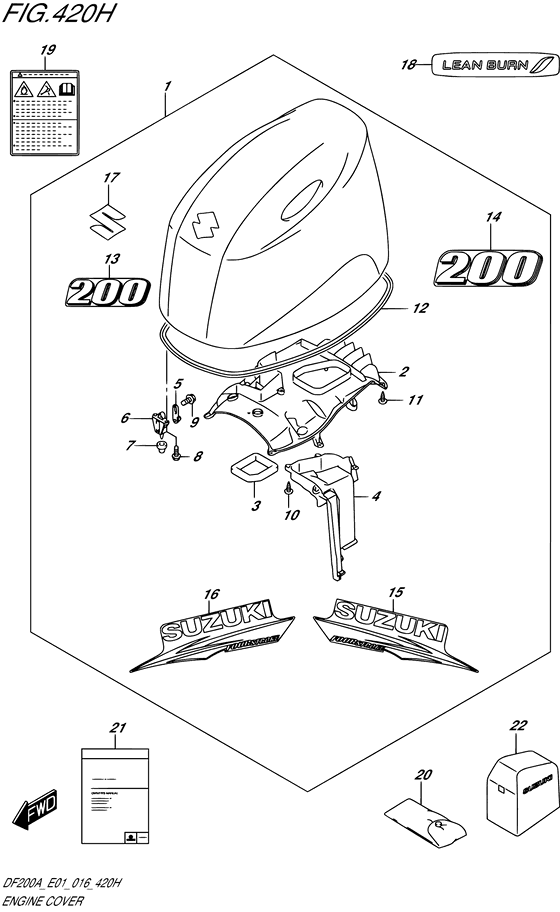

Engine cover ((FOR Y5S) (DF200AZ E40)) Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2016
- Model
- DF200A
- Year
- 2016
- Engine
- 20003F-610001~ (20003Z-610001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61420-96860-Y5S
COVER SET,ENG(DF200A/200AP)
|
61420-96860-Y5S |
— | ||
| replacements | |||||
|
1
|
1
61420-96861-Y5S
COVER SET,ENG(DF200A/200AP)
|
61420-96861-Y5S |
— | ||
|
1
|
1
61420-96862-Y5S Cover Set,eng(Df200A/200Ap)(Wh |
61420-96862-Y5S |
US $1,578.96 |
||
|
2
|
2
61433-96L00-000 COVER,AIR INTAKE INNER |
61433-96L00-000 |
US $40.85 |
||
|
3
|
3
61476-96J10-000 SEAL,AIR VENT |
61476-96J10-000 |
US $6.51 |
||
|
4
|
4
61565-96L00-000 DUCT,AIR INTAKE |
61565-96L00-000 |
US $27.97 |
||
|
5
|
5
61610-93J00-000 FASTENER |
61610-93J00-000 |
US $12.18 |
||
|
6
|
6
61621-93J00-000
BRACKET,FASTENER
|
61621-93J00-000 |
— | ||
| replacement | |||||
|
6
|
6
61621-93J01-000 BRACKET,FASTENER |
61621-93J01-000 |
US $15.20 |
||
|
7
|
7
09329-10022-000
CUSHION
|
09329-10022-000 |
— | ||
| replacement | |||||
|
7
|
7
09329-10024-000 CUSHION,ENGINE COVER FASTENER |
09329-10024-000 |
from US $3.02 |
||
|
8
|
8
01547-06167-000 BoltBolt, fastener bracket |
01547-06167-000 |
from US $0.96 |
||
|
9
|
9
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
10
|
10
03542-05169-000 SCREWScrew, air intk guide no.1 |
03542-05169-000 |
from US $0.77 |
||
|
11
|
11
03542-05169-000 SCREWScrew, air intk guide no.1 |
03542-05169-000 |
from US $0.77 |
||
|
12
|
12
61112-96L00-000 SEAL,ENGINE COVER |
61112-96L00-000 |
US $38.64 |
||
|
13
|
13
61422-93J90-000 MARK,EMBLEM FRONT(200) |
61422-93J90-000 |
US $51.15 |
||
|
14
|
14
61435-96L10-000 MARK,EMBLEM REAR(200) |
61435-96L10-000 |
US $17.88 |
||
|
15
|
15
61443-96J30-000 STRIPE,ENG COVER STBD |
61443-96J30-000 |
US $68.08 |
||
|
16
|
16
61453-96J30-000 STRIPE,ENG COVER PORT |
61453-96J30-000 |
US $68.08 |
||
|
17
|
17
77811-54GC0-0PG EMBLEM,MARK S |
77811-54GC0-0PG |
from US $14.45 |
||
|
18
|
18
61471-98J00-000 DECAL,LEAN BURN |
61471-98J00-000 |
US $8.83 |
||
|
19
|
19
61458-90J00-000
LABEL,ENGINE COVER
|
61458-90J00-000 |
— | ||
| replacement | |||||
|
19
|
19
61458-90J01-000
Label,engine Cover
|
61458-90J01-000 |
— | ||
|
20
|
20
09800-81840-000
TOOL SET
|
09800-81840-000 |
— | ||
| replacement | |||||
|
20
|
20
09800-81841-000 TOOL SET |
09800-81841-000 |
US $34.59 |
||
|
21
|
21
99011-96L20-059 MANUAL,OWNER'S |
99011-96L20-059 |
US $15.46 |
||
|
22
|
22
68110-98J00-000
COVER,WEATHER
OPT |
68110-98J00-000 |
— | ||
| replacements | |||||
|
22
|
22
68110-98J01-000
COVER,WEATHER
OPT |
68110-98J01-000 |
— | ||
|
22
|
22
99000-81740-000 Cover Comp,weatherOPT |
99000-81740-000 |
US $191.36 |
||
