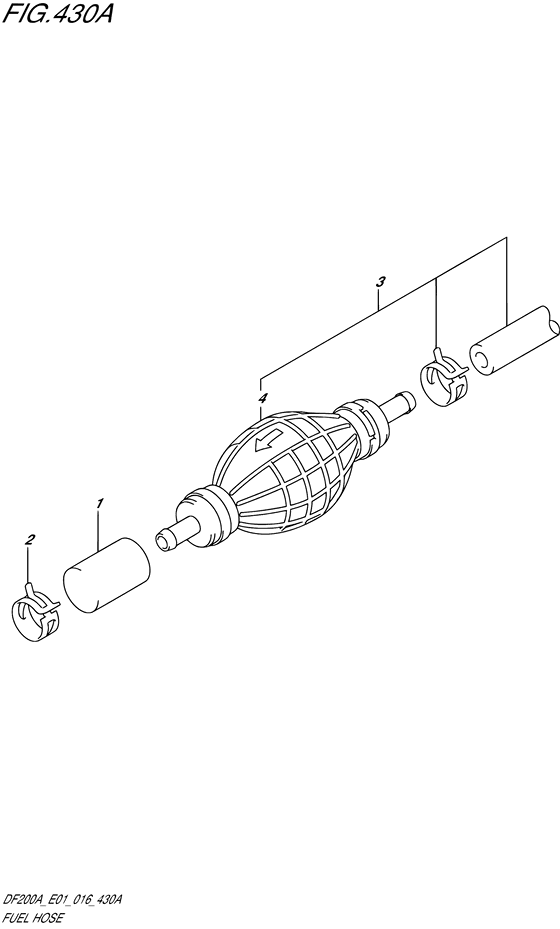

Fuel hose Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2016
- Model
- DF200A
- Year
- 2016
- Engine
- 20003F-610001~ (20003Z-610001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09251-09005-000
PLUG
|
09251-09005-000 |
— | ||
| replacement | |||||
|
1
|
1
09251-09009-000 Plug |
09251-09009-000 |
from US $5.36 |
||
|
2
|
2
09401-13423-000 CLIP |
09401-13423-000 |
from US $1.52 |
||
|
3
|
3
65700-93J10-000
HOSE COMP,FUEL(TANK TO ENGINE)
|
65700-93J10-000 |
— | ||
| replacements | |||||
|
3
|
3
65700-93J11-000
HOSE,FUEL(TANK TO ENGINE)
|
65700-93J11-000 |
— | ||
|
3
|
3
65700-93J12-000
Hose Comp,fuel(Tank To Conn)
|
65700-93J12-000 |
— | ||
|
3
|
3
65700-93J13-000
Hose Comp,fuel(Tank To Conn)
|
65700-93J13-000 |
— | ||
|
3
|
3
09401-14409-000 CLIP |
09401-14409-000 |
from US $1.91 |
||
|
3
|
3
65700-93J14-000 Hose,fuel(Tank To Conn) |
65700-93J14-000 |
from US $88.32 |
||
|
4
|
4
65770-93J11-000
PUMP,SQUEEZE
|
65770-93J11-000 |
— | ||
| replacements | |||||
|
4
|
4
65770-93J12-000
PUMP COMP,SQUEEZE
|
65770-93J12-000 |
— | ||
|
4
|
4
65770-93J13-000 Pump Comp,squeeze |
65770-93J13-000 |
from US $36.36 |
||
