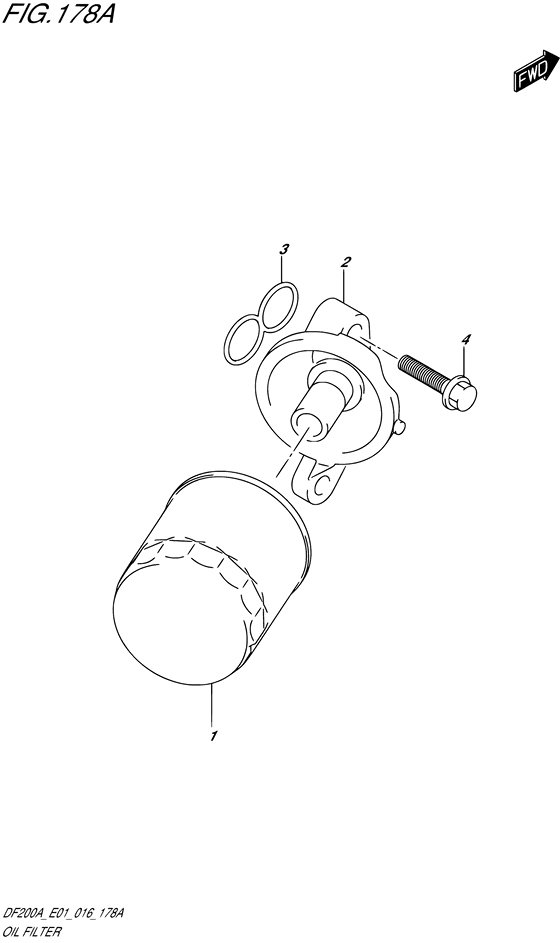

Oil filter Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2016
- Model
- DF200A
- Year
- 2016
- Engine
- 20003F-610001~ (20003Z-610001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16510-96J00-000
FILTER ASSY,OIL
|
16510-96J00-000 |
— | ||
| replacement | |||||
|
1
|
1
16510-96J11-000 FILTER ASSY OIL |
16510-96J11-000 |
from US $15.82 |
||
|
2
|
2
16540-96J00-000 STAND,OIL FILTER |
16540-96J00-000 |
US $69.18 |
||
|
3
|
3
16543-96J00-000 O RING,OIL FILTER STAND |
16543-96J00-000 |
US $4.48 |
||
|
4
|
4
01550-08357-000 Bolt |
01550-08357-000 |
from US $1.06 |
||
