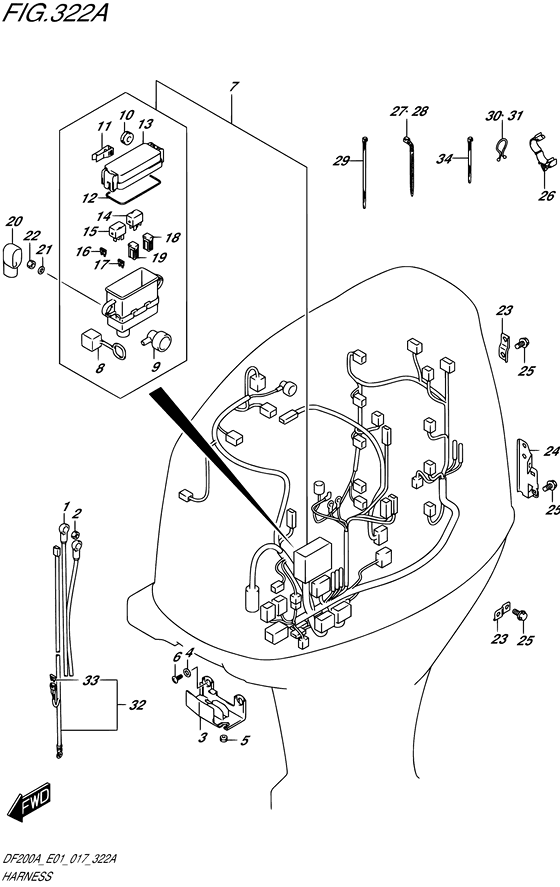

Harness Diagram Suzuki DF200A (Z/T)L/X
- Year
- 2017
- Model
- DF200A
- Year
- 2017
- Engine
- 20003F-710001~ (20003Z-710001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 200
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Pearl Nebular Black; Cool White (YAY; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33810-96L00-000
CABLE ASSY,STARTER MOTOR
|
33810-96L00-000 |
— | ||
| replacement | |||||
|
1
|
1
33810-96L01-000 Cable Assy,starter Motor |
33810-96L01-000 |
US $307.04 |
||
|
2
|
2
08316-10087-000 NUT |
08316-10087-000 |
from US $0.80 |
||
|
3
|
3
36616-96J00-000 HOLDER,CABLE |
36616-96J00-000 |
US $4.64 |
||
|
4
|
4
09169-06053-000 WASHER |
09169-06053-000 |
from US $0.91 |
||
|
5
|
5
09320-04009-000
BUSH
|
09320-04009-000 |
— | ||
| replacement | |||||
|
5
|
5
09320-04013-000 Cushion,muf Cov |
09320-04013-000 |
from US $2.52 |
||
|
6
|
6
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.32 |
||
|
7
|
7
36610-96L20-000
HARNESS ASSY,WIRING
|
36610-96L20-000 |
— | ||
| replacement | |||||
|
7
|
7
36610-96L21-000
Harness Assy,wiring
|
36610-96L21-000 |
— | ||
|
8
|
8
33634-96J00-000 CAP,SERVICE CONNECTOR |
33634-96J00-000 |
US $4.64 |
||
|
9
|
9
36618-43410-000 CAP,OIL PRESSURE SWITCH |
36618-43410-000 |
from US $1.82 |
||
|
10
|
10
09320-08021-000
CUSHION
|
09320-08021-000 |
— | ||
| replacement | |||||
|
10
|
10
09320-08510-000 Cushion(8.5X20X8) |
09320-08510-000 |
from US $1.82 |
||
|
11
|
11
36737-96J00-000 PULLER,FUSE |
36737-96J00-000 |
US $3.64 |
||
|
12
|
12
36721-96J00-000 O RING,UPR COVERO ring, upper cover |
36721-96J00-000 |
US $8.35 |
||
|
13
|
13
36738-96J00-000 COVER,FUSE CASE UPR |
36738-96J00-000 |
US $12.70 |
||
|
14
|
14
38860-76F01-000 RELAY ASSYRelay, starting motor FOR MAIN |
38860-76F01-000 |
from US $28.80 |
||
|
15
|
15
38860-76F01-000 RELAY ASSYRelay, starting motor FOR STARTER |
38860-76F01-000 |
from US $28.80 |
||
|
16
|
16
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.01 |
||
|
17
|
17
09481-30501-000 FUSE(30A) |
09481-30501-000 |
from US $1.08 |
||
|
18
|
18
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $7.20 |
||
|
19
|
19
09481-60401-000 FUSE(60A) |
09481-60401-000 |
from US $4.34 |
||
|
20
|
20
36612-96J00-000 CAP,TERMINAL |
36612-96J00-000 |
US $4.64 |
||
|
21
|
21
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
22
|
22
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
23
|
23
36617-93J00-000 BRACKET,HARNESS |
36617-93J00-000 |
US $1.44 |
||
|
24
|
24
36617-96J00-000 BRACKET,HARNESS |
36617-96J00-000 |
US $6.70 |
||
|
25
|
25
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
26
|
26
09403-18409-000 CLAMP |
09403-18409-000 |
from US $3.03 |
||
|
27
|
27
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $0.77 |
||
|
28
|
28
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $1.08 |
||
|
29
|
29
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
30
|
30
09408-00008-000 CLIP(ID:20)Clamp, vacuum hose |
09408-00008-000 |
from US $3.37 |
||
|
31
|
31
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
32
|
32
36625-93J00-000 LEAD,BATTERYL:3900 |
36625-93J00-000 |
US $42.56 |
||
| replacement | |||||
|
32
|
32
36625-93J01-000 Lead,batteryL:3900 |
36625-93J01-000 |
from US $42.56 |
||
|
32
|
32
36625-93J10-000 LEAD,BATTERYOPT L:6700 |
36625-93J10-000 |
US $52.80 |
||
|
33
|
33
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $1.28 |
||
|
34
|
34
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
