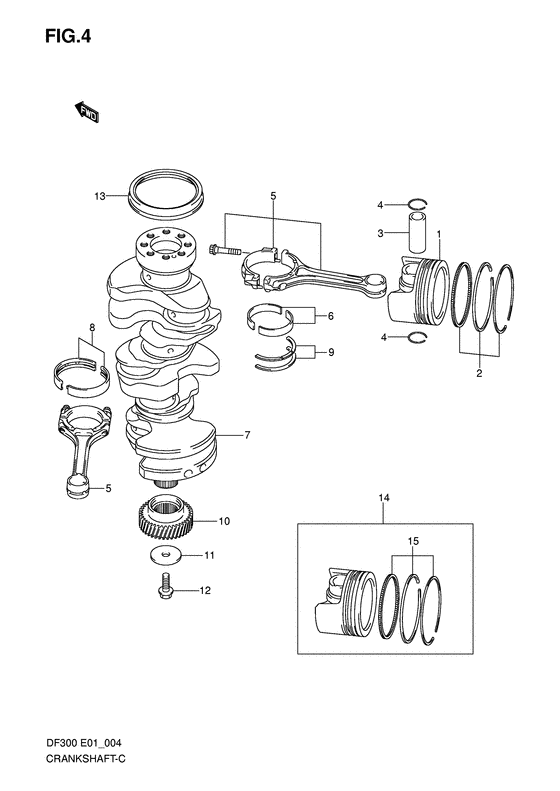

Crankshaft Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-98J00-0B0 PISTON |
12111-98J00-0B0 |
from US $124.92 |
||
|
2
|
2
12140-98J00-000 RING SET,PISTON |
12140-98J00-000 |
from US $63.09 |
||
|
3
|
3
12151-02F00-000 PIN,PISTON |
12151-02F00-000 |
from US $15.84 |
||
|
4
|
4
09381-22010-000 CIRCLIP |
09381-22010-000 |
from US $0.93 |
||
|
5
|
5
12160-98J00-000 CONNECTING ROD ASSY |
12160-98J00-000 |
from US $132.24 |
||
|
6
|
6
12100-98810-0A0 BEARING SET,CONNECTING ROD (GREEN), STDBearing set, connrod (green); |
12100-98810-0A0 |
from US $19.20 |
||
|
6
|
6
12100-98810-025 BEARING SET,CONNROD US(0.25)Bearing set, connrod (us:0.25); Opt |
12100-98810-025 |
from US $33.44 |
||
|
7
|
7
12220-98J00-000 CRANKSHAFT |
12220-98J00-000 |
from US $1,793.60 |
||
|
8
|
8
12340-98J00-0A0 BEARING SUB SET,CRANKSHAFT (BLACK), STDBearing set, crankshaft (black); |
12340-98J00-0A0 |
from US $37.90 |
||
|
8
|
8
12340-98J00-0B0 BEARING SUB SET,CRANKSHAFT (NO COLOR), STDBearing set, crankshaft (non); |
12340-98J00-0B0 |
from US $33.60 |
||
|
8
|
8
12340-98J00-0C0 BEARING SUB SET,CRANKSHAFT (YELLOW), STDBearing set, crankshaft (yellow); |
12340-98J00-0C0 |
from US $33.60 |
||
|
8
|
8
12340-98J00-0D0 BEARING SUB SET,CRANKSHAFT (BLUE), STDBearing set, crankshaft (bule); |
12340-98J00-0D0 |
from US $33.60 |
||
|
8
|
8
12340-98J00-0E0 BEARING SUB SET,CRANKSHAFT (PINK), STDBearing set, crankshaft (pink); |
12340-98J00-0E0 |
from US $37.90 |
||
|
8
|
8
12300-98810-0AA BEARING SET,CRANKSHAFT(US 0.25), RED/BLACKBearing set, crankshaft (red/black) Bearing set, crankshaft (red/black); Us:0.25 |
12300-98810-0AA |
US $37.90 |
||
|
8
|
8
12300-98810-0BA BEARING SET,CRANKSHAFT(US 0.25), REDBearing set, crankshaft (red); Us:0.25 |
12300-98810-0BA |
from US $37.90 |
||
|
8
|
8
12300-98810-0CA BEARING SET,CRANKSHAFT(US 0.25), RED/YELLOWBearing set, crankshaft (red/yellow) Bearing set, crankshaft (red/yellow); Us:0.25 |
12300-98810-0CA |
US $37.90 |
||
|
8
|
8
12300-98810-0DA BEARING SET,CRANKSHAFT(US 0.25), RED/BLUEBearing set, crankshaft (red/blue) Bearing set, crankshaft (red/blue); Us:0.25 |
12300-98810-0DA |
US $37.90 |
||
|
8
|
8
12300-98810-0EA BEARING SET,CRANKSHAFT(US 0.25), RED/PINKBearing set, crankshaft (red/pink) Bearing set, crankshaft (red/pink); Us:0.25 |
12300-98810-0EA |
US $37.90 |
||
|
9
|
9
12300-98821-000 BEARING SET,CRANK THRUST (STD) |
12300-98821-000 |
from US $28.80 |
||
|
9
|
9
12300-98821-012 BEARING SET,CRANK THRUST (OS 0.12 mm)Os:0.12 |
12300-98821-012 |
from US $20.79 |
||
|
10
|
10
12242-98J00-000 GEAR,DRIVE |
12242-98J00-000 |
US $130.64 |
||
|
11
|
11
09160-10104-000 WASHER(10.5X50X3.2) |
09160-10104-000 |
from US $3.80 |
||
|
12
|
12
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
13
|
13
09283-91001-000 SEAL,OIL(91X109X10)Seal, oil (91x109x10) Seal, oil; |
09283-91001-000 |
from US $24.09 |
||
|
14
|
14
12100-98J00-050 PISTON SET(OS:0.5)Piston set (os:0.50); Opt |
12100-98J00-050 |
from US $187.20 |
||
|
15
|
15
12140-98J00-050 RING SET,PISTON(OS:0.50)Ring set, piston (os:0.50); Opt |
12140-98J00-050 |
from US $58.14 |
