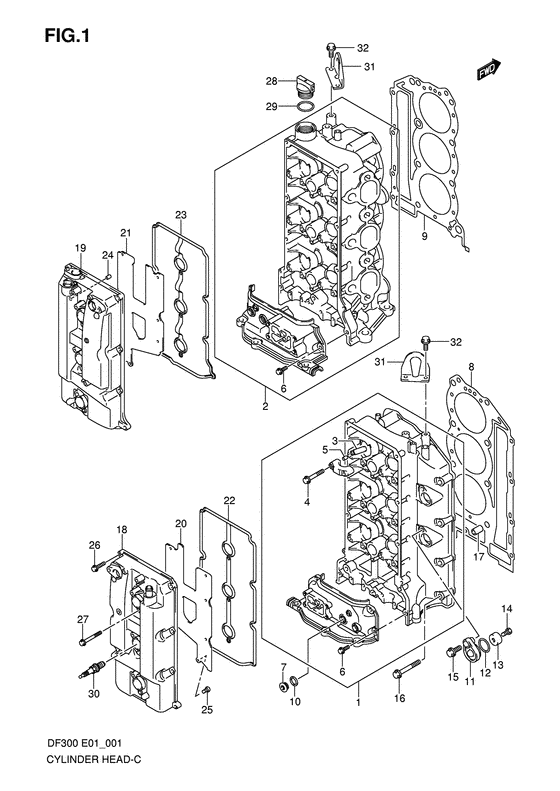

Cylinder head Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11101-98J01-000
Head assy,cylinder stbd
|
11101-98J01-000 |
— | ||
| replacements | |||||
|
1
|
1
11101-98J03-000 HEAD ASSY,CYLINDER STBD |
11101-98J03-000 |
US $1,521 |
||
|
1
|
1
11101-98J04-000 Head Assy,cylinder Stbd |
11101-98J04-000 |
US $1,521 |
||
|
2
|
2
11103-98J01-000
Head assy,cylinder port
|
11103-98J01-000 |
— | ||
| replacements | |||||
|
2
|
2
11103-98J03-000 HEAD ASSY,CYLINDER PORT |
11103-98J03-000 |
US $1,521 |
||
|
2
|
2
11103-98J04-000
Head Assy,cylinder Port
|
11103-98J04-000 |
— | ||
|
3
|
3
11115-93J00-001
Guide, valve
|
11115-93J00-001 |
— | ||
| replacement | |||||
|
3
|
3
11115-93J10-001 GUIDE,VALVE(OS) |
11115-93J10-001 |
from US $17.60 |
||
|
4
|
4
11128-90J00-000 BOLT,CAMSHAFT HOUSING(6X39) |
11128-90J00-000 |
from US $1.52 |
||
|
5
|
5
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
6
|
6
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
7
|
7
11116-93J01-000 PLUG |
11116-93J01-000 |
US $2.43 |
||
|
8
|
8
11141-98J01-000
Gasket,cylinder head stbd
|
11141-98J01-000 |
— | ||
| replacement | |||||
|
8
|
8
11141-98J10-000 GASKET,CYLINDER HEAD STBD |
11141-98J10-000 |
from US $72.80 |
||
|
8
|
8
11141-98J10-000 GASKET,CYLINDER HEAD STBDModel:10~ |
11141-98J10-000 |
from US $72.80 |
||
|
9
|
9
11142-98J01-000
Gasket,cylinder head port
|
11142-98J01-000 |
— | ||
| replacement | |||||
|
9
|
9
11142-98J10-000 GASKET,CYLINDER HEAD PORT |
11142-98J10-000 |
from US $64.80 |
||
|
9
|
9
11142-98J10-000 GASKET,CYLINDER HEAD PORTModel:10~ |
11142-98J10-000 |
from US $64.80 |
||
|
10
|
10
09168-16009-000 GASKET(16X22X0.8) |
09168-16009-000 |
from US $1.52 |
||
|
11
|
11
11261-93J00-000 COVER,PROTECTION ANODE |
11261-93J00-000 |
from US $14.40 |
||
|
12
|
12
09280-22019-000 O RING(D:1.9,ID:21.8) |
09280-22019-000 |
from US $1.49 |
||
|
13
|
13
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
13
|
13
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.58 |
||
|
14
|
14
09103-06281-000 BOLT(6X14)Bolt, protection anode Bolt, protection anode; |
09103-06281-000 |
from US $1.44 |
||
|
15
|
15
01550-08207-000 Bolt |
01550-08207-000 |
from US $1.12 |
||
|
16
|
16
01550-08607-000 BoltBolt, throttle body Bolt, cyl head stbd; |
01550-08607-000 |
from US $6.02 |
||
|
17
|
17
09206-14004-000 PIN(14X11.4X23) |
09206-14004-000 |
from US $3.80 |
||
|
18
|
18
11170-93J01-000 COVER,CYLINDER HEAD STBD |
11170-93J01-000 |
US $228.16 |
||
|
19
|
19
11180-98J01-000 COVER,CYLINDER HEAD PORT |
11180-98J01-000 |
US $228.16 |
||
|
20
|
20
11173-93J00-000 PLATE,BREATHER STBD |
11173-93J00-000 |
US $5.81 |
||
|
21
|
21
11183-93J00-000 PLATE,BREATHER PORT |
11183-93J00-000 |
US $5.81 |
||
|
22
|
22
11179-93J00-000 GASKET,CYL HEAD COVER STBD |
11179-93J00-000 |
from US $20.74 |
||
|
23
|
23
11189-93J00-000 GASKET,CYL HEAD COVER PORT |
11189-93J00-000 |
from US $20.84 |
||
|
24
|
24
09206-08001-000 PIN(8X11)Pin, cyl head cover port; |
09206-08001-000 |
from US $1.53 |
||
|
25
|
25
02112-0612A-000 SCREWScrew, breather plate; |
02112-0612A-000 |
from US $0.76 |
||
|
26
|
26
01547-06257-000 BoltBolt, cyl head cover no.1; |
01547-06257-000 |
from US $1.12 |
||
|
27
|
27
01547-06507-000 BoltBolt, cyl head cover no.2 Bolt, cyl head cover no.2; |
01547-06507-000 |
from US $0.96 |
||
|
28
|
28
11382-93J00-000 Cap,oil filler |
11382-93J00-000 |
from US $3.74 |
||
|
29
|
29
09280-26006-000 O RING(D:3.1,ID:26.4)O ring, oil filler cap; |
09280-26006-000 |
from US $2.08 |
||
|
30
|
30
09482-00427-000 SPARK PLUG (NGK BKR6E)BKR6E Spark plug (bkr6e); |
09482-00427-000 |
from US $5.29 |
||
|
31
|
31
11291-93J00-000 HOOK,ENGINE |
11291-93J00-000 |
US $8.32 |
||
|
32
|
32
01550-08207-000 BoltBolt, engine hook; |
01550-08207-000 |
from US $1.12 |
||
