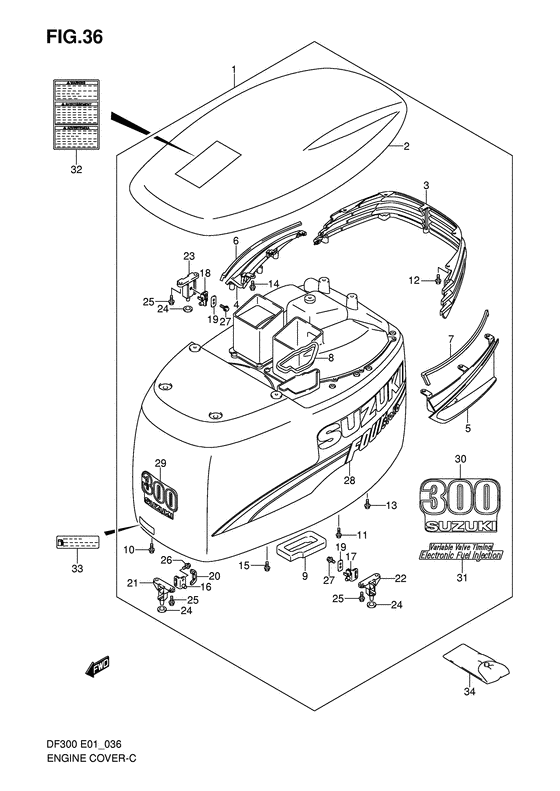

Engine cover (Model: 07~09) Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61400-98Y31-0EP
Cover set, engine
Cover set, engine (black); |
61400-98Y31-0EP |
— | ||
| replacements | |||||
|
1
|
1
61400-98Y80-0EP
COVER SET,ENGINE
Cover set, engine (black); |
61400-98Y80-0EP |
— | ||
|
1
|
1
61400-98Y81-0EP Cover Set,engineCover set, engine (black); |
61400-98Y81-0EP |
US $2,057.12 |
||
|
1
|
1
61400-98Y32-0EP
Cover set, engine
Cover set, engine (black); Df300t:980307~, df300z:980108~ |
61400-98Y32-0EP |
— | ||
| replacements | |||||
|
1
|
1
61400-98Y80-0EP
COVER SET,ENGINE
Cover set, engine (black); Df300t:980307~, df300z:980108~ |
61400-98Y80-0EP |
— | ||
|
1
|
1
61400-98Y81-0EP Cover Set,engineCover set, engine (black); Df300t:980307~, df300z:980108~ |
61400-98Y81-0EP |
US $2,057.12 |
||
|
1
|
1
61400-98Y33-0EP
Cover set,engine
Cover set, engine (black); Df300t:980538~, df300z:980192~ |
61400-98Y33-0EP |
— | ||
| replacements | |||||
|
1
|
1
61400-98Y80-0EP
COVER SET,ENGINE
Cover set, engine (black); Df300t:980538~, df300z:980192~ |
61400-98Y80-0EP |
— | ||
|
1
|
1
61400-98Y81-0EP Cover Set,engineCover set, engine (black); Df300t:980538~, df300z:980192~ |
61400-98Y81-0EP |
US $2,057.12 |
||
|
2
|
2
61431-98J01-0EP
Cover,engine top
|
61431-98J01-0EP |
— | ||
| replacement | |||||
|
2
|
2
61431-98J10-0EP COVER,ENGINE TOP |
61431-98J10-0EP |
US $411.84 |
||
|
3
|
3
61432-98J00-000
Louver, air intake
|
61432-98J00-000 |
— | ||
| replacements | |||||
|
3
|
3
03542-06169-000 SCREW |
03542-06169-000 |
from US $0.77 |
||
|
3
|
3
61432-98J01-000 LOUVER,AIR INTAKE |
61432-98J01-000 |
US $51.20 |
||
|
3
|
3
61432-98J01-000 LOUVER,AIR INTAKEDf300t:980307~, df300z:980108~ |
61432-98J01-000 |
US $51.20 |
||
|
4
|
4
61433-98J00-000
Grip, upper cover stbd
|
61433-98J00-000 |
— | ||
| replacements | |||||
|
4
|
4
03542-06169-000 SCREW |
03542-06169-000 |
from US $0.77 |
||
|
4
|
4
61433-98J01-000 GRIP,ENGINE UPR COVER STBD |
61433-98J01-000 |
US $46.37 |
||
|
4
|
4
61433-98J01-000 GRIP,ENGINE UPR COVER STBDDf300t:980307~, df300z:980108~ |
61433-98J01-000 |
US $46.37 |
||
|
5
|
5
61434-98J00-000
Grip, upper cover port
|
61434-98J00-000 |
— | ||
| replacements | |||||
|
5
|
5
03542-06169-000 SCREW |
03542-06169-000 |
from US $0.77 |
||
|
5
|
5
61434-98J02-000 GRIP,ENGINE UPR COVER PORT |
61434-98J02-000 |
US $46.37 |
||
|
5
|
5
61434-98J01-000
Grip,engine upper cover port
Df300t:980307~, df300z:980108~ |
61434-98J01-000 |
— | ||
| replacement | |||||
|
5
|
5
61434-98J02-000 GRIP,ENGINE UPR COVER PORTDf300t:980307~, df300z:980108~ |
61434-98J02-000 |
US $46.37 |
||
|
6
|
6
61439-98J00-000
SEAL,GRIP STBD
|
61439-98J00-000 |
— | ||
| replacement | |||||
|
6
|
6
61439-98J01-000 Seal,grip Stbd |
61439-98J01-000 |
US $10.19 |
||
|
7
|
7
61439-98J10-000
SEAL,GRIP PORT
|
61439-98J10-000 |
— | ||
| replacement | |||||
|
7
|
7
61439-98J11-000 Seal,grip Port |
61439-98J11-000 |
US $10.19 |
||
|
8
|
8
61439-98J20-000
Seal, air vent no.2
|
61439-98J20-000 |
— | ||
| replacement | |||||
|
8
|
8
61439-98J21-000 SEAL,AIR VENT NO.2 |
61439-98J21-000 |
US $10.19 |
||
|
9
|
9
61476-98J00-000 SEAL,AIR VENT NO.1 |
61476-98J00-000 |
US $4.12 |
||
|
10
|
10
01550-06167-000 BoltBolt, engine cover top; |
01550-06167-000 |
from US $0.68 |
||
|
11
|
11
01550-06207-000 BoltBolt, engine cover; |
01550-06207-000 |
from US $0.96 |
||
|
12
|
12
01550-06167-000 BoltBolt, louver upper; |
01550-06167-000 |
from US $0.68 |
||
|
13
|
13
01550-06167-000 BoltBolt, louver lower; |
01550-06167-000 |
from US $0.68 |
||
|
13
|
13
03542-06169-000 SCREWScrew, louver lower; Df300t:980307~, df300z:980108~ |
03542-06169-000 |
from US $0.77 |
||
|
14
|
14
01550-06167-000 BoltBolt, handle upper; |
01550-06167-000 |
from US $0.68 |
||
|
15
|
15
01550-06167-000 BoltBolt, handle lower; |
01550-06167-000 |
from US $0.68 |
||
|
15
|
15
03542-06169-000 SCREWScrew, handle lower; Df300t:980307~, df300z:980108~ |
03542-06169-000 |
from US $0.77 |
||
|
16
|
16
61610-98J00-000 FASTENER,FRFastener (front); |
61610-98J00-000 |
from US $14.94 |
||
|
17
|
17
61610-98J10-000 FASTENER,PORTFastener (port); |
61610-98J10-000 |
US $53.73 |
||
|
17
|
17
61610-98J30-000 FASTENER,PORTFastener (port); Df300t:980538~, df300z:980192~ |
61610-98J30-000 |
from US $40.48 |
||
|
18
|
18
61610-98J20-000
FASTENER,STBD
Fastener (stbd); |
61610-98J20-000 |
— | ||
|
18
|
18
61610-98J40-000 FASTENER,STBDFastener (stbd); Df300t:980538~, df300z:980192~ |
61610-98J40-000 |
US $40.48 |
||
|
19
|
19
61616-98J00-000
PLATE
Df300t:~980537, df300z:~980191 |
61616-98J00-000 |
— | ||
|
20
|
20
61614-98J00-000 PROTECTOR,FASTENER |
61614-98J00-000 |
from US $4.86 |
||
|
21
|
21
61621-98J01-000
BRACKET,FASTENER FR
|
61621-98J01-000 |
— | ||
| replacement | |||||
|
21
|
21
61621-98J02-000 BRACKET,FASTENER FRONT |
61621-98J02-000 |
from US $18.95 |
||
|
22
|
22
61624-98J01-000
BRACKET,FASTENER PORT
|
61624-98J01-000 |
— | ||
|
22
|
22
61624-98J10-000
BRACKET,FASTENER PORT
Df300t:980538~, df300z:980192~ |
61624-98J10-000 |
— | ||
| replacement | |||||
|
22
|
22
61624-98J11-000 BRACKET,FASTENER PORTDf300t:980538~, df300z:980192~ |
61624-98J11-000 |
from US $18.95 |
||
|
23
|
23
61625-98J01-000
BRACKET,FASTENER STBD
|
61625-98J01-000 |
— | ||
|
23
|
23
61625-98J10-000
Bracket,fastener stbd
Df300t:980538~, df300z:980192~ |
61625-98J10-000 |
— | ||
| replacement | |||||
|
23
|
23
61625-98J11-000 BRACKET,FASTENER STBDDf300t:980538~, df300z:980192~ |
61625-98J11-000 |
US $18.95 |
||
|
24
|
24
61619-98J00-000 CUSHION,ENG COVER FASTENER |
61619-98J00-000 |
from US $3.75 |
||
|
25
|
25
01547-06167-000 BoltBolt, fastener bracket Bolt, fastener bracket; |
01547-06167-000 |
from US $0.96 |
||
|
26
|
26
01550-06127-000 BoltBolt, rect Bolt, eng cov fastener; |
01550-06127-000 |
from US $0.68 |
||
|
27
|
27
01547-06167-000 BoltBolt, fastener bracket Bolt, eng cov fastener; |
01547-06167-000 |
from US $0.96 |
||
|
27
|
27
01550-06127-000 BoltBolt, rect Bolt, eng cov fastener; Df300t:980538~, df300z:980192~ |
01550-06127-000 |
from US $0.68 |
||
|
28
|
28
61443-98J00-000
STRIPE,ENG COVER STBD
|
61443-98J00-000 |
— | ||
| replacement | |||||
|
28
|
28
61443-98J01-000 Stripe,eng Cover Stbd |
61443-98J01-000 |
US $142.42 |
||
|
28
|
28
61453-98J00-000
STRIPE,ENG COVER PORT
|
61453-98J00-000 |
— | ||
| replacement | |||||
|
28
|
28
61453-98J01-000 Stripe,eng Cover Port |
61453-98J01-000 |
US $142.42 |
||
|
29
|
29
61422-98J00-000
MARK,EMBLEM FR(300)
Mark, emblem front (300); |
61422-98J00-000 |
— | ||
| replacement | |||||
|
29
|
29
61422-98J01-000 Mark,emblem Fr(250)Mark, emblem front (300); |
61422-98J01-000 |
US $82.06 |
||
|
30
|
30
61435-98J00-000
MARK,EMBLEM RR(300)
Mark, emblem rear (300); |
61435-98J00-000 |
— | ||
| replacement | |||||
|
30
|
30
61435-98J01-000 Mark,emblem Rr(300)Mark, emblem rear (300); |
61435-98J01-000 |
US $90.16 |
||
|
31
|
31
61446-93J13-000
DECAL,EFI/VVT
|
61446-93J13-000 |
— | ||
| replacement | |||||
|
31
|
31
61446-93J14-000 Decal,efi/vvt |
61446-93J14-000 |
US $45.63 |
||
|
32
|
32
61458-99E31-000
LABEL,ENGINE COVER
|
61458-99E31-000 |
— | ||
|
33
|
33
69716-99E13-000
LABEL,FUEL LIMITATION
|
69716-99E13-000 |
— | ||
| replacement | |||||
|
33
|
33
69716-99E14-000
Label,fuel Limitation
|
69716-99E14-000 |
— | ||
|
34
|
34
09800-81834-000
TOOL SET
|
09800-81834-000 |
— | ||
| replacement | |||||
|
34
|
34
09800-81835-000 TOOL SET |
09800-81835-000 |
from US $35.88 |
||
