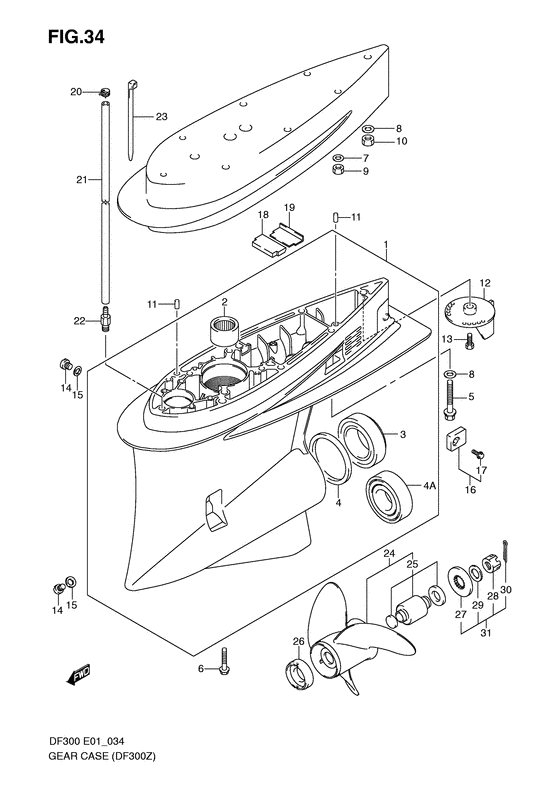

Gear case (Df300z) Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55110-98J21-0EP CASE,GEARCase, gear (black); |
55110-98J21-0EP |
US $2,077.76 |
||
|
2
|
2
09263-36004-000 BEARING(36X51X32)Bearing, pinion (36x51x32); |
09263-36004-000 |
from US $120.80 |
||
|
3
|
3
08113-62100-000 BEARINGDf300z:~880395, |
08113-62100-000 |
US $27.36 |
||
|
4
|
4
56141-98J00-000
Spacer, rev gear
Df300z:~880395, |
56141-98J00-000 |
— | ||
| replacement | |||||
|
4
|
4
09267-50001-000 BEARING(50X90X30.2)Df300z:~880395, |
09267-50001-000 |
US $138.74 |
||
|
4A
|
4A
09267-50001-000 BEARING(50X90X30.2)Df300z:880396~ |
09267-50001-000 |
US $138.74 |
||
|
5
|
5
09100-12052-000 BOLT(12X70)Bolt, gear case (12x70) Bolt (12x70); Type:x |
09100-12052-000 |
from US $10.60 |
||
|
6
|
6
09116-10150-000 BOLT(10X55)Bolt (10x55); Type:x |
09116-10150-000 |
from US $6.88 |
||
|
7
|
7
09160-10141-000 WASHER(10.5X19X2)Washer, drive shaft hsg stud (10.5x19x2) Washer (10.5x19x2); Type:xx |
09160-10141-000 |
from US $1.64 |
||
|
8
|
8
09160-12066-000 WASHER(12.5X22X2.5)Washer (12.5x22x2.5) Washer (12.5x22x2.5); |
09160-12066-000 |
from US $1.22 |
||
|
9
|
9
29141-93J20-000
NUT
Nut, extension bolt no.1 (10x14); Type:xx |
29141-93J20-000 |
— | ||
| replacement | |||||
|
9
|
9
09140-10031-000 NUTNut, extension bolt no.1 (10x14); Type:xx |
09140-10031-000 |
from US $1.49 |
||
|
10
|
10
09159-12014-000 NUTNut, extension bolt no.2 (12x17); Type:xx |
09159-12014-000 |
from US $2.39 |
||
|
11
|
11
09202-08006-000 PIN(8X12)Pin, knock Pin, gear case knock; |
09202-08006-000 |
from US $1.96 |
||
|
12
|
12
55125-98J00-0EP TAB,TRIMTab, trim (black) |
55125-98J00-0EP |
from US $102.40 |
||
|
13
|
13
09116-08137-000 BOLT(8X22)Bolt (8x22) Bolt, trim tab (8x22); |
09116-08137-000 |
from US $3.92 |
||
|
14
|
14
55128-93J00-000
Plug, drain
|
55128-93J00-000 |
— | ||
| replacement | |||||
|
14
|
14
55128-93J10-000 PLUG,DRAIN |
55128-93J10-000 |
from US $5.31 |
||
|
15
|
15
09168-10034-000 GASKET(9.5X16.5X2)Gasket, drain plug (9.5x16.5x2) Gasket, drain plug; |
09168-10034-000 |
US $2.89 |
||
| replacement | |||||
|
15
|
15
09168-10038-000 GASKETDRAIN PLUGGasket, drain plug; |
09168-10038-000 |
from US $2.40 |
||
|
16
|
16
55320-95311-000 ZINC SET,PROTECTIONZinc, protection; |
55320-95311-000 |
US $14.78 |
||
|
17
|
17
09116-06094-000 BOLT(6X15)Bolt, zinc protection; |
09116-06094-000 |
US $0.81 |
||
|
18
|
18
55332-98J00-000
RUBBER,EXHAUST SEAL
|
55332-98J00-000 |
— | ||
| replacement | |||||
|
18
|
18
55332-98J01-000 Rubber,exhaust Seal |
55332-98J01-000 |
from US $5.18 |
||
|
19
|
19
55333-98J00-000 PLATE,EXHAUST SEAL |
55333-98J00-000 |
from US $9.81 |
||
|
20
|
20
09401-08412-000 CLIPClip, speedometer hose; |
09401-08412-000 |
from US $1.52 |
||
|
21
|
21
09355-40805-00B HOSE(4X8X2000)Hose, speedometer; L:2000->300 |
09355-40805-00B |
from US $19.01 |
||
|
22
|
22
09362-09008-000 UNIONNipple, speedometer; |
09362-09008-000 |
from US $2.72 |
||
|
23
|
23
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) Clamp, speedometer hose; |
09407-10404-000 |
from US $3.96 |
||
|
24
|
24
58200-93JA0-000
Propeller (3x16x18.5)
Propeller (3x16x18.5); |
58200-93JA0-000 |
— | ||
| replacements | |||||
|
24
|
24
58200-93LA0-000
PROPELLER(3X16X18-1/2),C/R
Propeller (3x16x18.5); |
58200-93LA0-000 |
— | ||
|
24
|
24
58800-93L10-000 PROPELLER COMP(3X16X18.5,C/R)Propeller (3x16x18.5); |
58800-93L10-000 |
from US $1,020.80 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x16x18.5); |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x16x18.5); |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x16x18.5); |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-93JB0-000
Propeller (3x16x20)
Propeller (3x16x20); |
58200-93JB0-000 |
— | ||
| replacements | |||||
|
24
|
24
58200-93LB0-000
PROPELLER(3X16X20),C/R
Propeller (3x16x20); |
58200-93LB0-000 |
— | ||
|
24
|
24
58800-93L20-000 PROPELLER COMP(3X16X20,C/R)Propeller (3x16x20); |
58800-93L20-000 |
from US $1,020.80 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x16x20); |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x16x20); |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x16x20); |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-93JC0-000
Propeller (3x16x21.5)
Propeller (3x16x21.5); |
58200-93JC0-000 |
— | ||
| replacements | |||||
|
24
|
24
58200-93LC0-000
PROPELLER(3X16X21-1/2),C/R
Propeller (3x16x21.5); |
58200-93LC0-000 |
— | ||
|
24
|
24
58800-93L30-000 PROPELLER COMP(3X16X21.5,C/R)Propeller (3x16x21.5); |
58800-93L30-000 |
from US $1,433.12 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x16x21.5); |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x16x21.5); |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x16x21.5); |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-93JD0-000
Propeller (3x16x23)
Propeller (3x16x23); |
58200-93JD0-000 |
— | ||
| replacement | |||||
|
24
|
24
58200-93LD0-000 PROPELLER(3X16X23),C/RPropeller (3x16x23); |
58200-93LD0-000 |
US $960.96 |
||
|
24
|
24
58200-93JE0-000
Propeller (3x16x17)
Propeller (3x16x17); |
58200-93JE0-000 |
— | ||
| replacements | |||||
|
24
|
24
58200-93LE0-000 PROPELLER(3X16X17),C/RPropeller (3x16x17); |
58200-93LE0-000 |
US $1,180.01 |
||
|
24
|
24
58800-93L00-000 PROPELLER COMP(3X16X17,C/R)Propeller (3x16x17); |
58800-93L00-000 |
US $1,020.80 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x16x17); |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x16x17); |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x16x17); |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-93JF0-000
Propeller (3x16x24.5)
Propeller (3x16x24.5); |
58200-93JF0-000 |
— | ||
| replacements | |||||
|
24
|
24
58200-93LF0-000
PROPELLER(3X16X24-1/2),C/R
Propeller (3x16x24.5); |
58200-93LF0-000 |
— | ||
|
24
|
24
58800-93L50-000 PROPELLER COMP(3X16X24.5,C/R)Propeller (3x16x24.5); |
58800-93L50-000 |
US $1,020.80 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x16x24.5); |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x16x24.5); |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x16x24.5); |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-93JG0-000
Propeller (3x16x26)
Propeller (3x16x26); |
58200-93JG0-000 |
— | ||
| replacements | |||||
|
24
|
24
58200-93LG0-000
PROPELLER(3X16X26),C/R
Propeller (3x16x26); |
58200-93LG0-000 |
— | ||
|
24
|
24
58800-93L60-000 PROPELLER COMP(3X16X26,C/R)Propeller (3x16x26); |
58800-93L60-000 |
US $1,020.80 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x16x26); |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x16x26); |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x16x26); |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-96JA0-000 PROPELLER(3X15-1/2X17),C/RPropeller (3x15.5x17); Opt |
58200-96JA0-000 |
US $1,073.60 |
||
|
24
|
24
58200-96JB0-000
PROPELLER(3X15-1/4X19),C/R
Propeller (3x15.25x19); Opt |
58200-96JB0-000 |
— | ||
| replacements | |||||
|
24
|
24
58800-96J10-000 Propeller(3X15-1/4X19),c/rPropeller (3x15.25x19); Opt |
58800-96J10-000 |
from US $1,267.85 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x15.25x19); Opt |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x15.25x19); Opt |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x15.25x19); Opt |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-96JC0-000 PROPELLER(3X15X21),C/RPropeller (3x14.75x21); Opt |
58200-96JC0-000 |
US $729.36 |
||
| replacements | |||||
|
24
|
24
58800-96J20-000 Propeller(3X15X21),c/rPropeller (3x14.75x21); Opt |
58800-96J20-000 |
US $1,020.80 |
||
|
24
|
24
57632-93L10-000
STOPPER,PROPELLER BUSH
Propeller (3x14.75x21); Opt |
57632-93L10-000 |
— | ||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x14.75x21); Opt |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x14.75x21); Opt |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58200-96JD0-000 PROPELLER(3X14-3/4X23),C/RPropeller (3x14.75x23); Opt |
58200-96JD0-000 |
US $1,073.60 |
||
|
24
|
24
58200-96JE0-000
PROPELLER(3X14-1/2X25),C/R
Propeller (3x14.5x25); Opt |
58200-96JE0-000 |
— | ||
| replacements | |||||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x14.5x25); Opt |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58800-96J40-000 Propeller(3X14-1/2X25),c/rPropeller (3x14.5x25); Opt |
58800-96J40-000 |
US $1,020.80 |
||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x14.5x25); Opt |
57633-93L00-000 |
from US $36.36 |
||
|
24
|
24
58200-96JF0-000
PROPELLER(3X14-1/2X27),C/R
Propeller (3x14.5x27); Opt |
58200-96JF0-000 |
— | ||
| replacements | |||||
|
24
|
24
57632-93L11-000 Stopper,propeller BushPropeller (3x14.5x27); Opt |
57632-93L11-000 |
from US $75.83 |
||
|
24
|
24
58800-96J50-000 Propeller(3X14-1/2X27),c/rPropeller (3x14.5x27); Opt |
58800-96J50-000 |
US $1,020.80 |
||
|
24
|
24
57633-93L00-000 SPACER,PROPELLER NUTPropeller (3x14.5x27); Opt |
57633-93L00-000 |
from US $36.36 |
||
|
25
|
25
58105-93J00-000 BUSH SET,PROPELLER |
58105-93J00-000 |
from US $194.65 |
||
|
26
|
26
57632-93J11-000 STOPPER,PROPELLER BUSH |
57632-93J11-000 |
from US $72.74 |
||
|
27
|
27
57633-87D30-000 SPACER,NUT(T:6.0)Spacer, propeller nut Spacer, propeller nut; |
57633-87D30-000 |
from US $27.97 |
||
| replacement | |||||
|
27
|
27
57633-87D40-000 SPACERNUTT60Spacer, propeller nut; |
57633-87D40-000 |
from US $26.79 |
||
|
28
|
28
09141-18005-000 NUT |
09141-18005-000 |
from US $7.22 |
||
|
29
|
29
09160-18028-000 WASHER(18.5X31X1) |
09160-18028-000 |
from US $2.24 |
||
|
30
|
30
09204-03003-000 PINPin, cotter; |
09204-03003-000 |
from US $1.12 |
||
|
31
|
31
57630-92E00-000 KIT,PROPELLER NUTKit, propeller nut Opt |
57630-92E00-000 |
US $43.45 |
||
| replacement | |||||
|
31
|
31
57630-92E10-000 KITPROPELLER NUTOpt |
57630-92E10-000 |
from US $47.12 |
||
|
32
|
32
25700-98J00-000
SEALING KIT,GEAR CASE
Opt not shown |
25700-98J00-000 |
— | ||
| replacement | |||||
|
32
|
32
25700-98J01-000 Sealing Kit,gear CaseOpt not shown |
25700-98J01-000 |
from US $37.13 |
||
