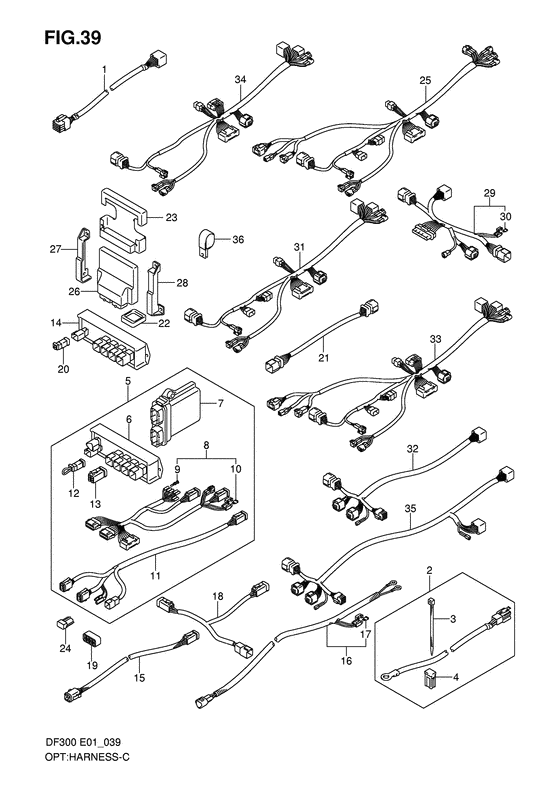

Harness (Optional;) Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36620-98J20-000
Wire assy, remocon extension
L:2000 |
36620-98J20-000 |
— | ||
| replacements | |||||
|
1
|
1
36620-98J50-000
WIRE ASSY,REMOCON EXT
L:2000 |
36620-98J50-000 |
— | ||
|
1
|
1
36620-98J51-000 Wire Assy, Remote ControlL:2000 |
36620-98J51-000 |
US $112.98 |
||
|
2
|
2
33830-98J01-000
Set, battery isolator lead
|
33830-98J01-000 |
— | ||
| replacement | |||||
|
2
|
2
33830-98J02-000 SET,BATTERY ISOLATOR LEAD |
33830-98J02-000 |
US $108.56 |
||
|
3
|
3
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
4
|
4
09481-40401-000 FUSE(40A)Fuse (40a); |
09481-40401-000 |
from US $3.65 |
||
|
5
|
5
34011-98J02-000
Kit,3" gauge connect
|
34011-98J02-000 |
— | ||
|
6
|
6
34921-98J00-000
UNIT,ACTIVE HUB
|
34921-98J00-000 |
— | ||
|
7
|
7
34922-98J02-000
Unit,interface
|
34922-98J02-000 |
— | ||
|
8
|
8
36661-98J00-000 HARNESS ASSY,INTERFACE UNIT(1M |
36661-98J00-000 |
US $299.92 |
||
|
9
|
9
36615-96300-000 TERMINALTerminal, resin; |
36615-96300-000 |
US $1.52 |
||
|
10
|
10
09481-05501-000 FUSE(5A)Fuse (5a); |
09481-05501-000 |
from US $1.93 |
||
|
11
|
11
36664-98J00-000 HARNESS ASSY,3INCH GAUGE |
36664-98J00-000 |
US $207.92 |
||
|
12
|
12
36665-98J00-000
WIRE,JUMPER
|
36665-98J00-000 |
— | ||
|
13
|
13
36666-98J10-000
CAP,6 PIN CONNECTOR
|
36666-98J10-000 |
— | ||
|
14
|
14
34921-98J10-000
UNIT,PASSIVE HUB
|
34921-98J10-000 |
— | ||
|
15
|
15
36662-98J00-000
HARNESS ASSY,HUB(1M)
L:1000 |
36662-98J00-000 |
— | ||
|
15
|
15
36662-98J10-000 HARNESS ASSY,HUB(6.5M)L:6500 |
36662-98J10-000 |
US $111.50 |
||
|
16
|
16
36663-98J00-000 HARNESS,ACTIVE HUB PWR(2.5M)L:2500 |
36663-98J00-000 |
US $76.91 |
||
|
16
|
16
36663-98J10-000 HARNESS,ACTIVE HUB PWR(6M)L:6000 |
36663-98J10-000 |
from US $120.06 |
||
|
17
|
17
09481-05501-000 FUSE(5A)Fuse (5a); |
09481-05501-000 |
from US $1.93 |
||
|
18
|
18
36664-98J10-000
HARNESS ASSY,2INCH GAUGE
|
36664-98J10-000 |
— | ||
|
19
|
19
36666-98J00-000 CAP,8 PIN CONNECTOR |
36666-98J00-000 |
US $42.32 |
||
|
20
|
20
36667-98J00-000
CAP,2 PIN CONNECTOR
|
36667-98J00-000 |
— | ||
|
21
|
21
36668-98J00-000
HARNESS ASSY,RESISTOR
|
36668-98J00-000 |
— | ||
|
22
|
22
33911-88BL0-000 CAP,RUBBER |
33911-88BL0-000 |
US $6.66 |
||
|
23
|
23
33925-93J00-000 CUSHION,ENGINE CONTROL UNITCushion, engine control unit |
33925-93J00-000 |
US $16.80 |
||
|
24
|
24
33926-98J00-000 RESISTOR,TERMINAL |
33926-98J00-000 |
from US $4.53 |
||
|
25
|
25
36623-98J01-000 HARNESS ASSY,BCM NO.1 SINGLE |
36623-98J01-000 |
from US $292.56 |
||
|
26
|
26
36770-98J02-000
Controller assy,boat electric
|
36770-98J02-000 |
— | ||
| replacements | |||||
|
26
|
26
36770-98J11-000
CONTROLLER ASSY,BOAT ELECTRIC
|
36770-98J11-000 |
— | ||
|
26
|
26
36770-98J13-000 CONTROLLER ASSY,BOAT ELECTRIC |
36770-98J13-000 |
US $857.60 |
||
|
27
|
27
36775-98J00-000 HOLDER,BCM,LHolder, bcm (l); |
36775-98J00-000 |
US $1.77 |
||
|
28
|
28
36776-98J00-000 HOLDER,BCM,RHolder, bcm (r); |
36776-98J00-000 |
US $1.77 |
||
|
29
|
29
36622-98J00-000 HARNESS ASSY,DUAL STATION MAINHarness assy, dual station main |
36622-98J00-000 |
US $240 |
||
|
30
|
30
09481-10501-000 FUSE(10A)Fuse (10a); |
09481-10501-000 |
from US $1.01 |
||
|
31
|
31
36624-98J01-000
Harness assy,bcm no.2 single
|
36624-98J01-000 |
— | ||
| replacement | |||||
|
31
|
31
36624-98J02-000 HARNESS ASSY,BCM NO.2 FOR SNGL |
36624-98J02-000 |
US $215.28 |
||
|
32
|
32
36621-98J00-000 HARNESS ASSY,DUAL ENGINE |
36621-98J00-000 |
from US $129.89 |
||
|
33
|
33
36623-98J11-000 HARNESS ASSY,BCM NO.1 MULTI |
36623-98J11-000 |
US $401.12 |
||
|
34
|
34
36624-98J10-000
Harness assy, bcm no.2 for mul
|
36624-98J10-000 |
— | ||
| replacement | |||||
|
34
|
34
36624-98J11-000 HARNESS ASSY,BCM NO.2 FOR MULT |
36624-98J11-000 |
US $276 |
||
|
35
|
35
36621-98J10-000 HARNESS ASSY,TRIPLE ENGINE |
36621-98J10-000 |
from US $183.63 |
||
|
36
|
36
09403-13402-000 CLAMP(ID:13) |
09403-13402-000 |
from US $2.27 |
||
