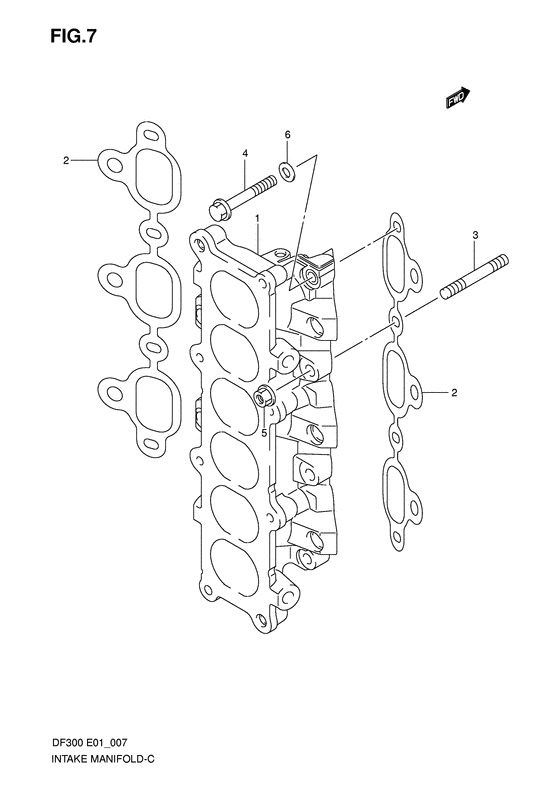

Intake manifold Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-98J10-000 MANIFOLD,INTAKE |
13110-98J10-000 |
US $401.12 |
||
|
2
|
2
13119-98J00-000 GASKET,INTAKE MANIFOLD |
13119-98J00-000 |
from US $7.84 |
||
|
3
|
3
09108-08282-000 BOLT,STUD |
09108-08282-000 |
from US $8.35 |
||
|
4
|
4
09103-08437-000 BOLT(8X65)Bolt (8x65) |
09103-08437-000 |
from US $11.80 |
||
|
5
|
5
09159-08136-000 NUTNut (m8) |
09159-08136-000 |
from US $2.27 |
||
|
6
|
6
09160-08161-000 WASHER(8.2X23X3.2) |
09160-08161-000 |
US $33.10 |
