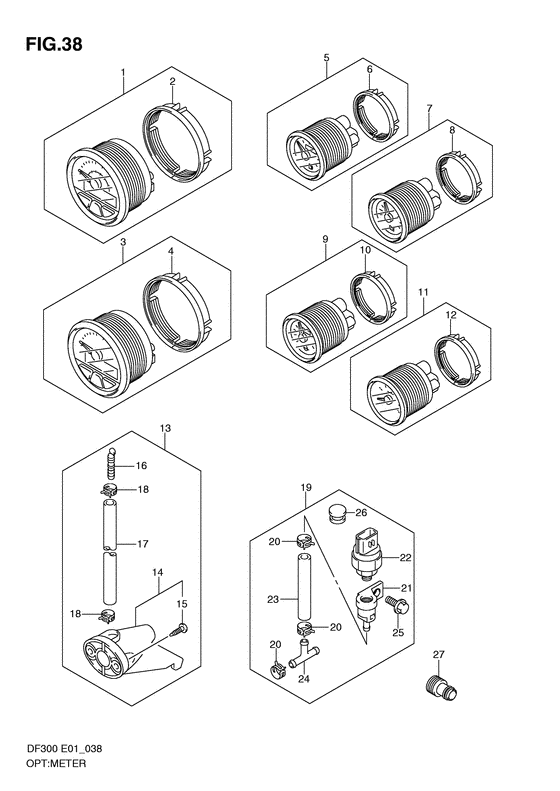

Meter (Optional;) Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-98J01-000
SPEEDOMETER ASSY,130KM/H BLACK
Max 130km/h black |
34100-98J01-000 |
— | ||
|
1
|
1
34100-98J11-000
Speedometer assy,130km/h white
Max 130km/h white |
34100-98J11-000 |
— | ||
|
1
|
1
34100-98J21-000
Speedometer assy,80km/h black
Max 80km/h black |
34100-98J21-000 |
— | ||
|
1
|
1
34100-98J31-000
Speedometer assy,80km/h white
Max 80km/h white |
34100-98J31-000 |
— | ||
|
1
|
1
34100-98J41-000
Speedometer assy,60 knots w
Max 60knots white |
34100-98J41-000 |
— | ||
|
2
|
2
34112-98J00-000
NUT
|
34112-98J00-000 |
— | ||
|
3
|
3
34200-98J03-000
Tachometer assy
Black |
34200-98J03-000 |
— | ||
|
3
|
3
34200-98J13-000
Tachometer assy,white
White |
34200-98J13-000 |
— | ||
|
4
|
4
34112-98J00-000
NUT
|
34112-98J00-000 |
— | ||
|
5
|
5
34300-98J00-000
Gauge assy, fuel
Black |
34300-98J00-000 |
— | ||
|
5
|
5
34300-98J10-000
GAUGE ASSY,FUEL(WHITE)
White |
34300-98J10-000 |
— | ||
|
6
|
6
34815-98J00-000
NUT
|
34815-98J00-000 |
— | ||
|
7
|
7
34600-98J00-000
Meter assy, voltage
Black |
34600-98J00-000 |
— | ||
|
7
|
7
34600-98J10-000
METER ASSY,VOLTAGE W
White |
34600-98J10-000 |
— | ||
|
8
|
8
34815-98J00-000
NUT
|
34815-98J00-000 |
— | ||
|
9
|
9
34650-98J00-000
Gauge assy, water pressure
15psi black |
34650-98J00-000 |
— | ||
|
9
|
9
34650-98J10-000
GAUGE ASSY,WATER PRESS 15PSI W
15psi white |
34650-98J10-000 |
— | ||
|
10
|
10
34815-98J00-000
NUT
|
34815-98J00-000 |
— | ||
|
11
|
11
34800-98J00-000
Meter assy, trim
Black |
34800-98J00-000 |
— | ||
|
11
|
11
34800-98J10-000
METER ASSY,TRIM W
White |
34800-98J10-000 |
— | ||
|
12
|
12
34815-98J00-000
NUT
|
34815-98J00-000 |
— | ||
|
13
|
13
34120-98J01-000 KIT,SPEEDOMETER SUB |
34120-98J01-000 |
US $158.98 |
||
|
14
|
14
34190-95500-000 SENDER,SPEEDOMETER |
34190-95500-000 |
US $114 |
||
|
15
|
15
03112-06303-000
Screw
|
03112-06303-000 |
— | ||
| replacement | |||||
|
15
|
15
03112-0630B-000 SCREW |
03112-0630B-000 |
US $17.70 |
||
|
16
|
16
55127-87D00-000 PLUG,UNIONUnion, speedometer hose |
55127-87D00-000 |
US $1.76 |
||
|
17
|
17
09355-40805-00B HOSE(4X8X2000)Hose, water presssure; L:2000->700 |
09355-40805-00B |
from US $19.01 |
||
|
18
|
18
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) Clamp, hose; |
09407-10404-000 |
from US $3.96 |
||
|
19
|
19
34970-98J01-000
Kit,water pressure sub
Kit, water pressure sub; |
34970-98J01-000 |
— | ||
| replacement | |||||
|
19
|
19
34970-98J02-000 KIT,WATER PRESSURE SUBKit, water pressure sub; |
34970-98J02-000 |
US $168.91 |
||
|
20
|
20
09401-08413-000 CLIP |
09401-08413-000 |
from US $1.60 |
||
|
21
|
21
34115-98J00-000 CONNECTOR,WATER HOSE |
34115-98J00-000 |
US $4.75 |
||
|
22
|
22
34960-98J00-000 SENSOR ASSY,SPEEDSensor assy, speed |
34960-98J00-000 |
US $160.82 |
||
|
23
|
23
09352-50903-600
HOSE(5X9X600)
Hose, water presssure; L:600->00 |
09352-50903-600 |
— | ||
| replacement | |||||
|
23
|
23
09352-50006-600 Hose(5X9X600)Hose, water presssure; L:600->00 |
09352-50006-600 |
from US $4.32 |
||
|
24
|
24
09367-06002-000 JOINT,3 WAY3 way |
09367-06002-000 |
from US $1.67 |
||
|
25
|
25
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
26
|
26
09250-08013-000 CAP(OD:12) |
09250-08013-000 |
from US $3.67 |
||
|
27
|
27
17917-87L00-000 CONNECTOR,FLUSH WATER |
17917-87L00-000 |
US $7.58 |
||
