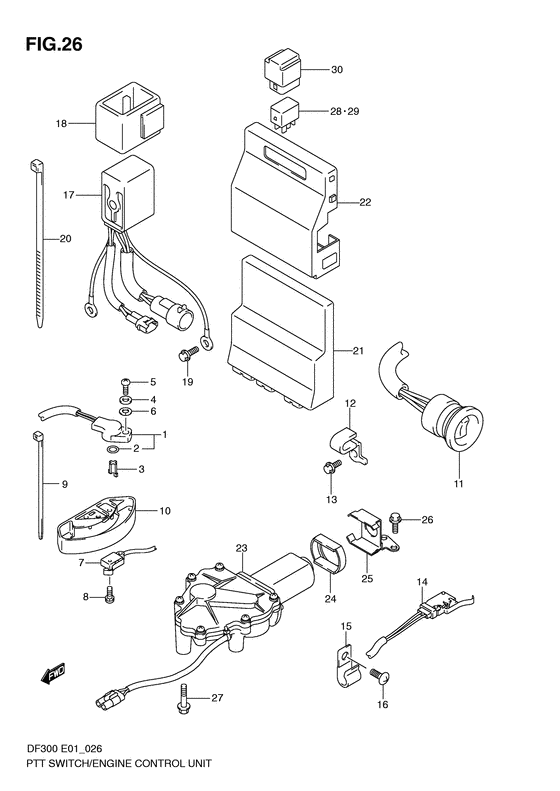

Ptt switch / engine control unit Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13580-98J01-000
Sensor assy,shift position
|
13580-98J01-000 |
— | ||
| replacements | |||||
|
1
|
1
13580-98J02-000
SENSOR ASSY,SHIFT POSITION
|
13580-98J02-000 |
— | ||
|
1
|
1
13580-98J03-000 Sensor Assy,shift Position |
13580-98J03-000 |
US $94.24 |
||
|
2
|
2
13575-40F00-000 O RING |
13575-40F00-000 |
from US $1.60 |
||
|
3
|
3
37729-98J00-000
LEVER,SHIFT SENSOR
|
37729-98J00-000 |
— | ||
| replacement | |||||
|
3
|
3
37729-96L00-000 LEVER,SHIFT SENSOR |
37729-96L00-000 |
from US $1.73 |
||
|
4
|
4
09160-05029-000 WASHER(5.5X12X0.8)Washer, shift sensor (5.5x12x0.8); |
09160-05029-000 |
from US $1.12 |
||
|
5
|
5
07130-05167-000 BoltBolt, shift position sensor Bolt, shift position sensor; |
07130-05167-000 |
from US $4.28 |
||
|
6
|
6
08321-01057-000 Lock washerWasher, shift position sensor; |
08321-01057-000 |
US $2.64 |
||
| replacement | |||||
|
6
|
6
08321-0105A-000 WASHER,LOCKWasher, shift position sensor; |
08321-0105A-000 |
from US $0.76 |
||
|
7
|
7
37721-93J00-000 SWITCH ASSY,NEUTRAL |
37721-93J00-000 |
from US $20.80 |
||
|
8
|
8
09137-04004-000 SCREW(4X16)Screw, neutral switch; |
09137-04004-000 |
US $1.49 |
||
|
9
|
9
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) Clamp, sw lead wire; |
09407-10404-000 |
from US $3.96 |
||
|
10
|
10
37725-93J11-000 COVER,SWITCH ASSY |
37725-93J11-000 |
US $6.54 |
||
|
11
|
11
37850-99E04-000
SWITCH ASSY,PTT
|
37850-99E04-000 |
— | ||
| replacement | |||||
|
11
|
11
37850-99E05-000 SWITCH ASSY,PTT |
37850-99E05-000 |
from US $80.80 |
||
|
12
|
12
09403-11315-000 CLAMPClamp, ptt sw lead wire Clamp, ptt sw lead wire; |
09403-11315-000 |
US $26.50 |
||
|
13
|
13
01550-06127-000 BoltBolt, rect Bolt, ptt sw lead wire clamp; |
01550-06127-000 |
from US $0.68 |
||
|
14
|
14
37722-93J11-000
SWITCH ASSY,TILT LIMIT
|
37722-93J11-000 |
— | ||
| replacements | |||||
|
14
|
14
37722-93J12-000
Switch Assy,tilt Limit
|
37722-93J12-000 |
— | ||
|
14
|
14
37722-93J13-000
Switch Assy,tilt Limit
|
37722-93J13-000 |
— | ||
|
14
|
14
37722-93J14-000 SWITCH ASSY,TILT LIMIT |
37722-93J14-000 |
from US $34.40 |
||
|
15
|
15
09403-09316-000 CLAMPClamp, tilt limit lead Clamp, tilt limit lead; |
09403-09316-000 |
US $11.80 |
||
|
16
|
16
29125-93J00-000 SCREWScrew, tilt limit clamp Screw, tilt limit clamp; |
29125-93J00-000 |
US $1.44 |
||
|
17
|
17
38410-93J11-000
Relay assy, ptt
Relay, ptt; |
38410-93J11-000 |
— | ||
| replacement | |||||
|
17
|
17
38410-93J12-000 RELAY ASSY,PTTRelay, ptt; |
38410-93J12-000 |
US $110.97 |
||
|
18
|
18
38415-93J00-000 HOLDER,PTT RELAY |
38415-93J00-000 |
US $5.60 |
||
|
19
|
19
01550-06127-000 BoltBolt, rect Bolt, ptt relay ground; |
01550-06127-000 |
from US $0.68 |
||
|
20
|
20
09407-30401-000 CLAMP(L:300)Clamp, ptt relay; |
09407-30401-000 |
from US $7.79 |
||
|
21
|
21
33920-98J00-000 UNIT,ENGINE CONTROLE1 |
33920-98J00-000 |
US $1,950.48 |
||
|
21
|
21
33920-98J20-000
Unit, engine control
E1 model:08 |
33920-98J20-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-98J61-000 UNIT,ENGINE CONTROLE1 model:08 |
33920-98J61-000 |
US $1,950.48 |
||
|
21
|
21
33920-98J40-000
Unit,engine control
E1 model:09 |
33920-98J40-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-98J61-000 UNIT,ENGINE CONTROLE1 model:09 |
33920-98J61-000 |
US $1,950.48 |
||
|
21
|
21
33920-98J60-000
Unit,engine control
E1 model:10 |
33920-98J60-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-98J61-000 UNIT,ENGINE CONTROLE1 model:10 |
33920-98J61-000 |
US $1,950.48 |
||
|
21
|
21
33920-98J30-000
Unit, engine control
E40 |
33920-98J30-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-98J71-000 UNIT,ENGINE CONTROLE40 |
33920-98J71-000 |
US $1,950.48 |
||
|
21
|
21
33920-98J50-000
Unit,engine control
E40 model:09 |
33920-98J50-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-98J71-000 UNIT,ENGINE CONTROLE40 model:09 |
33920-98J71-000 |
US $1,950.48 |
||
|
21
|
21
33920-98J71-000 UNIT,ENGINE CONTROLE40 model:10 |
33920-98J71-000 |
US $1,950.48 |
||
|
21
|
21
33920-98J80-000
Unit,engine control
Df300t:110001~, df300z:110001~ |
33920-98J80-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-98J90-000 UNIT,ENGINE CONTROLDf300t:110001~, df300z:110001~ |
33920-98J90-000 |
US $1,950.48 |
||
|
22
|
22
33925-98J00-000 CUSHION,ENGINE CONTROL UNIT |
33925-98J00-000 |
US $14.29 |
||
|
23
|
23
38890-98J00-000
Actuator, shift
|
38890-98J00-000 |
— | ||
| replacements | |||||
|
23
|
23
38890-98J10-000
ACTUATOR ASSY,SHIFT
|
38890-98J10-000 |
— | ||
|
23
|
23
38890-98J11-000
ACTUATOR ASSY,SHIFT
|
38890-98J11-000 |
— | ||
|
23
|
23
38890-98J12-000 Actuator Assy,shift |
38890-98J12-000 |
from US $542.08 |
||
|
24
|
24
38892-98J00-000
DAMPER,SHIFT ACTUATOR
|
38892-98J00-000 |
— | ||
| replacement | |||||
|
24
|
24
38892-98J01-000 Damper,shift Actuator |
38892-98J01-000 |
US $3.31 |
||
|
25
|
25
38895-98J00-000 BRACKET,SHIFT ACTUATOR |
38895-98J00-000 |
US $20.98 |
||
|
26
|
26
01550-06167-000 BoltBolt, shift actuator brkt; |
01550-06167-000 |
from US $0.68 |
||
|
27
|
27
01550-06357-000 BoltBolt, throttle lever no.2 Bolt, shift actuator; |
01550-06357-000 |
from US $0.91 |
||
|
28
|
28
38860-76F01-000 RELAY ASSYRelay, starting motor Relay, actuator; |
38860-76F01-000 |
from US $28.80 |
||
|
29
|
29
38860-76F01-000 RELAY ASSYRelay, starting motor Relay, oxygem sensor heater; Df300t:110001~, df300z:110001~ |
38860-76F01-000 |
from US $28.80 |
||
|
30
|
30
38915-90J00-000 HOLDER,RELAYHolder, relay; |
38915-90J00-000 |
from US $3.34 |
||
