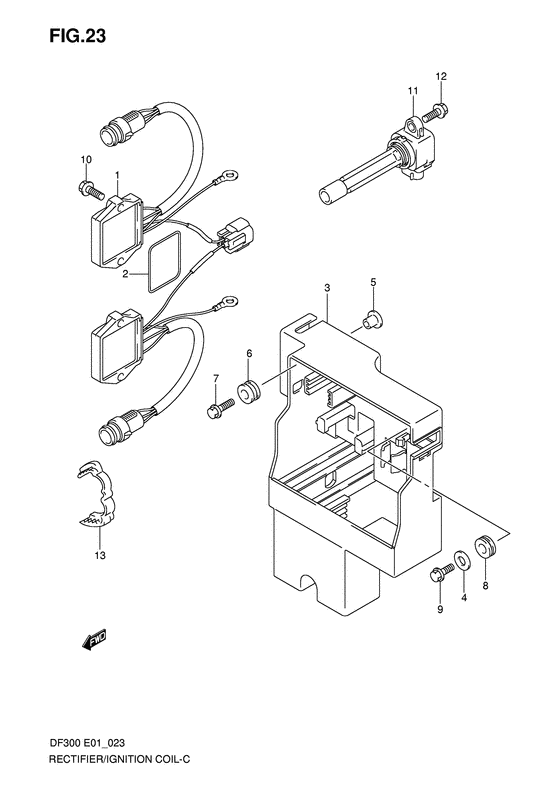

Rectifier / ignition coil Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32800-98J01-000 RECTIFIER & REGULATOR ASSY |
32800-98J01-000 |
from US $283.88 |
||
|
2
|
2
32805-93J00-000 O RING,RECT & REGULATOR |
32805-93J00-000 |
US $2.43 |
||
|
3
|
3
32890-98J01-000 HOLDER,ELECTRIC PARTS |
32890-98J01-000 |
US $23.18 |
||
|
4
|
4
09160-06134-000 WASHER(6.5X24X1.6)Washer, holder |
09160-06134-000 |
from US $0.96 |
||
|
5
|
5
09169-06062-000 WASHERWasher Washer, holder; |
09169-06062-000 |
from US $1.12 |
||
|
6
|
6
09320-09016-000 CUSHIONCushion, holder Cushion, holder; |
09320-09016-000 |
from US $1.52 |
||
|
7
|
7
09116-06202-000 BOLT(6X25)Bolt (w/washer) Bolt, holder (w/washer); |
09116-06202-000 |
from US $5.59 |
||
|
8
|
8
09320-12076-000
CUSHION
|
09320-12076-000 |
— | ||
| replacement | |||||
|
8
|
8
09320-12095-000 Cushion |
09320-12095-000 |
US $11.40 |
||
|
9
|
9
01550-06127-000 BoltBolt, rect Bolt, holder; |
01550-06127-000 |
from US $0.68 |
||
|
10
|
10
01550-06257-000 BoltBolt, rectifier & regulator; |
01550-06257-000 |
from US $1.12 |
||
|
11
|
11
33410-93J00-000 COIL ASSY,IGNITION |
33410-93J00-000 |
from US $99.57 |
||
|
12
|
12
01550-06207-000 Bolt |
01550-06207-000 |
from US $0.96 |
||
|
13
|
13
09408-00184-000 CLAMPClamp, regulator lead; |
09408-00184-000 |
from US $1.26 |
||
