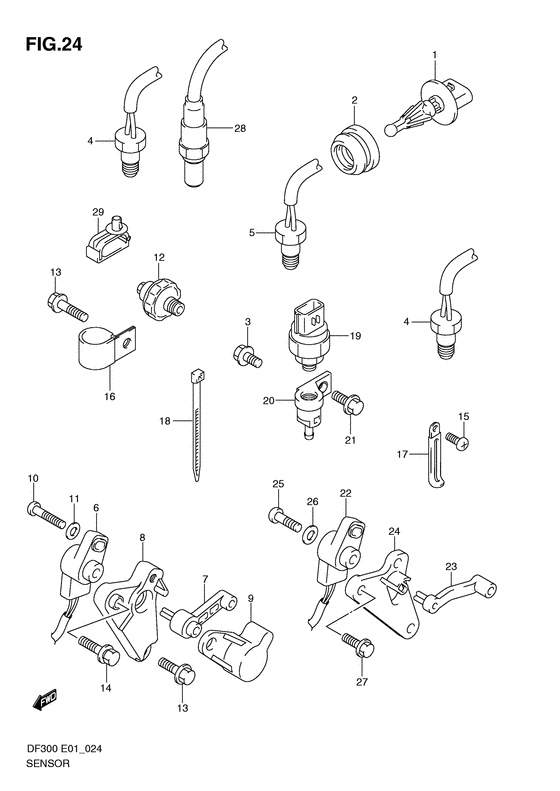

Sensor Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp Sensor, inlet air temp; |
13650-52G00-000 |
from US $50.92 |
||
|
2
|
2
13655-87J00-000 GROMMET,AIR TEMP SENSORGrommet, air temp sensor |
13655-87J00-000 |
US $2.43 |
||
|
3
|
3
29103-93J00-000 BoltBolt, ptt cable clip bracket (6x12) Bolt, ptt motor lead clamp; |
29103-93J00-000 |
US $1.44 |
||
|
4
|
4
34830-87J20-000 SENSOR,TEMPSensor assy, temp Sensor assy, exhaust temp; |
34830-87J20-000 |
from US $46.40 |
||
|
5
|
5
34830-87J20-000 SENSOR,TEMPSensor assy, temp |
34830-87J20-000 |
from US $46.40 |
||
|
6
|
6
34840-98J01-000
Sensor assy,trim
~model:10 |
34840-98J01-000 |
— | ||
| replacement | |||||
|
6
|
6
34840-98J03-000 SENSOR ASSY,TRIM & TILT~model:10 |
34840-98J03-000 |
from US $146.95 |
||
|
7
|
7
34841-98J00-000 LEVER,TRIM SENSOR~model:10 |
34841-98J00-000 |
US $6.15 |
||
|
8
|
8
34845-98J00-000 BRACKET,TRIM SENSOR~model:10 |
34845-98J00-000 |
US $16.74 |
||
|
9
|
9
34846-98J00-000 BRACKET,TRIM SENSOR LEVER~model:10 |
34846-98J00-000 |
US $10.78 |
||
|
10
|
10
34847-98J00-000 SCREW,TRIM SENSOR~model:10 |
34847-98J00-000 |
US $1.69 |
||
|
11
|
11
09160-05029-000 WASHER(5.5X12X0.8)Washer, trim sensor; ~model:10 |
09160-05029-000 |
from US $1.12 |
||
|
12
|
12
37820-99E01-000
SWITCH ASSY,OIL PRESSURE(P1.0)
|
37820-99E01-000 |
— | ||
| replacement | |||||
|
12
|
12
37820-99E02-000 SWITCH ASSY,OIL PRESSURE |
37820-99E02-000 |
from US $18.23 |
||
|
13
|
13
29103-93J10-000
Bolt (6x20)
Bolt, trim sensor bracket; ~model:10 |
29103-93J10-000 |
— | ||
| replacement | |||||
|
13
|
13
09103-06093-000 BOLT(6X20)Bolt, trim sensor bracket; ~model:10 |
09103-06093-000 |
from US $1.68 |
||
|
14
|
14
09116-06121-000 BOLT(6X25)Bolt (6x25) Bolt, trim sensor bracket; ~model:10 |
09116-06121-000 |
from US $1.22 |
||
|
15
|
15
09125-06063-000 SCREW(6X10)Screw, ptt motor lead clamp; |
09125-06063-000 |
from US $1.28 |
||
|
16
|
16
09403-19409-000
CLAMP
Clamp, ptt motor lead; |
09403-19409-000 |
— | ||
| replacement | |||||
|
16
|
16
09403-19412-000 Clamp,ptt Motor LeadClamp, ptt motor lead; |
09403-19412-000 |
from US $6.89 |
||
|
17
|
17
29404-93J10-000
CLAMP
Clamp, ptt motor lead; |
29404-93J10-000 |
— | ||
| replacement | |||||
|
17
|
17
29404-93J11-000 ClampClamp, ptt motor lead; |
29404-93J11-000 |
US $1.78 |
||
|
18
|
18
09407-14407-000 CLAMP(L:145)Band Clamp, trim sendor lead wire; |
09407-14407-000 |
from US $2.08 |
||
|
19
|
19
34960-98J00-000 SENSOR ASSY,SPEEDSensor assy, speed Sensor assy, speed; |
34960-98J00-000 |
US $160.82 |
||
|
20
|
20
34115-98J00-000 CONNECTOR,WATER HOSE |
34115-98J00-000 |
US $4.75 |
||
|
21
|
21
01550-06207-000 BoltBolt, connector; |
01550-06207-000 |
from US $0.96 |
||
|
22
|
22
34840-98J01-000
Sensor assy,trim
Df300t:110001~, df300z:110001~ |
34840-98J01-000 |
— | ||
| replacement | |||||
|
22
|
22
34840-98J03-000 SENSOR ASSY,TRIM & TILTDf300t:110001~, df300z:110001~ |
34840-98J03-000 |
from US $146.95 |
||
|
23
|
23
34841-88L00-000
LEVER,TRIM SENSOR
Df300t:110001~, df300z:110001~ |
34841-88L00-000 |
— | ||
| replacement | |||||
|
23
|
23
34841-88L01-000 Lever,trim SensorDf300t:110001~, df300z:110001~ |
34841-88L01-000 |
from US $3.68 |
||
|
24
|
24
34845-88L00-000
Bracket,trim sensor
Df300t:110001~, df300z:110001~ |
34845-88L00-000 |
— | ||
| replacements | |||||
|
24
|
24
34845-88L01-000
BRACKET,TRIM SENSOR
Df300t:110001~, df300z:110001~ |
34845-88L01-000 |
— | ||
|
24
|
24
34845-88L02-000 Bracket,trim SensorDf300t:110001~, df300z:110001~ |
34845-88L02-000 |
from US $10.88 |
||
|
25
|
25
09125-05048-000 SCREW(5X16)Screw, trim sensor; Df300t:110001~, df300z:110001~ |
09125-05048-000 |
from US $3.45 |
||
| replacement | |||||
|
25
|
25
09136-05041-000 SCREW(5X20)Screw, rod adjuster Screw, trim sensor; Df300t:110001~, df300z:110001~ |
09136-05041-000 |
from US $1.78 |
||
|
26
|
26
09160-05029-000 WASHER(5.5X12X0.8)Washer, trim sensor; Df300t:110001~, df300z:110001~ |
09160-05029-000 |
from US $1.12 |
||
|
27
|
27
29103-93J10-000
Bolt (6x20)
Bolt, trim sensor bracket; Df300t:110001~, df300z:110001~ |
29103-93J10-000 |
— | ||
| replacement | |||||
|
27
|
27
09103-06093-000 BOLT(6X20)Bolt, trim sensor bracket; Df300t:110001~, df300z:110001~ |
09103-06093-000 |
from US $1.68 |
||
|
28
|
28
18213-98J00-000 Sensor,oxygenDf300t:110001~, df300z:110001~ |
18213-98J00-000 |
US $340.48 |
||
| replacement | |||||
|
28
|
28
18213-98J30-000 SENSOR,OXYGENDf300t:110001~, df300z:110001~ |
18213-98J30-000 |
from US $193.64 |
||
|
29
|
29
09403-07340-000 CLAMPClamp, ptt cable; Df300t:110001~, df300z:110001~ |
09403-07340-000 |
from US $6.14 |
||
