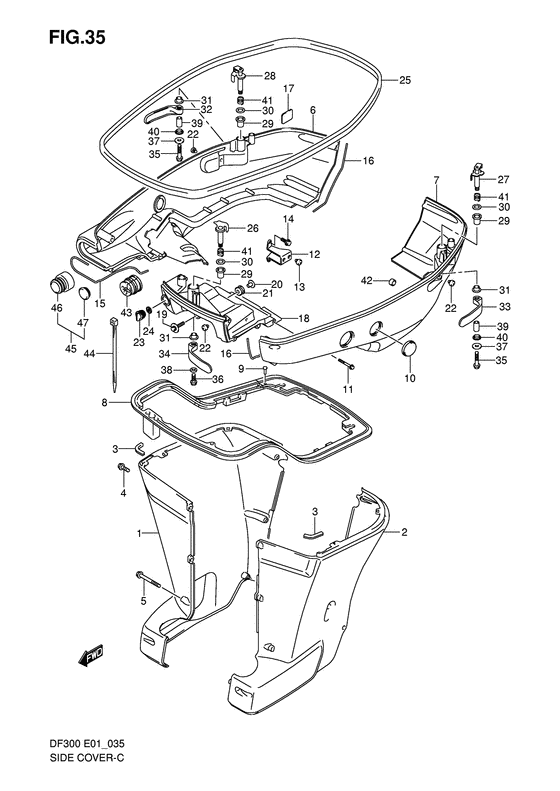

Side cover Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61131-98J00-0EP
COVER,OIL PAN STBD
Cover, oil pan stbd (black); |
61131-98J00-0EP |
— | ||
|
1
|
1
61131-93J00-0EP
Cover, oil pan stbd (black)
Df300t:010238~, df300z:010141~ |
61131-93J00-0EP |
— | ||
| replacement | |||||
|
1
|
1
61131-93J01-0EP COVER,OIL PAN STBDDf300t:010238~, df300z:010141~ |
61131-93J01-0EP |
from US $416 |
||
|
2
|
2
61141-98J00-0EP
COVER,OIL PAN PORT
Cover, oil pan port (black); |
61141-98J00-0EP |
— | ||
|
2
|
2
61141-93J00-0EP
Cover, oil pan port (black)
Df300t:010238~, df300z:010141~ |
61141-93J00-0EP |
— | ||
| replacement | |||||
|
2
|
2
61141-93J01-0EP COVER,OIL PAN PORTDf300t:010238~, df300z:010141~ |
61141-93J01-0EP |
from US $364 |
||
|
3
|
3
61137-93J00-000
CUSHION,OIL PAN COVER UPR
|
61137-93J00-000 |
— | ||
| replacement | |||||
|
3
|
3
61137-93J01-000 Cushion,oil Pan Cover Upr |
61137-93J01-000 |
US $5.56 |
||
|
4
|
4
09139-06135-000 SCREW(6X17)Bolt, oil pan cover (6x17) Screw, oil pan cov (6x17); |
09139-06135-000 |
from US $3.50 |
||
|
5
|
5
09139-06136-000 SCREW(6X65)Screw, oil pan cov (6x65); |
09139-06136-000 |
from US $12.51 |
||
|
6
|
6
61811-98J01-0EP
Cover,side stbd
Cover, side stbd (black); |
61811-98J01-0EP |
— | ||
| replacement | |||||
|
6
|
6
61811-98J20-0EP COVER,SIDE STBDCover, side stbd (black); |
61811-98J20-0EP |
US $559.68 |
||
|
6
|
6
61811-98J10-0EP
Cover,side stbd
Df300t:110001~, df300z:110001~ |
61811-98J10-0EP |
— | ||
| replacement | |||||
|
6
|
6
61811-98J20-0EP COVER,SIDE STBDDf300t:110001~, df300z:110001~ |
61811-98J20-0EP |
US $559.68 |
||
|
7
|
7
61821-98J01-0EP
Cover,side port
Cover, side port (black); |
61821-98J01-0EP |
— | ||
| replacement | |||||
|
7
|
7
61821-98J10-0EP COVER,SIDE PORTCover, side port (black); |
61821-98J10-0EP |
US $559.68 |
||
|
8
|
8
61134-93J20-000
SEAL,SIDE COVER
|
61134-93J20-000 |
— | ||
| replacement | |||||
|
8
|
8
61134-93J21-000 Seal,side Cover |
61134-93J21-000 |
US $65.14 |
||
|
9
|
9
09409-05302-5PK CLIP(BLACK)Pin, side cover seal (black); |
09409-05302-5PK |
from US $2.55 |
||
|
10
|
10
61817-93J00-000
PLUG,SIDE COVER
|
61817-93J00-000 |
— | ||
| replacement | |||||
|
10
|
10
61817-93J01-000 Plug,side Cover |
61817-93J01-000 |
US $4.20 |
||
|
11
|
11
09136-06148-000 SCREW(6X35)Screw, side cover (6x35); |
09136-06148-000 |
US $2.92 |
||
| replacement | |||||
|
11
|
11
09139-06249-000 SCREWScrew, side cover (6x35); |
09139-06249-000 |
from US $1.92 |
||
|
12
|
12
61827-93J01-000
Holder,side cover
|
61827-93J01-000 |
— | ||
| replacement | |||||
|
12
|
12
61827-93J02-000 HOLDER,SIDE COVER |
61827-93J02-000 |
US $20.98 |
||
|
13
|
13
09321-10030-000
CUSHION
|
09321-10030-000 |
— | ||
| replacement | |||||
|
13
|
13
09321-10049-000 Cushion |
09321-10049-000 |
US $14.40 |
||
|
14
|
14
01550-08207-000 BoltBolt, side cover holder; |
01550-08207-000 |
from US $1.12 |
||
|
15
|
15
61832-98J00-000 SEAL,FR PANEL(STBD) |
61832-98J00-000 |
US $6.29 |
||
|
16
|
16
61812-98J00-000 SEAL,SIDE COVER |
61812-98J00-000 |
US $6.59 |
||
|
17
|
17
61814-98J00-000 PROTECTOR,SIDE COVER |
61814-98J00-000 |
US $4.42 |
||
|
18
|
18
61831-98J01-0EP
Panel,front
Panel, front (black); |
61831-98J01-0EP |
— | ||
| replacement | |||||
|
18
|
18
61831-98J02-0EP PANEL,FRPanel, front (black); |
61831-98J02-0EP |
US $152.35 |
||
|
19
|
19
09118-08127-000 Bolt 8 x 40Bolt, front panel (8x40); |
09118-08127-000 |
US $5.18 |
||
| replacements | |||||
|
19
|
19
09116-08163-000
BOLT(8X38)
Bolt, front panel (8x40); |
09116-08163-000 |
— | ||
|
19
|
19
09116-08174-000 BOLT(8X38)Bolt, front panel (8x40); |
09116-08174-000 |
from US $2.59 |
||
|
20
|
20
09169-08039-000
WASHER
Washer, front panel; |
09169-08039-000 |
— | ||
| replacement | |||||
|
20
|
20
09169-08050-000 WASHER,FRONT PANEL(ID:8.5)Washer, front panel; |
09169-08050-000 |
from US $9.57 |
||
|
21
|
21
09320-11013-000
CUSHION
Cushion, front panel; |
09320-11013-000 |
— | ||
| replacement | |||||
|
21
|
21
09320-11023-000 Cushion,front PanelCushion, front panel; |
09320-11023-000 |
US $24.30 |
||
|
22
|
22
09321-10030-000
CUSHION
Stopper, lever hook; |
09321-10030-000 |
— | ||
| replacement | |||||
|
22
|
22
09321-10049-000 CushionStopper, lever hook; |
09321-10049-000 |
US $14.40 |
||
|
23
|
23
17913-93J00-000 PLUG,WATER |
17913-93J00-000 |
from US $4.26 |
||
|
24
|
24
17914-93J00-000
GASKET,WATER PLUG
Gasket, water plug; |
17914-93J00-000 |
— | ||
| replacement | |||||
|
24
|
24
17914-93J01-000 Gasket,water PlugGasket, water plug; |
17914-93J01-000 |
from US $3.04 |
||
|
25
|
25
61112-98J00-000 RUBBER,SIDE COVER |
61112-98J00-000 |
from US $38.40 |
||
|
26
|
26
61630-98J00-000 SHAFT,COVER HOOK FRShaft, cover hook (front); |
61630-98J00-000 |
US $129.90 |
||
|
27
|
27
61640-98J00-000 SHAFT,COVER HOOK(PORT)Shaft, cover hook (port); |
61640-98J00-000 |
US $116.66 |
||
|
27
|
27
63632-98J20-000 SHAFT,ENGINE COVER HOOK(PORT)Shaft, cover hook (port); Df300t:980538~, df300z:980192~ |
63632-98J20-000 |
US $91.26 |
||
|
28
|
28
61650-98J00-000
SHAFT,COVER HOOK(STBD)
Shaft, cover hook (stbd); |
61650-98J00-000 |
— | ||
|
28
|
28
63632-98J30-000 SHAFT,ENGINE COVER HOOK(STBD)Shaft, cover hook (stbd); Df300t:980538~, df300z:980192~ |
63632-98J30-000 |
US $91.26 |
||
|
29
|
29
09306-17002-000 BUSH |
09306-17002-000 |
US $21.30 |
||
|
30
|
30
09160-17052-000 WASHER(17X30X3) |
09160-17052-000 |
from US $8.89 |
||
|
31
|
31
61636-98J00-000 BUSH |
61636-98J00-000 |
US $3.83 |
||
|
32
|
32
61633-98J00-0EP
Lever, hook rr stbd
|
61633-98J00-0EP |
— | ||
| replacements | |||||
|
32
|
32
61633-98J10-0EP LEVER,HOOK RR STBD |
61633-98J10-0EP |
US $75.81 |
||
|
32
|
32
63632-98J30-000 SHAFT,ENGINE COVER HOOK(STBD) |
63632-98J30-000 |
US $91.26 |
||
|
32
|
32
61633-98J10-0EP LEVER,HOOK RR STBDDf300t:980538~, df300z:980192~ |
61633-98J10-0EP |
US $75.81 |
||
|
33
|
33
61634-98J00-0EP
Lever, hook rr port
|
61634-98J00-0EP |
— | ||
| replacements | |||||
|
33
|
33
61634-98J10-0EP LEVER,HOOK RR PORT |
61634-98J10-0EP |
US $75.81 |
||
|
33
|
33
63632-98J20-000 SHAFT,ENGINE COVER HOOK(PORT) |
63632-98J20-000 |
US $91.26 |
||
|
33
|
33
61634-98J10-0EP LEVER,HOOK RR PORTDf300t:980538~, df300z:980192~ |
61634-98J10-0EP |
US $75.81 |
||
|
34
|
34
61645-98J00-0EP LEVER,HOOK FR |
61645-98J00-0EP |
US $75.81 |
||
|
35
|
35
29103-93J20-000 BoltBolt, hook lever (8x45) (stbd / port) Bolt, hook lever (8x45) (stbd / port); |
29103-93J20-000 |
US $1.68 |
||
|
36
|
36
29103-93J30-000 BoltBolt, anode cover (8x25) Bolt, hook lever (8x25) (front); |
29103-93J30-000 |
US $2.80 |
||
|
37
|
37
09160-08152-000 WASHER(8.5X28X1.5)Washer, tiller handle (8.5x33x1.5) Washer, hook lever lower (8.5x33x1.5)(stbd / port); |
09160-08152-000 |
from US $1.76 |
||
|
38
|
38
09160-08082-000 WASHER(8.5X16X1.2)Washer, hook lever lower (8.5x16x1.2)(front); |
09160-08082-000 |
from US $1.08 |
||
|
39
|
39
61635-98J00-000 SPACER |
61635-98J00-000 |
US $13.06 |
||
|
40
|
40
61643-98J00-000 BUSH |
61643-98J00-000 |
US $3.35 |
||
|
41
|
41
61658-98J00-000 SPRING,HOOK SHAFT |
61658-98J00-000 |
US $3.46 |
||
|
42
|
42
09329-14002-000
CUSHION
Cushion, side cover; |
09329-14002-000 |
— | ||
| replacement | |||||
|
42
|
42
09329-14003-000 Cushion(14X20X9)Cushion, side cover; |
09329-14003-000 |
from US $4.28 |
||
|
43
|
43
61124-98J00-000
GROMMET,REMOCON CABLE
|
61124-98J00-000 |
— | ||
| replacement | |||||
|
43
|
43
61124-98J01-000 Grommet,remocon Cable |
61124-98J01-000 |
US $19.20 |
||
|
44
|
44
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
45
|
45
67300-93J00-000
KIT,HOSE ADAPTER
Opt |
67300-93J00-000 |
— | ||
| replacement | |||||
|
45
|
45
67300-93J01-000 Kit, Hose AdapterOpt |
67300-93J01-000 |
US $16.37 |
||
|
46
|
46
67361-93J00-000 ADAPTER,HOSEOpt |
67361-93J00-000 |
US $6 |
||
|
47
|
47
09250-21003-000
PLUG(OD:28)
Plug, grommet; Opt |
09250-21003-000 |
— | ||
| replacement | |||||
|
47
|
47
09250-21004-000 Plug(Od:28)Plug, grommet; Opt |
09250-21004-000 |
US $29.80 |
||
|
48
|
48
61140-93J00-0EP KIT,OIL PAN COVER PROTECTOROpt,not shown |
61140-93J00-0EP |
US $78.02 |
||
|
49
|
49
09125-06067-000 SCREW(6X16)Screw (6x16) Screw (6x16); |
09125-06067-000 |
from US $1.35 |
||
