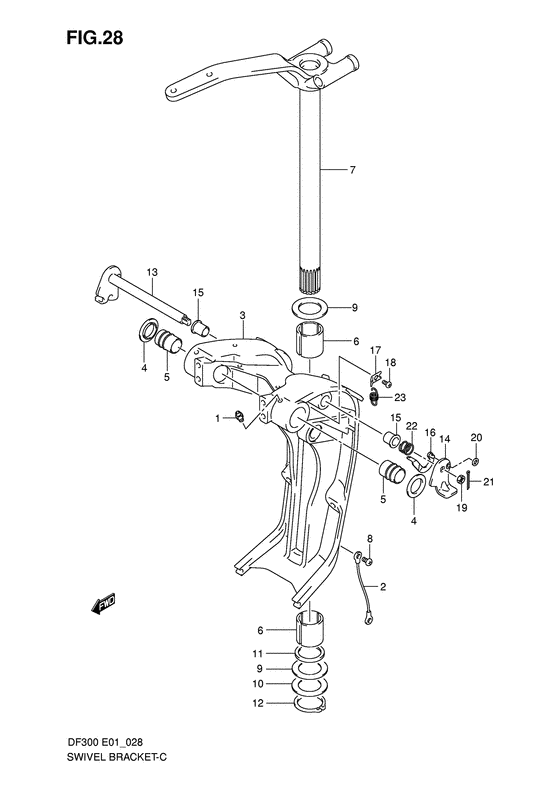

Swivel bracket Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22511-99011-000 NIPPLE,GREASENipple, grease swivel brkt; |
22511-99011-000 |
from US $2.40 |
||
|
2
|
2
36894-87D00-000 LEAD(L:165)Lead (swivel to mount brkt); |
36894-87D00-000 |
from US $8.96 |
||
|
3
|
3
43111-93J22-0EP
Bracket, swivel (black)
Bracket, swivel (black); |
43111-93J22-0EP |
— | ||
| replacement | |||||
|
3
|
3
43111-93J24-0EP BRACKET,SWIVEL(BLACK)Bracket, swivel (black); |
43111-93J24-0EP |
US $1,152 |
||
|
4
|
4
43114-93J00-000 WASHER,SWIVEL TO CLAMP BRKT |
43114-93J00-000 |
US $3.04 |
||
|
5
|
5
43211-93J00-000
BUSH,CLAMP SHAFT SWIVEL
|
43211-93J00-000 |
— | ||
| replacement | |||||
|
5
|
5
43211-93J11-000 Bush,clamp Shaft Swivel |
43211-93J11-000 |
from US $4.80 |
||
|
6
|
6
43711-97E00-000
Bush,steering
Bush, steering; |
43711-97E00-000 |
— | ||
| replacements | |||||
|
6
|
6
43711-97E01-000
Bush,steering
Bush, steering; |
43711-97E01-000 |
— | ||
|
6
|
6
43711-97E11-000 Bush,steeringBush, steering; |
43711-97E11-000 |
from US $8.35 |
||
|
7
|
7
43750-93J02-0EP
BRACKET,STEERING(X)(BLACK)
Bracket, steering (black); |
43750-93J02-0EP |
— | ||
| replacement | |||||
|
7
|
7
43750-93J03-0EP BRACKET COMP,STEERING(X)Bracket, steering (black); |
43750-93J03-0EP |
US $1,077.12 |
||
|
8
|
8
09125-06063-000 SCREW(6X10)Screw, mt brkt to swivel lead (6x10); |
09125-06063-000 |
from US $1.28 |
||
|
9
|
9
09160-39001-000 WASHER(39.5X64X1)Washer (39.5x64x1.0) Washer, swivel bracket (39.5x64x1.0); |
09160-39001-000 |
from US $2.13 |
||
|
10
|
10
09181-39001-000 SHIM(39.5X64X0.3)Shim (39.5x64x0.3) Shim, swivel bracket (39.5x64x0.3); |
09181-39001-000 |
from US $2.56 |
||
|
11
|
11
09282-39001-000 SEAL,OIL(39X51X5)Seal, oil Seal, pilot shaft oil; |
09282-39001-000 |
from US $5.12 |
||
|
12
|
12
09380-38003-000 CIRCLIPCirclip, pilot shaft lower; |
09380-38003-000 |
from US $5.76 |
||
|
13
|
13
41220-93J01-000
Lever, tilt lock
lever & link set,tilt lock |
41220-93J01-000 |
— | ||
|
13
|
13
41220-93J11-000
LEVER,TILT LOCK
Df300t:980792~, df300z:980285~ |
41220-93J11-000 |
— | ||
| replacement | |||||
|
13
|
13
41220-93J12-000 LEVER,TILT LOCKDf300t:980792~, df300z:980285~ |
41220-93J12-000 |
US $60.80 |
||
|
14
|
14
41234-93J00-000
Lever, tilt lock port
lever & link set,tilt lock |
41234-93J00-000 |
— | ||
| replacement | |||||
|
14
|
14
41200-93811-000 LEVER & LINK SET,TILT LOCKlever & link set,tilt lock |
41200-93811-000 |
US $174.40 |
||
|
14
|
14
41234-93J11-000
LEVER,TILT LOCK PORT
Df300t:980792~, df300z:980285~ |
41234-93J11-000 |
— | ||
| replacement | |||||
|
14
|
14
41234-93J12-000 LEVER,TILT LOCK PORTDf300t:980792~, df300z:980285~ |
41234-93J12-000 |
US $28 |
||
|
15
|
15
41224-95E01-000 BUSH,TILT STOPPER RODBush, tilt stopper rod |
41224-95E01-000 |
from US $4.64 |
||
|
16
|
16
41230-95E00-000 LINK,TILT LOCK LEVERLink, tilt lock lever |
41230-95E00-000 |
US $12.16 |
||
|
16
|
16
41230-96J00-000 LINK,TILT LOCK LEVERDf300t:980792~, df300z:980285~ |
41230-96J00-000 |
US $16.49 |
||
|
17
|
17
41233-95E10-000 BRACKET,TILT LOCK SPRINGBracket, tilt lock spring |
41233-95E10-000 |
from US $3.20 |
||
|
18
|
18
09125-06063-000 SCREW(6X10)Screw, tilt lock spr (6x10); |
09125-06063-000 |
from US $1.28 |
||
|
19
|
19
09140-10032-000 NUTNut, tilt lock lever port; |
09140-10032-000 |
from US $1.76 |
||
|
20
|
20
09160-06082-000 WASHER(6.5X13X1.0)Washer, tilt lock lever link (6.5x13x1.0); |
09160-06082-000 |
from US $0.96 |
||
|
21
|
21
09204-01006-000 PINPin, cotter Pin, tilt lk lever link cotter; |
09204-01006-000 |
from US $0.81 |
||
|
22
|
22
09440-19028-000 SPRINGSpring, tilt lock shaft; |
09440-19028-000 |
from US $1.92 |
||
|
23
|
23
09443-10043-000 SPRINGSpring, tilt lock; |
09443-10043-000 |
from US $1.92 |
||
