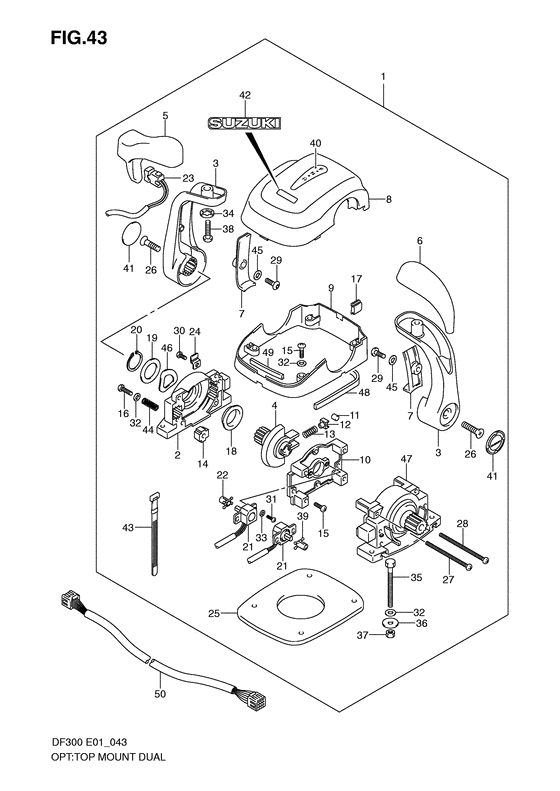

Top mount dual (Optional;) Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-98J10-000
Remote control assy
|
67200-98J10-000 |
— | ||
| replacements | |||||
|
1
|
1
67200-98J14-000
REMOTE CONTROL ASSY,MULTIPLE
|
67200-98J14-000 |
— | ||
|
1
|
1
67200-98J15-000
Remote Control Assy,multiple
|
67200-98J15-000 |
— | ||
|
1
|
1
67200-98J16-000 Remote Control Assy,multiple |
67200-98J16-000 |
US $4,198.40 |
||
|
2
|
2
67211-98J00-000
HOUSING,L
Housing (l); |
67211-98J00-000 |
— | ||
|
3
|
3
67251-98J00-000 LEVER,HANDLE |
67251-98J00-000 |
US $133.22 |
||
|
4
|
4
67246-98J00-000 SHAFT,DRIVE |
67246-98J00-000 |
US $51.52 |
||
|
5
|
5
67261-98J00-000 GRIP,NO.1 |
67261-98J00-000 |
US $9.20 |
||
|
6
|
6
67261-98J10-000 GRIP,NO.2 |
67261-98J10-000 |
US $8.50 |
||
|
7
|
7
67263-98J00-000 COVER,LEVER |
67263-98J00-000 |
US $32.57 |
||
|
8
|
8
67212-98J10-000 COVER,UPR |
67212-98J10-000 |
US $125.49 |
||
|
9
|
9
67271-98J10-000
COVER,BOTTOM
|
67271-98J10-000 |
— | ||
|
10
|
10
67222-98J00-000 PANEL ASSY,BACK |
67222-98J00-000 |
US $25.76 |
||
|
11
|
11
67236-98J00-000 ROLLER,DETENTRooler, detent Rooler, detent; |
67236-98J00-000 |
US $3.53 |
||
|
12
|
12
67235-98J00-000 GUIDE,DETENT ROLERGuide, detent rooler Guide, detent rooler; |
67235-98J00-000 |
US $2.91 |
||
|
13
|
13
67237-98J00-000 SPRING,DETENT |
67237-98J00-000 |
US $4.20 |
||
|
14
|
14
67223-98J00-000 PAD,BRAKE |
67223-98J00-000 |
US $8.76 |
||
|
15
|
15
67296-98J50-000 SCREW(5X18)Screw, bottom cover Screw, bottom cover; |
67296-98J50-000 |
US $2.24 |
||
|
16
|
16
67296-98J70-000
SCREW(5X20)
|
67296-98J70-000 |
— | ||
|
17
|
17
67272-98J00-000 GROMMET,COVERGrommet, cover Grommet, cover; |
67272-98J00-000 |
US $5.19 |
||
|
18
|
18
67252-98J00-000 BUSH,DRIVE SHAFTBush, drive shaft Bush, drive shaft; |
67252-98J00-000 |
US $3.35 |
||
|
19
|
19
67288-98J20-000 WASHER |
67288-98J20-000 |
US $4.78 |
||
|
20
|
20
67292-98J00-000 C RINGC-ring C-ring; |
67292-98J00-000 |
US $6 |
||
|
21
|
21
15980-98J00-000 POTENTIOMETER |
15980-98J00-000 |
US $290.32 |
||
|
22
|
22
67227-98J10-000 LEVER,POTENTIOMETER NO.2 |
67227-98J10-000 |
US $2.91 |
||
|
23
|
23
37850-98J00-000
Switch assy, ptt
|
37850-98J00-000 |
— | ||
| replacements | |||||
|
23
|
23
37850-98J02-000
SWITCH ASSY,PTT
|
37850-98J02-000 |
— | ||
|
23
|
23
37850-98J03-000 Switch Assy,ptt |
37850-98J03-000 |
from US $54.72 |
||
|
24
|
24
67269-98J00-000
CLAMP,LEAD
|
67269-98J00-000 |
— | ||
| replacement | |||||
|
24
|
24
67269-98J01-000 Clamp,lead |
67269-98J01-000 |
US $4.93 |
||
|
25
|
25
67273-98J20-000 PACKING |
67273-98J20-000 |
US $4.89 |
||
|
26
|
26
67296-98J60-000 SCREW(8X30)Screw (8x30); |
67296-98J60-000 |
US $4.27 |
||
|
27
|
27
67296-98J30-000 SCREW(5X70)Screw (5x70); |
67296-98J30-000 |
US $6.51 |
||
|
28
|
28
67296-98J40-000
SCREW(5X80)
Screw (5x80); |
67296-98J40-000 |
— | ||
|
29
|
29
67296-98J80-000
SCREW(5X14)
Screw, lever cover; |
67296-98J80-000 |
— | ||
| replacement | |||||
|
29
|
29
67296-98JG0-000 SCREW(5X14)Screw, lever cover; |
67296-98JG0-000 |
US $3.86 |
||
|
30
|
30
67296-98J00-000 SCREW(5X12)Screw, clamp; |
67296-98J00-000 |
US $2.13 |
||
|
31
|
31
67296-94300-000 SCREW(4X10) |
67296-94300-000 |
US $0.92 |
||
|
32
|
32
67288-98J40-000 WASHERWasher, bottom cover; |
67288-98J40-000 |
US $2.13 |
||
|
33
|
33
67288-98J00-000 WASHERWasher, potentiometer Washer, potentiometer; |
67288-98J00-000 |
US $1.77 |
||
|
34
|
34
67288-92E20-000 WASHERWasher; |
67288-92E20-000 |
US $1.77 |
||
|
35
|
35
67226-98J00-000 BOLT(5X50) |
67226-98J00-000 |
US $3.02 |
||
|
36
|
36
09160-05024-000 WASHER(5.5X16X1.5)Washer (5.5x16x1.5); |
09160-05024-000 |
from US $2.45 |
||
|
37
|
37
67287-92E00-000 NUT |
67287-92E00-000 |
US $1.77 |
||
|
38
|
38
67296-98J90-000 SCREW(8X30)Screw (8x30); |
67296-98J90-000 |
US $2.24 |
||
|
39
|
39
67227-98J00-000 LEVER,POTENTIOMETER NO.1 |
67227-98J00-000 |
US $2.91 |
||
|
40
|
40
67284-98J00-000 MARK(F-N-R)Mark (f-n-r); |
67284-98J00-000 |
US $30.40 |
||
|
41
|
41
68165-98J00-000 MARK,LEVER(SUZUKI)Mark, lever (suzuki); |
68165-98J00-000 |
US $15.46 |
||
|
42
|
42
68165-98J10-000 EMBLEM,SUZUKIEmblem (suzuki); |
68165-98J10-000 |
US $4.82 |
||
|
43
|
43
67269-98J10-000 BAND |
67269-98J10-000 |
US $3.31 |
||
|
44
|
44
67288-98J10-000 WASHER |
67288-98J10-000 |
US $3.75 |
||
|
45
|
45
67288-98J30-000 WASHERWasher, lever cover; |
67288-98J30-000 |
US $3.39 |
||
|
46
|
46
67228-98J50-000 WASHER,WAVE |
67228-98J50-000 |
US $3.83 |
||
|
47
|
47
67211-98J10-000
HOUSING,R
Housing (r); |
67211-98J10-000 |
— | ||
|
48
|
48
67273-98J10-000 PACKING,FRONTPacking, front; |
67273-98J10-000 |
US $17.26 |
||
|
49
|
49
67273-98J30-000 PACKING,RRPacking, rear; |
67273-98J30-000 |
US $9.68 |
||
|
50
|
50
36620-98J00-000
Wire assy, remote control
L:6500 |
36620-98J00-000 |
— | ||
| replacements | |||||
|
50
|
50
36620-98J30-000
WIRE ASSY,REMOTE CONTROL
L:6500 |
36620-98J30-000 |
— | ||
|
50
|
50
36620-98J31-000
Wire Assy, Remote Control
L:6500 |
36620-98J31-000 |
— | ||
|
50
|
50
36620-98J32-000
Wire Assy,remote Control
L:6500 |
36620-98J32-000 |
— | ||
|
50
|
50
36620-98J10-000
Wire assy, remote control
L:9500 |
36620-98J10-000 |
— | ||
| replacements | |||||
|
50
|
50
36620-98J40-000
WIRE ASSY,REMOTE CONTROL
L:9500 |
36620-98J40-000 |
— | ||
|
50
|
50
36620-98J41-000
Wire Assy, Remote Control
L:9500 |
36620-98J41-000 |
— | ||
|
50
|
50
36620-98J42-000 Wire Assy,remote ControlL:9500 |
36620-98J42-000 |
US $298.08 |
||
