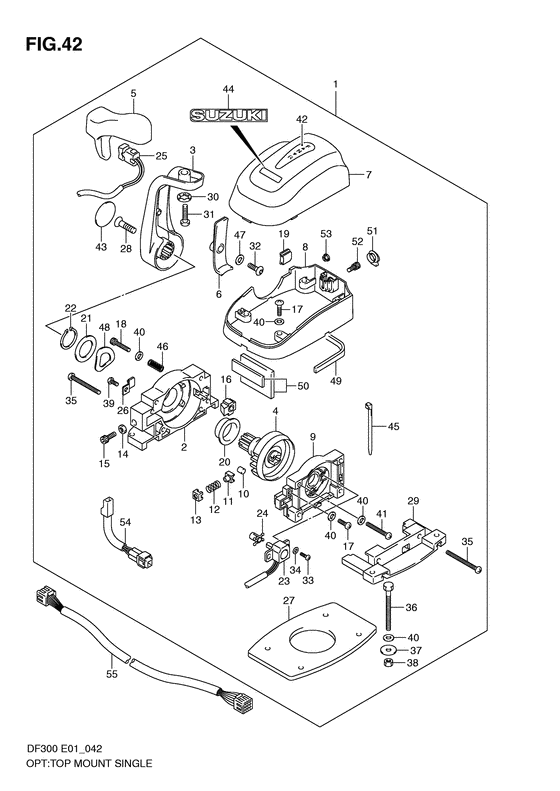

Top mount single (Optional; model: 08 later~) Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-98J03-000
REMOTE CONTROL ASSY
|
67200-98J03-000 |
— | ||
| replacements | |||||
|
1
|
1
67200-98J04-000
REMOTE CONTROL ASSY,SINGLE
|
67200-98J04-000 |
— | ||
|
1
|
1
67200-98J05-000 Remote Control Assy,single |
67200-98J05-000 |
US $2,585.60 |
||
|
2
|
2
67211-98J20-000 HOUSINGHousing (l); |
67211-98J20-000 |
US $94.21 |
||
|
3
|
3
67251-98J00-000 LEVER,HANDLE |
67251-98J00-000 |
US $133.22 |
||
|
4
|
4
67246-98J10-000 SHAFT,DRIVE REMOCON |
67246-98J10-000 |
US $83.54 |
||
|
5
|
5
67261-98J00-000 GRIP,NO.1 |
67261-98J00-000 |
US $9.20 |
||
|
6
|
6
67263-98J00-000 COVER,LEVER |
67263-98J00-000 |
US $32.57 |
||
|
7
|
7
67212-98J20-000 COVER,REMOCON UPR |
67212-98J20-000 |
US $128.80 |
||
|
8
|
8
67271-98J30-000 COVER,REMOCON BOTTOM |
67271-98J30-000 |
US $35.70 |
||
|
9
|
9
67222-98J10-000 PANEL ASSY,BACK |
67222-98J10-000 |
US $40.11 |
||
|
10
|
10
67236-98J00-000 ROLLER,DETENTRooler, detent Rooler, detent; |
67236-98J00-000 |
US $3.53 |
||
|
11
|
11
67235-98J10-000 GUIDE,DETENT ROLLER |
67235-98J10-000 |
US $14.09 |
||
|
12
|
12
67237-98J30-000 SPRING,DETENT |
67237-98J30-000 |
US $5.34 |
||
|
13
|
13
67233-98J10-000 HOLDER,DETENT SPRING |
67233-98J10-000 |
US $12.81 |
||
|
14
|
14
67287-92E00-000 NUTNut (m5); |
67287-92E00-000 |
US $1.77 |
||
|
15
|
15
67239-98J00-000 SCREW,DETENT ADJUSTMENTScrew, detent adjust (5x14); |
67239-98J00-000 |
US $6.40 |
||
|
16
|
16
67223-98J00-000 PAD,BRAKE |
67223-98J00-000 |
US $8.76 |
||
|
17
|
17
67296-98J50-000 SCREW(5X18)Screw, bottom cover Screw (5x18); |
67296-98J50-000 |
US $2.24 |
||
|
18
|
18
67296-98JA0-000 SCREW(4X10)Screw, brake adjust (5x30); |
67296-98JA0-000 |
US $3.79 |
||
|
19
|
19
67272-98J10-000 GROMMET,REMOCON COVER |
67272-98J10-000 |
US $5.19 |
||
|
20
|
20
67252-98J10-000 BUSH,DRIVE SHAFT |
67252-98J10-000 |
US $14.94 |
||
|
21
|
21
67288-98J20-000 WASHER |
67288-98J20-000 |
US $4.78 |
||
|
22
|
22
67292-98J00-000 C RINGC-ring C-ring; |
67292-98J00-000 |
US $6 |
||
|
23
|
23
15980-98J00-000 POTENTIOMETER |
15980-98J00-000 |
US $290.32 |
||
|
24
|
24
67227-98J10-000 LEVER,POTENTIOMETER NO.2 |
67227-98J10-000 |
US $2.91 |
||
|
25
|
25
37850-98J02-000
SWITCH ASSY,PTT
|
37850-98J02-000 |
— | ||
| replacement | |||||
|
25
|
25
37850-98J03-000 Switch Assy,ptt |
37850-98J03-000 |
from US $54.72 |
||
|
26
|
26
67269-98J00-000
CLAMP,LEAD
|
67269-98J00-000 |
— | ||
| replacement | |||||
|
26
|
26
67269-98J01-000 Clamp,lead |
67269-98J01-000 |
US $4.93 |
||
|
27
|
27
67273-98J00-000 PACKING |
67273-98J00-000 |
US $12.66 |
||
|
28
|
28
67296-98J60-000 SCREW(8X30)Screw (8x30); |
67296-98J60-000 |
US $4.27 |
||
|
29
|
29
67274-98J00-000 FLANGE,BASE |
67274-98J00-000 |
US $90.16 |
||
|
30
|
30
67288-92E20-000 WASHERWasher; |
67288-92E20-000 |
US $1.77 |
||
|
31
|
31
67296-98J90-000 SCREW(8X30) |
67296-98J90-000 |
US $2.24 |
||
|
32
|
32
67296-98J80-000
SCREW(5X14)
Screw (5x14); |
67296-98J80-000 |
— | ||
| replacement | |||||
|
32
|
32
67296-98JG0-000 SCREW(5X14)Screw (5x14); |
67296-98JG0-000 |
US $3.86 |
||
|
33
|
33
67296-94300-000 SCREW(4X10)Screw (4x10); |
67296-94300-000 |
US $0.92 |
||
|
34
|
34
67288-98J00-000 WASHERWasher, potentiometer |
67288-98J00-000 |
US $1.77 |
||
|
35
|
35
67296-98J20-000 SCREW(5X50)Screw (5x50); |
67296-98J20-000 |
US $3.75 |
||
|
36
|
36
67226-98J00-000 BOLT(5X50)Bolt (5x50); |
67226-98J00-000 |
US $3.02 |
||
|
37
|
37
09160-05024-000 WASHER(5.5X16X1.5) |
09160-05024-000 |
from US $2.45 |
||
|
38
|
38
67287-92E00-000 NUT |
67287-92E00-000 |
US $1.77 |
||
|
39
|
39
67296-98J00-000 SCREW(5X12)Screw (5x12); |
67296-98J00-000 |
US $2.13 |
||
|
40
|
40
67288-98J40-000 WASHER |
67288-98J40-000 |
US $2.13 |
||
|
41
|
41
67296-98J10-000 SCREW(5X35)Screw (5x35); |
67296-98J10-000 |
US $2.80 |
||
|
42
|
42
67284-98J00-000 MARK(F-N-R)Mark (f-n-r); |
67284-98J00-000 |
US $30.40 |
||
|
43
|
43
68165-98J00-000 MARK,LEVER(SUZUKI)Mark, lever (suzuki); |
68165-98J00-000 |
US $15.46 |
||
|
44
|
44
68165-98J10-000 EMBLEM,SUZUKIEmblem (suzuki); |
68165-98J10-000 |
US $4.82 |
||
|
45
|
45
67269-98J30-000 BAND |
67269-98J30-000 |
US $3.31 |
||
|
46
|
46
67288-98J10-000 WASHER |
67288-98J10-000 |
US $3.75 |
||
|
47
|
47
67288-98J30-000 WASHER |
67288-98J30-000 |
US $3.39 |
||
|
48
|
48
67228-98J50-000 WASHER,WAVE |
67228-98J50-000 |
US $3.83 |
||
|
49
|
49
67273-98J10-000 PACKING,FRONTPacking (front); |
67273-98J10-000 |
US $17.26 |
||
|
50
|
50
67273-98J30-000 PACKING,RRPacking (rear); |
67273-98J30-000 |
US $9.68 |
||
|
51
|
51
67277-98J00-000 GROMMET,REMOCON BOTTOM COVER |
67277-98J00-000 |
US $6.54 |
||
|
52
|
52
67296-98JF0-000 BOLT(5X14)Bolt (5x14); |
67296-98JF0-000 |
US $3.75 |
||
|
53
|
53
67297-98J00-000 NUT,UPR COVER BOLT |
67297-98J00-000 |
US $2.13 |
||
|
54
|
54
36890-98J00-000 HARNESS,CONDENSER ADAPTER |
36890-98J00-000 |
US $120.80 |
||
|
55
|
55
36620-98J00-000
Wire assy, remote control
L:6500 |
36620-98J00-000 |
— | ||
| replacements | |||||
|
55
|
55
36620-98J30-000
WIRE ASSY,REMOTE CONTROL
L:6500 |
36620-98J30-000 |
— | ||
|
55
|
55
36620-98J31-000
Wire Assy, Remote Control
L:6500 |
36620-98J31-000 |
— | ||
|
55
|
55
36620-98J32-000
Wire Assy,remote Control
L:6500 |
36620-98J32-000 |
— | ||
|
55
|
55
36620-98J10-000
Wire assy, remote control
L:9500 |
36620-98J10-000 |
— | ||
| replacements | |||||
|
55
|
55
36620-98J40-000
WIRE ASSY,REMOTE CONTROL
L:9500 |
36620-98J40-000 |
— | ||
|
55
|
55
36620-98J41-000
Wire Assy, Remote Control
L:9500 |
36620-98J41-000 |
— | ||
|
55
|
55
36620-98J42-000 Wire Assy,remote ControlL:9500 |
36620-98J42-000 |
US $298.08 |
||
