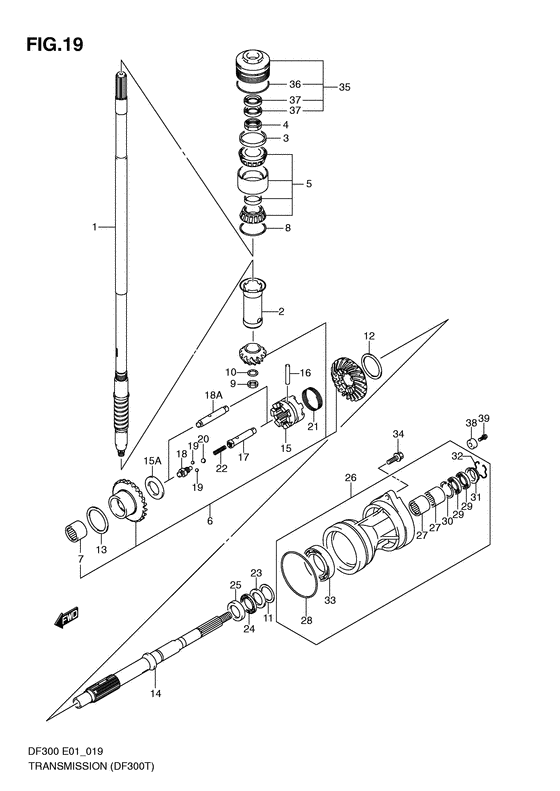

Transmission (Df300t) Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-98J01-000 SHAFT,DRIVE(X)Shaft, drive (x); |
57110-98J01-000 |
from US $645.82 |
||
|
1
|
1
57110-98J11-000 SHAFT,DRIVE(XX)Shaft, drive (xx); |
57110-98J11-000 |
US $880 |
||
|
2
|
2
57133-98J00-000 COLLAR,DRIVE SHAFT |
57133-98J00-000 |
from US $9.47 |
||
|
3
|
3
57134-93J00-000 SPACER,DRIVE SHAFT BEARING |
57134-93J00-000 |
from US $14.88 |
||
|
4
|
4
09159-28003-000 NUTNut, drive shaft bearing (m28) Nut, drive shaft bearing; |
09159-28003-000 |
US $33.49 |
||
|
5
|
5
09269-32001-000
BEARING(32X66X49)
Bearing, drive shaft; |
09269-32001-000 |
— | ||
| replacement | |||||
|
5
|
5
09269-32002-000 BEARING(32X66X49)Bearing, drive shaft; |
09269-32002-000 |
from US $136.80 |
||
|
6
|
6
57300-98820-000
Pinion/gear set
|
57300-98820-000 |
— | ||
| replacement | |||||
|
6
|
6
57300-98880-000 PINION & GEAR SET |
57300-98880-000 |
from US $676.80 |
||
|
6
|
6
57300-98880-000 PINION & GEAR SETModel:10~ |
57300-98880-000 |
from US $676.80 |
||
|
7
|
7
09263-25067-000 BEARING(25X32X26)Bearing, prop shaft forward (25x32x26) Bearing, prop shaft forward (25x32x26); |
09263-25067-000 |
from US $13.28 |
||
|
8
|
8
09181-60004-000 SHIM(60X66X0.45)Shim (t:0.45); |
09181-60004-000 |
from US $2.56 |
||
|
8
|
8
09181-60005-000 SHIM(60X66X0.5)Shim (t:0.50); |
09181-60005-000 |
from US $6.46 |
||
|
8
|
8
09181-60006-000 SHIM(60X66X0.55)Shim (t:0.55); |
09181-60006-000 |
from US $3.60 |
||
|
8
|
8
09181-60007-000 SHIM(60X66X0.6)Shim (t:0.60); |
09181-60007-000 |
from US $6.46 |
||
|
8
|
8
09181-60008-000 SHIM(60X66X0.65)Shim (t:0.65); |
09181-60008-000 |
from US $3.60 |
||
|
8
|
8
09181-60009-000 SHIM(60X66X0.7)Shim (t:0.70); |
09181-60009-000 |
from US $6.82 |
||
|
8
|
8
09181-60010-000 SHIM(60X66X0.75)Shim (t:0.75); |
09181-60010-000 |
from US $3.60 |
||
|
8
|
8
09181-60011-000 SHIM(60X66X0.8)Shim (t:0.80); |
09181-60011-000 |
from US $6.46 |
||
|
8
|
8
09181-60012-000 SHIM(60X66X0.85)Shim (t:0.85); |
09181-60012-000 |
from US $6.82 |
||
|
8
|
8
09181-60013-000 SHIM(60X66X0.9)Shim (t:0.90); |
09181-60013-000 |
from US $6.46 |
||
|
9
|
9
09140-16026-000 NUTNut, pinion Nut, pinion; |
09140-16026-000 |
from US $2.74 |
||
|
10
|
10
08221-16256-000 SHIMWasher, pinion nut Washer, pinion nut; |
08221-16256-000 |
from US $1.38 |
||
|
11
|
11
09160-35015-000 WASHER(35X46X0.6)Washer (35x46x0.6); Prop shaft rev |
09160-35015-000 |
from US $2.88 |
||
|
11
|
11
09160-35014-000 WASHER(35X46X0.7)Washer (35x46x0.7); |
09160-35014-000 |
from US $2.88 |
||
|
11
|
11
09160-35013-000 WASHER(35X46X0.8)Washer (35x46x0.8); |
09160-35013-000 |
from US $2.88 |
||
|
11
|
11
09160-35006-000 WASHER(35X46X0.9)Washer (35x46x0.9); |
09160-35006-000 |
from US $1.73 |
||
|
11
|
11
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) Washer (35x46x0.95); |
09160-35008-000 |
from US $4.19 |
||
|
11
|
11
09160-35002-000 WASHER(35X46X1)Washer (35x46x1.0); |
09160-35002-000 |
from US $1.53 |
||
|
11
|
11
09160-35009-000 WASHER(35X46X1.05)Washer (35x46x1.05); |
09160-35009-000 |
from US $4.19 |
||
|
11
|
11
09160-35003-000 WASHER(35X46X1.1)Washer (35x46x1.1); |
09160-35003-000 |
from US $2.24 |
||
|
11
|
11
09160-35010-000 WASHER(35X46X1.15)Washer (35x46x1.15); |
09160-35010-000 |
from US $4.19 |
||
|
12
|
12
09181-50020-000 SHIM(50X65X0.45)Shim (50x65x0.45); Rev gear |
09181-50020-000 |
from US $2.56 |
||
|
12
|
12
09181-50021-000 SHIM(50X65X0.5)Shim (50x65x0.50); |
09181-50021-000 |
from US $2.03 |
||
|
12
|
12
09181-50022-000 SHIM(50X65X0.55)Shim (50x65x0.55); |
09181-50022-000 |
from US $5.31 |
||
|
12
|
12
09181-50023-000 SHIM(50X65X0.6)Shim (50x65x0.60); |
09181-50023-000 |
from US $2.03 |
||
|
12
|
12
09181-50024-000 SHIM(50X65X0.65)Shim (t:0.65) Shim (50x65x0.65); |
09181-50024-000 |
from US $2.03 |
||
|
12
|
12
09181-50025-000 SHIM(50X65X0.7)Shim (t:0.70) Shim (50x65x0.70); |
09181-50025-000 |
from US $2.03 |
||
|
12
|
12
09181-50026-000 SHIM(50X65X0.75)Shim (t:0.75) Shim (50x65x0.75); |
09181-50026-000 |
from US $2.03 |
||
|
12
|
12
09181-50027-000 SHIM(50X65X0.8)Shim (t:0.80) Shim (50x65x0.80); |
09181-50027-000 |
from US $2.03 |
||
|
12
|
12
09181-50028-000 SHIM(50X65X0.85)Shim (t:0.85) Shim (50x65x0.85); |
09181-50028-000 |
from US $2.03 |
||
|
12
|
12
09181-50029-000 SHIM(50X65X0.95)Shim (t:0.90) Shim (50x65x0.90); |
09181-50029-000 |
from US $2.03 |
||
|
13
|
13
09181-50020-000 SHIM(50X65X0.45)Shim (50x65x0.45); Fwd gear |
09181-50020-000 |
from US $2.56 |
||
|
13
|
13
09181-50021-000 SHIM(50X65X0.5)Shim (50x65x0.50); |
09181-50021-000 |
from US $2.03 |
||
|
13
|
13
09181-50022-000 SHIM(50X65X0.55)Shim (50x65x0.55); |
09181-50022-000 |
from US $5.31 |
||
|
13
|
13
09181-50023-000 SHIM(50X65X0.6)Shim (50x65x0.60); |
09181-50023-000 |
from US $2.03 |
||
|
13
|
13
09181-50024-000 SHIM(50X65X0.65)Shim (t:0.65) Shim (50x65x0.65); |
09181-50024-000 |
from US $2.03 |
||
|
13
|
13
09181-50025-000 SHIM(50X65X0.7)Shim (t:0.70) Shim (50x65x0.70); |
09181-50025-000 |
from US $2.03 |
||
|
13
|
13
09181-50026-000 SHIM(50X65X0.75)Shim (t:0.75) Shim (50x65x0.75); |
09181-50026-000 |
from US $2.03 |
||
|
13
|
13
09181-50027-000 SHIM(50X65X0.8)Shim (t:0.80) Shim (50x65x0.80); |
09181-50027-000 |
from US $2.03 |
||
|
13
|
13
09181-50028-000 SHIM(50X65X0.85)Shim (t:0.85) Shim (50x65x0.85); |
09181-50028-000 |
from US $2.03 |
||
|
13
|
13
09181-50029-000 SHIM(50X65X0.95)Shim (t:0.90) Shim (50x65x0.90); |
09181-50029-000 |
from US $2.03 |
||
|
14
|
14
57610-98J00-000
Shaft, propeller
|
57610-98J00-000 |
— | ||
| replacements | |||||
|
14
|
14
09160-25019-000
WASHER(25X38X2.5)
|
09160-25019-000 |
— | ||
|
14
|
14
57610-98J20-000 SHAFT,PROPELLER |
57610-98J20-000 |
US $408.32 |
||
|
14
|
14
57610-98J20-000 SHAFT,PROPELLERModel:08~ |
57610-98J20-000 |
US $408.32 |
||
|
15
|
15
57621-98J00-000
Shifter, clutch dog
|
57621-98J00-000 |
— | ||
| replacement | |||||
|
15
|
15
57621-98J10-000 SHIFTER,CLUTCH DOG |
57621-98J10-000 |
US $255.76 |
||
|
15
|
15
57621-98J10-000 SHIFTER,CLUTCH DOGModel:08~ |
57621-98J10-000 |
US $255.76 |
||
|
15A
|
15A
09160-25080-000 WASHER(25X38X1)Model:08~ |
09160-25080-000 |
from US $14.20 |
||
|
16
|
16
09202-08011-000 PIN(8X53) |
09202-08011-000 |
from US $15.55 |
||
|
17
|
17
57631-98J00-000
Pin, connector no.1
Model:07~09, pin set,connector |
57631-98J00-000 |
— | ||
| replacement | |||||
|
17
|
17
57630-98810-000 PIN SET,CONNECTORModel:07~09, pin set,connector |
57630-98810-000 |
from US $24.26 |
||
|
18
|
18
57632-98J00-000
Pin, connector no.2
Model:07~09, pin set,connector |
57632-98J00-000 |
— | ||
|
18A
|
18A
57631-98J10-000 PIN,CONNECTORModel:10~ |
57631-98J10-000 |
from US $32.33 |
||
|
19
|
19
06111-07004-000 BALLBall, detent no.1; |
06111-07004-000 |
from US $0.76 |
||
|
20
|
20
06111-11004-000 BALLBall, detent no.2; Model:07~09 |
06111-11004-000 |
from US $1.28 |
||
|
21
|
21
09440-56001-000 SPRING |
09440-56001-000 |
from US $4.55 |
||
|
22
|
22
09440-09040-000 SPRINGSpring, detent; |
09440-09040-000 |
from US $2.84 |
||
|
23
|
23
09160-30056-000 WASHER(32X47X3)Washer (32x47x3.0) Washer, prop rev (32x47x3); |
09160-30056-000 |
from US $15.97 |
||
|
24
|
24
09269-30014-000 BEARING(30X47X2)Bearing (30x47x2.0) Bearing, prop shaft rev thrust (30x47x2); |
09269-30014-000 |
from US $6.72 |
||
|
25
|
25
09160-30055-000 WASHER(30X47X6)Washer (30x47x6.0) Washer, prop rev (30x47x6); |
09160-30055-000 |
from US $72.21 |
||
|
26
|
26
56120-98J00-0EP
HOUSING,PROPELLER SFT BRG(BL)
Housing, prop sft brg (black); |
56120-98J00-0EP |
— | ||
| replacement | |||||
|
26
|
26
56120-98J01-0EP HOUSING,PROP SHAFT BRG(BLACK)Housing, prop sft brg (black); |
56120-98J01-0EP |
US $485.76 |
||
|
27
|
27
09263-30023-000
BEARING(30X40X25)
|
09263-30023-000 |
— | ||
| replacement | |||||
|
27
|
27
09263-30063-000 BEARING(30X40X25) |
09263-30063-000 |
from US $30.40 |
||
|
28
|
28
09280-00040-000 O RING(D:3.1,ID:104.4)O ring (id:104.4,dd:3.1) O ring (d:3.1,id:104.4); |
09280-00040-000 |
from US $5 |
||
|
29
|
29
09282-30006-000 SEAL,OIL(30X45X6)Seal, oil (30x45x6) |
09282-30006-000 |
from US $4.14 |
||
|
30
|
30
09381-40003-000 CIRCLIP |
09381-40003-000 |
from US $1.98 |
||
|
31
|
31
56123-93J00-000 PROTECTOR,OIL SEAL |
56123-93J00-000 |
US $3.68 |
||
|
32
|
32
09387-45001-000 RINGCirclip Ring, prop shaft oil seal; |
09387-45001-000 |
from US $2.08 |
||
|
33
|
33
08113-62100-000 BEARINGBearing, reverse gear; |
08113-62100-000 |
US $27.36 |
||
|
34
|
34
09116-10145-000
Bolt, prop sft brg hsg
|
09116-10145-000 |
— | ||
| replacement | |||||
|
34
|
34
09116-10177-000 BOLT(10X35) |
09116-10177-000 |
from US $10.59 |
||
|
35
|
35
56130-93J00-000
Housing, drive shaft brg
|
56130-93J00-000 |
— | ||
| replacement | |||||
|
35
|
35
56130-93J02-000 HOUSING,DRIVE SHAFT BRG |
56130-93J02-000 |
from US $130.66 |
||
|
36
|
36
09280-66004-000 O RING(D:3.1,ID:65.4)O ring (id:65.4,dd:3.1) O ring (d:3.1,id:65.4); |
09280-66004-000 |
from US $4.48 |
||
|
37
|
37
09282-24004-000 SEAL,OIL(24X40X7)Oil seal |
09282-24004-000 |
from US $5.62 |
||
|
38
|
38
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
38
|
38
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.58 |
||
|
39
|
39
09103-06281-000 BOLT(6X14)Bolt, protection anode Bolt, anode protection; |
09103-06281-000 |
from US $1.44 |
||
