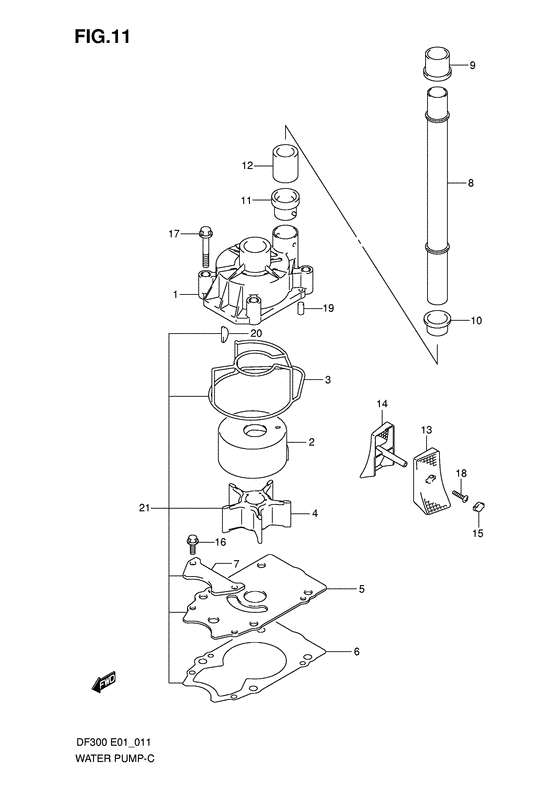

Water pump Diagram Suzuki DF300 Z/TX/XX
- Year
- 2010
- Model
- DF300
- Year
- 2010
- Engine
- 30002F-010001~ (30002Z-010001~)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17410-93J00-000
Case, water pump
|
17410-93J00-000 |
— | ||
| replacement | |||||
|
1
|
1
17410-93J01-000 CASE,WATER PUMP |
17410-93J01-000 |
from US $44.80 |
||
|
2
|
2
17413-93J02-000 SLEEVE,WATER PUMP CASE |
17413-93J02-000 |
from US $18.95 |
||
|
2
|
2
17413-93J12-000 SLEEVE,WATER PUMP CASEE40 |
17413-93J12-000 |
US $61.57 |
||
|
3
|
3
17416-93J00-000
SEALING,WATER PUMP CASE
|
17416-93J00-000 |
— | ||
| replacement | |||||
|
3
|
3
17416-93J01-000 Seal,water Pump Case |
17416-93J01-000 |
US $10.88 |
||
|
4
|
4
17461-93J00-000
Impeller,Water Pump
|
17461-93J00-000 |
— | ||
| replacement | |||||
|
4
|
4
17461-93J01-000
Impeller,Water Pump
|
17461-93J01-000 |
— | ||
|
5
|
5
17471-98J01-000
PANEL,PUMP CASE UNDER
|
17471-98J01-000 |
— | ||
| replacement | |||||
|
5
|
5
17471-98J02-000 PANELPUMP CASE UNDER |
17471-98J02-000 |
US $14.88 |
||
|
5
|
5
17471-98J11-000 PANEL,PUMP CASE UNDERE40 |
17471-98J11-000 |
US $62.93 |
||
|
6
|
6
17472-98J00-000 GASKET,PUMP CASE PANEL |
17472-98J00-000 |
US $5.28 |
||
|
7
|
7
17473-98J00-000 PANEL,WATER PUMP NO.2 |
17473-98J00-000 |
US $6.29 |
||
|
8
|
8
17561-93J03-000 TUBE,WATER(X)Tube, water (x); |
17561-93J03-000 |
from US $31.92 |
||
|
8
|
8
17561-93J13-000 TUBE,WATER(XX)Tube, water (xx); |
17561-93J13-000 |
from US $39.52 |
||
|
9
|
9
17562-93J00-000
Bush, water tube upper
|
17562-93J00-000 |
— | ||
| replacement | |||||
|
9
|
9
17562-93J01-000 BUSH,WATER TUBE UPPER |
17562-93J01-000 |
from US $3.52 |
||
|
10
|
10
17563-93J00-000
BUSH,WATER TUBE LWR
|
17563-93J00-000 |
— | ||
| replacement | |||||
|
10
|
10
17563-93J01-000 Bush,water Tube Lower |
17563-93J01-000 |
from US $3.36 |
||
|
11
|
11
17564-93J00-000
BUSH,WATER PUMP CASE
|
17564-93J00-000 |
— | ||
| replacement | |||||
|
11
|
11
17564-93J01-000 Bush,water Pump Case |
17564-93J01-000 |
from US $3.80 |
||
|
12
|
12
17612-93J00-000 SPACER,WATER TUBE |
17612-93J00-000 |
from US $3.84 |
||
|
13
|
13
17631-98J00-000 FILTER,WATER PORT SIDE |
17631-98J00-000 |
from US $4.80 |
||
|
14
|
14
17632-98J00-000 FILTER,WATER STBD SIDE |
17632-98J00-000 |
from US $4.80 |
||
|
15
|
15
17633-98J00-000 CAP,WATER FILTER |
17633-98J00-000 |
from US $4.20 |
||
|
16
|
16
29116-93J00-000 BoltBolt, pump case panel; |
29116-93J00-000 |
US $1.60 |
||
|
17
|
17
09116-08131-000 BOLT(8X45)Bolt, case; |
09116-08131-000 |
from US $1.89 |
||
|
18
|
18
09132-04034-000 SCREW(4X18)Screw, filter tapping; |
09132-04034-000 |
from US $1.12 |
||
|
19
|
19
09202-06031-000 PIN(6X12)Pin, knock Pin, knock; |
09202-06031-000 |
from US $1.92 |
||
|
20
|
20
09420-05009-000 KEYKey, impeller; |
09420-05009-000 |
from US $8.35 |
||
|
21
|
21
17400-98J01-000
KIT,WATER PUMP REPAIR
Opt |
17400-98J01-000 |
— | ||
