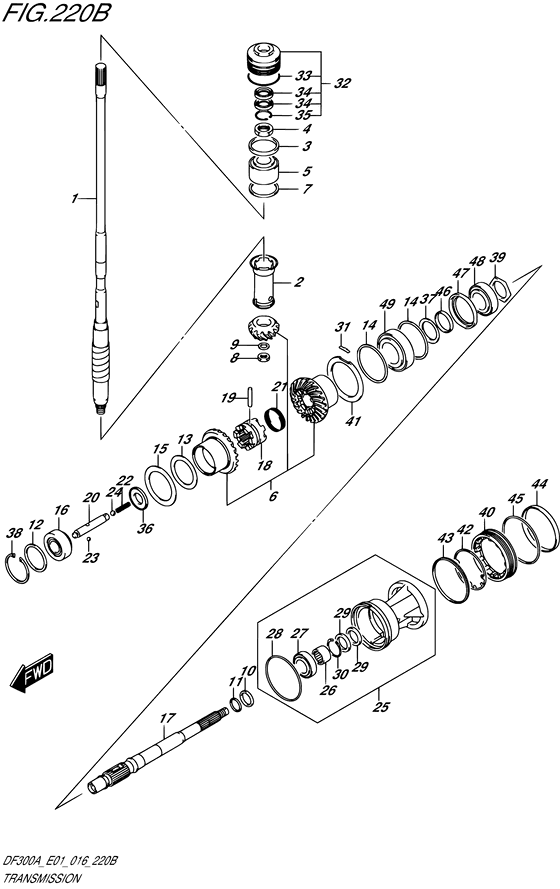

Transmission ((DF300A FROM VIN.612133, DF250A FROM VIN.610592)) Diagram Suzuki DF300A PX/XX
- Year
- 2016
- Model
- DF300A
- Year
- 2016
- Engine
- 30002P-610001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Shadow Black Metallic; Cool White (0EP; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-93L12-000 SHAFT COMP,DRIVE(X)W/TRANSOM(X) |
57110-93L12-000 |
from US $692.80 |
||
|
1
|
1
57110-93L22-000 SHAFT COMP,DRIVE(XX)W/TRANSOM(XX) |
57110-93L22-000 |
from US $692.80 |
||
|
2
|
2
57133-93L00-000 COLLAR,DRIVE SHAFT |
57133-93L00-000 |
US $7.14 |
||
|
3
|
3
57134-93J00-000 SPACER,DRIVE SHAFT BEARING |
57134-93J00-000 |
from US $14.88 |
||
|
4
|
4
09159-28003-000 NUTNut, drive shaft bearing (m28) |
09159-28003-000 |
US $33.49 |
||
|
5
|
5
09269-32002-000 BEARING(32X66X49) |
09269-32002-000 |
from US $136.80 |
||
|
6
|
6
57300-93L20-000 SET,GEAR |
57300-93L20-000 |
from US $798.40 |
||
|
7
|
7
09181-60004-000 SHIM(60X66X0.45) |
09181-60004-000 |
from US $2.56 |
||
|
7
|
7
09181-60005-000 SHIM(60X66X0.5) |
09181-60005-000 |
from US $6.46 |
||
|
7
|
7
09181-60006-000 SHIM(60X66X0.55) |
09181-60006-000 |
from US $3.60 |
||
|
7
|
7
09181-60007-000 SHIM(60X66X0.6) |
09181-60007-000 |
from US $6.46 |
||
|
7
|
7
09181-60008-000 SHIM(60X66X0.65) |
09181-60008-000 |
from US $3.60 |
||
|
7
|
7
09181-60009-000 SHIM(60X66X0.7) |
09181-60009-000 |
from US $6.82 |
||
|
7
|
7
09181-60010-000 SHIM(60X66X0.75) |
09181-60010-000 |
from US $3.60 |
||
|
7
|
7
09181-60011-000 SHIM(60X66X0.8) |
09181-60011-000 |
from US $6.46 |
||
|
7
|
7
09181-60012-000 SHIM(60X66X0.85) |
09181-60012-000 |
from US $6.82 |
||
|
7
|
7
09181-60013-000 SHIM(60X66X0.9) |
09181-60013-000 |
from US $6.46 |
||
|
8
|
8
09140-16026-000 NUTNut, pinion |
09140-16026-000 |
from US $2.74 |
||
|
9
|
9
08221-16256-000 SHIMWasher, pinion nut |
08221-16256-000 |
from US $1.38 |
||
|
10
|
10
09180-32006-000 SPACER(32.4X40X3)Spacer (32x40x3) REAR GEAR |
09180-32006-000 |
US $83.90 |
||
|
11
|
11
09181-32035-000 SHIM(32X37X0.5)REAR GEAR |
09181-32035-000 |
US $26.90 |
||
|
11
|
11
09181-32036-000 SHIM(32X37X0.55)REAR GEAR |
09181-32036-000 |
US $26.90 |
||
|
11
|
11
09181-32037-000 SHIM(32X37X0.6)REAR GEAR |
09181-32037-000 |
US $26.90 |
||
|
11
|
11
09181-32038-000 SHIM(32X37X0.65)REAR GEAR |
09181-32038-000 |
US $26.90 |
||
|
11
|
11
09181-32039-000 SHIM(32X37X0.7)REAR GEAR |
09181-32039-000 |
US $26.90 |
||
|
11
|
11
09181-32040-000 SHIM(32X37X0.75)REAR GEAR |
09181-32040-000 |
US $26.90 |
||
|
11
|
11
09181-32041-000 SHIM(32X37X0.8)REAR GEAR |
09181-32041-000 |
US $26.90 |
||
|
11
|
11
09181-32042-000 SHIM(32X37X0.85)REAR GEAR |
09181-32042-000 |
US $26.90 |
||
|
11
|
11
09181-32043-000 SHIM(32X37X0.9)REAR GEAR |
09181-32043-000 |
US $26.90 |
||
|
11
|
11
09181-32044-000 SHIM(32X37X0.95)REAR GEAR |
09181-32044-000 |
from US $3.80 |
||
|
12
|
12
09160-60012-000 WASHER(60X72X3)FRONT GEAR |
09160-60012-000 |
from US $7.97 |
||
|
13
|
13
09263-80002-000 BEARING (80X105X4)FRONT GEAR |
09263-80002-000 |
from US $73.60 |
||
|
14
|
14
09181-93101-000 SHIM,REAR GEAR (93.5X100X0.50)REAR GEAR |
09181-93101-000 |
from US $12.21 |
||
|
14
|
14
09181-93102-000 SHIM,REAR GEAR (93.5X100X0.55)REAR GEAR |
09181-93102-000 |
from US $12.21 |
||
|
14
|
14
09181-93103-000 SHIM,REAR GEAR (93.5X100X0.60)REAR GEAR |
09181-93103-000 |
from US $12.21 |
||
|
14
|
14
09181-93104-000 SHIM,REAR GEAR (93.5X100X0.65)REAR GEAR |
09181-93104-000 |
from US $12.21 |
||
|
14
|
14
09181-93105-000 SHIM,REAR GEAR (93.5X100X0.70)REAR GEAR |
09181-93105-000 |
from US $12.21 |
||
|
14
|
14
09181-93106-000 SHIM,REAR GEAR (93.5X100X0.75)REAR GEAR |
09181-93106-000 |
from US $12.21 |
||
|
14
|
14
09181-93107-000 SHIM,REAR GEAR (93.5X100X0.80)REAR GEAR |
09181-93107-000 |
from US $12.21 |
||
|
14
|
14
09181-93108-000 SHIM,REAR GEAR (93.5X100X0.85)REAR GEAR |
09181-93108-000 |
from US $12.21 |
||
|
14
|
14
09181-93109-000 SHIM,REAR GEAR (93.5X100X0.90)REAR GEAR |
09181-93109-000 |
from US $12.21 |
||
|
14
|
14
09181-93110-000 SHIM,REAR GEAR (93.5X100X0.95)REAR GEAR |
09181-93110-000 |
from US $12.21 |
||
|
14
|
14
09181-93111-000 SHIM,REAR GEAR (93.5X100X1.00)REAR GEAR |
09181-93111-000 |
from US $12.21 |
||
|
14
|
14
09181-93112-000 SHIM,REAR GEAR (93.5X100X1.05)REAR GEAR |
09181-93112-000 |
from US $12.21 |
||
|
14
|
14
09181-93113-000 SHIM,REAR GEAR (93.5X100X1.10)REAR GEAR |
09181-93113-000 |
from US $12.21 |
||
|
15
|
15
59171-93L00-000 SHIM,FRONT GEAR (81X103X3.50)FRONT GEAR |
59171-93L00-000 |
US $114.08 |
||
|
15
|
15
59171-93L10-000 SHIM,FRONT GEAR (81X103X3.55)FRONT GEAR |
59171-93L10-000 |
US $114.08 |
||
|
15
|
15
59171-93L20-000 SHIM,FRONT GEAR (81X103X3.60)FRONT GEAR |
59171-93L20-000 |
US $114.08 |
||
|
15
|
15
59171-93L30-000 SHIM,FRONT GEAR (81X103X3.65)FRONT GEAR |
59171-93L30-000 |
US $114.08 |
||
|
15
|
15
59171-93L40-000 SHIM,FRONT GEAR (81X103X3.70)FRONT GEAR |
59171-93L40-000 |
US $114.08 |
||
|
15
|
15
59171-93L50-000 SHIM,FRONT GEAR (81X103X3.75)FRONT GEAR |
59171-93L50-000 |
US $114.08 |
||
|
15
|
15
59171-93L60-000 SHIM,FRONT GEAR (81X103X3.80)FRONT GEAR |
59171-93L60-000 |
US $114.08 |
||
|
15
|
15
59171-93L70-000 SHIM,FRONT GEAR (81X103X3.85)FRONT GEAR |
59171-93L70-000 |
US $114.08 |
||
|
15
|
15
59171-93L80-000 SHIM,FRONT GEAR (81X103X3.90)FRONT GEAR |
59171-93L80-000 |
US $114.08 |
||
|
15
|
15
59171-93L90-000 SHIM,FRONT GEAR (81X103X3.95)FRONT GEAR |
59171-93L90-000 |
US $114.08 |
||
|
15
|
15
59171-93LA0-000 SHIM,FRONT GEAR (81X103X4.00)FRONT GEAR |
59171-93LA0-000 |
US $114.08 |
||
|
15
|
15
59171-93LB0-000 SHIM,FRONT GEAR (81X103X4.05)FRONT GEAR |
59171-93LB0-000 |
US $114.08 |
||
|
15
|
15
59171-93LC0-000 SHIM,FRONT GEAR (81X103X4.10)FRONT GEAR |
59171-93LC0-000 |
US $114.08 |
||
|
16
|
16
09265-30033-000 BEARING(30X72X28.75) |
09265-30033-000 |
from US $31.92 |
||
|
17
|
17
57610-93L10-000 SHAFT COMP,PROPELLER |
57610-93L10-000 |
US $368 |
||
|
18
|
18
57621-93L00-000 SHIFTER,CLUTCH DOG |
57621-93L00-000 |
US $192 |
||
|
19
|
19
09202-08013-000 PIN(8X55) |
09202-08013-000 |
from US $24.62 |
||
|
20
|
20
57631-93L01-000 PIN,CONNECTOR |
57631-93L01-000 |
US $32.94 |
||
|
21
|
21
09440-58001-000 SPRING |
09440-58001-000 |
from US $3.36 |
||
|
22
|
22
57617-93L00-000 SPRING,DETENT |
57617-93L00-000 |
US $1.60 |
||
|
23
|
23
06111-07004-000 BALLDETENT NO.1 |
06111-07004-000 |
from US $0.76 |
||
|
24
|
24
06111-11004-000 BALLDETENT NO.2 |
06111-11004-000 |
from US $1.28 |
||
|
25
|
25
56120-93L20-000
HOUSING,PROP SHAFT BRG
|
56120-93L20-000 |
— | ||
| replacement | |||||
|
25
|
25
56120-93L30-000 Housing Comp,Prop Shaft Brg |
56120-93L30-000 |
from US $291.20 |
||
|
26
|
26
09263-30063-000 BEARING(30X40X25) |
09263-30063-000 |
from US $30.40 |
||
|
27
|
27
09265-32003-000 BEARING(32X58X17) |
09265-32003-000 |
from US $23.57 |
||
|
28
|
28
09280-00047-000 O RING(D:3,ID:109) |
09280-00047-000 |
from US $6.24 |
||
|
29
|
29
09282-30006-000 SEAL,OIL(30X45X6)Seal, oil (30x45x6) |
09282-30006-000 |
from US $4.14 |
||
|
30
|
30
09381-40003-000 CIRCLIP |
09381-40003-000 |
from US $1.98 |
||
|
31
|
31
56147-93L00-000 SPACER,PROP SFT BRG HSG |
56147-93L00-000 |
from US $2.40 |
||
|
32
|
32
56130-93J02-000 HOUSING,DRIVE SHAFT BRG |
56130-93J02-000 |
from US $130.66 |
||
|
33
|
33
09280-66004-000 O RING(D:3.1,ID:65.4)O ring (id:65.4,dd:3.1) |
09280-66004-000 |
from US $4.48 |
||
|
34
|
34
09282-24004-000 SEAL,OIL(24X40X7)Oil seal |
09282-24004-000 |
from US $5.62 |
||
|
35
|
35
09381-40003-000 CIRCLIP |
09381-40003-000 |
from US $1.98 |
||
|
36
|
36
57622-93L00-000 SPACER,THRUSTFRONT |
57622-93L00-000 |
US $14.09 |
||
|
37
|
37
09164-50002-000 WASHER,WAVE |
09164-50002-000 |
from US $9.96 |
||
|
38
|
38
09381-72003-000 CIRCLIPFRONT |
09381-72003-000 |
from US $13.55 |
||
|
39
|
39
09140-48001-000 NUTREAR GEAR |
09140-48001-000 |
from US $51.14 |
||
|
40
|
40
56122-93L00-000 STOPPER,PROP SHAFT BRG HOUSING |
56122-93L00-000 |
from US $45.51 |
||
|
41
|
41
56126-93L10-000 WASHER,PROP SFT BRG HSG NO.1 |
56126-93L10-000 |
from US $80.96 |
||
|
42
|
42
56127-93L00-000 WASHER,PROP SFT BRG HSG NO.2 |
56127-93L00-000 |
from US $6.04 |
||
|
43
|
43
56128-93L00-000 SEAL,PROP SFT BEARING HOUSING |
56128-93L00-000 |
from US $7.52 |
||
|
44
|
44
56129-93L00-000 BUSH,STOPPER |
56129-93L00-000 |
from US $59.56 |
||
|
45
|
45
09280-00030-000
O RING(D:1.8,ID:117.6)
|
09280-00030-000 |
— | ||
| replacement | |||||
|
45
|
45
09280-00050-000 O Ring(D:1.8,id:117.6) |
09280-00050-000 |
from US $6.56 |
||
|
46
|
46
57527-93L00-000 SPACER,BEARING INNER |
57527-93L00-000 |
US $14.72 |
||
|
47
|
47
57541-93L00-000 SPACER,BEARING OUTER |
57541-93L00-000 |
US $77.28 |
||
|
48
|
48
09265-50004-000 BEARING (50X80X20)REAR GEAR R |
09265-50004-000 |
from US $40.80 |
||
|
49
|
49
09265-55001-000 BEARING (55X100X22.75)REAR GEAR F |
09265-55001-000 |
from US $54.72 |
||
