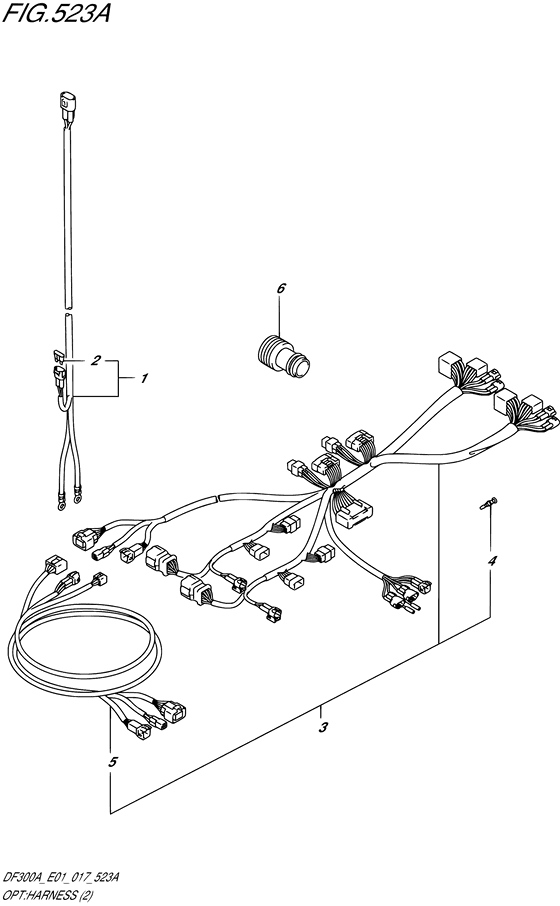

Opt:harness ((2)) Diagram Suzuki DF300A PX/XX
- Year
- 2017
- Model
- DF300A
- Year
- 2017
- Engine
- 30002P-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- General Export No.1/Costa Rica (P01/P40)
- Colour
- Pearl Nebular Black; Cool White (YAY; Y5S)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36625-98J10-000 WIRE ASSY,BATTERY |
36625-98J10-000 |
from US $74.99 |
||
|
2
|
2
09481-30501-000 FUSE(30A) |
09481-30501-000 |
from US $1.08 |
||
|
3
|
3
36623-98J40-000 HARNESS ASSY,BCM FOR QUADRUPLE |
36623-98J40-000 |
US $770.88 |
||
|
4
|
4
36615-96300-000 TERMINAL |
36615-96300-000 |
US $1.52 |
||
|
5
|
5
36627-98J00-000 HARNESS COMP,R/CON EXTENSION |
36627-98J00-000 |
US $103.04 |
||
|
6
|
6
17917-87L00-000 CONNECTOR,FLUSH WATER |
17917-87L00-000 |
US $7.58 |
