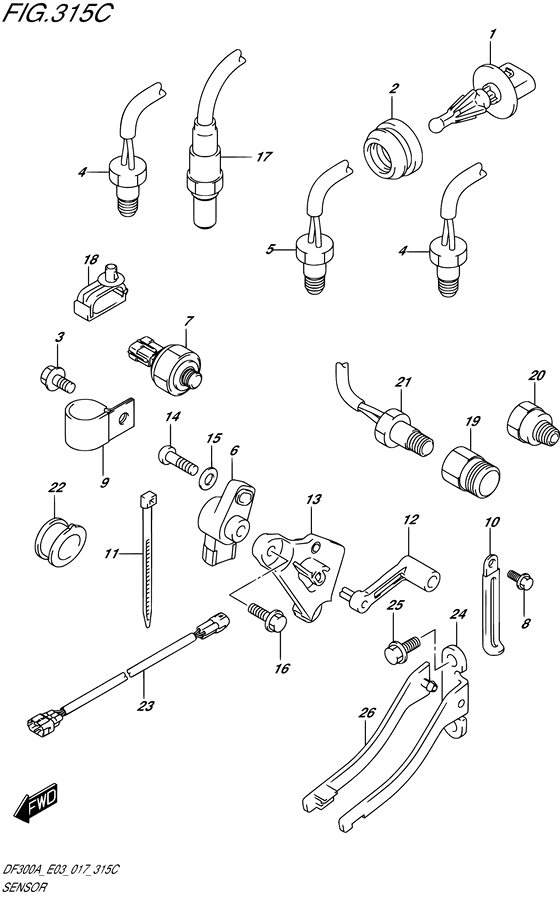

Sensor ((L) (DF300A E03)) Diagram Suzuki DF300A PX/XX
- Year
- 2017
- Model
- DF300A
- Year
- 2017
- Engine
- 30002P-710001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 300
- Sales region
- U.S.A. (P03)
- Colour
- Pearl Nebular Black; Cool White (YAY; Y5S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp |
13650-52G00-000 |
from US $50.92 |
||
|
2
|
2
13655-87J00-000 GROMMET,AIR TEMP SENSORGrommet, air temp sensor |
13655-87J00-000 |
US $2.43 |
||
|
3
|
3
29103-93J00-000 BoltBolt, ptt cable clip bracket (6x12) |
29103-93J00-000 |
US $1.44 |
||
|
4
|
4
34830-87J20-000 SENSOR,TEMPSensor assy, temp |
34830-87J20-000 |
from US $46.40 |
||
|
5
|
5
34830-87J20-000 SENSOR,TEMPSensor assy, temp |
34830-87J20-000 |
from US $46.40 |
||
|
6
|
6
34840-98J11-000 SENSOR ASSY,TRIM |
34840-98J11-000 |
from US $122.72 |
||
|
7
|
7
37820-98J00-000 SENSOR ASSY,OIL PRESSURE |
37820-98J00-000 |
from US $153.09 |
||
|
8
|
8
09103-06307-000 BOLT(6X10) |
09103-06307-000 |
from US $4.45 |
||
|
9
|
9
09403-19409-000
CLAMP
|
09403-19409-000 |
— | ||
| replacement | |||||
|
9
|
9
09403-19412-000 Clamp,ptt Motor Lead |
09403-19412-000 |
from US $6.89 |
||
|
10
|
10
29404-93J20-000 CLAMPClamp, fuel hose guard |
29404-93J20-000 |
US $1.44 |
||
|
11
|
11
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
12
|
12
34841-96J00-000 LEVER,TRIM SENSOR |
34841-96J00-000 |
from US $3.84 |
||
|
13
|
13
34845-96J00-000 BRACKET,TRIM SENSOR |
34845-96J00-000 |
US $8.48 |
||
|
14
|
14
09125-05048-000 SCREW(5X16) |
09125-05048-000 |
from US $3.45 |
||
| replacement | |||||
|
14
|
14
09136-05041-000 SCREW(5X20)Screw, rod adjuster |
09136-05041-000 |
from US $1.78 |
||
|
15
|
15
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
16
|
16
09103-06093-000 BOLT(6X20) |
09103-06093-000 |
from US $1.68 |
||
|
17
|
17
18213-98J30-000 SENSOR,OXYGEN |
18213-98J30-000 |
from US $193.64 |
||
|
18
|
18
09403-07340-000 CLAMP |
09403-07340-000 |
from US $6.14 |
||
|
19
|
19
11218-98J02-000 HOLDER,TEMP SENSOR |
11218-98J02-000 |
US $18.58 |
||
|
20
|
20
11219-98J00-000 HOLDER,OIL SENSOR |
11219-98J00-000 |
US $13.69 |
||
|
21
|
21
34830-98J00-000 SENSOR ASSY,OIL TEMP |
34830-98J00-000 |
from US $49.31 |
||
|
22
|
22
34813-93J00-000 PROTECTOR,LEAD WIRE |
34813-93J00-000 |
US $3.46 |
||
|
23
|
23
36611-96J00-000 WIRE,TRIM SENSOR |
36611-96J00-000 |
US $24.32 |
||
| replacement | |||||
|
23
|
23
36611-96J01-000 Wire,trim Sensor |
36611-96J01-000 |
US $23 |
||
|
24
|
24
43117-96J00-000 CAM,TRIM SENDER |
43117-96J00-000 |
US $5.76 |
||
|
25
|
25
09116-05010-000 BOLT(5X12)Bolt, trim sender cam (5x12) |
09116-05010-000 |
from US $0.95 |
||
|
26
|
26
43118-96J00-000 PLATE,TRIM SENDER CAM |
43118-96J00-000 |
US $4.64 |
||
