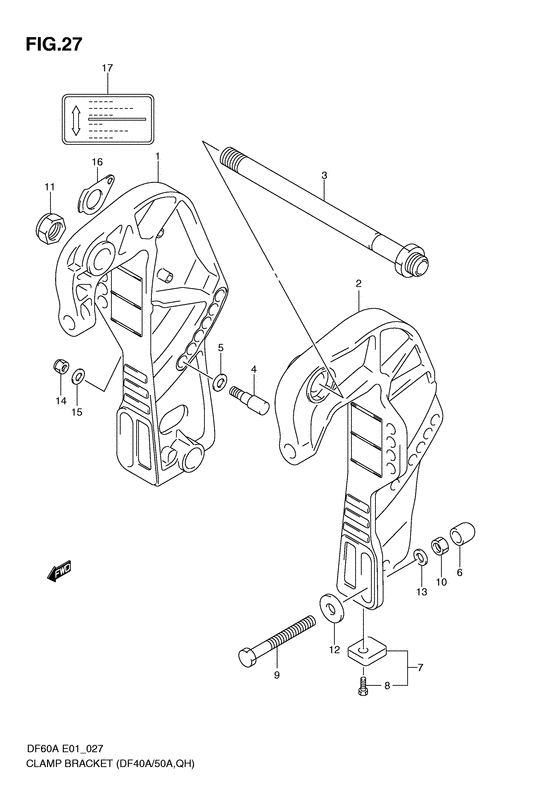

Clamp bracket Diagram Suzuki DF50A QHS/L; T(H)S/L
- Year
- 2010
- Model
- DF50A
- Year
- 2010
- Engine
- 05003F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-89J21-0EP BRACKET,CLAMP STBDBracket, clamp stbd (black); |
41111-89J21-0EP |
US $281.52 |
||
|
2
|
2
41121-89J15-0EP BRACKET,CLAMP PORTBracket, clamp port (black); |
41121-89J15-0EP |
US $281.52 |
||
|
3
|
3
41130-87J10-000
Shaft comp,clamp bracket
|
41130-87J10-000 |
— | ||
| replacement | |||||
|
3
|
3
41130-87J11-000 SHAFT,CLAMP BRACKET |
41130-87J11-000 |
US $118.50 |
||
|
4
|
4
45421-89J00-000 PIN,TILT LOCK |
45421-89J00-000 |
US $15.82 |
||
|
5
|
5
09160-12066-000 WASHER(12.5X22X2.5)Washer (12.5x22x2.5) Washer (12.5x22x2.5); |
09160-12066-000 |
from US $1.22 |
||
|
6
|
6
41153-94500-000 CAP,TRANSOM BOLTCap, transom bolt; |
41153-94500-000 |
US $2.83 |
||
|
7
|
7
55320-95311-000 ZINC SET,PROTECTIONZinc, protection; |
55320-95311-000 |
US $14.78 |
||
|
8
|
8
09116-06094-000 BOLT(6X15)Bolt, zinc (6x15); |
09116-06094-000 |
US $0.81 |
||
|
9
|
9
09100-12093-000 BOLT(12X100)Bolt (12x100,pitch:1.25); |
09100-12093-000 |
US $101.90 |
||
|
9
|
9
09100-12091-000 BOLT(12X115)Bolt (12x115,pitch:1.25); Opt |
09100-12091-000 |
US $108.20 |
||
|
10
|
10
09159-12014-000 NUTNut (m12,pitch:1.25); |
09159-12014-000 |
from US $2.45 |
||
|
11
|
11
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
12
|
12
09160-12044-000 WASHER(12.5X35X3.2)Washer (12.5x35x3.2) Washer (12.5x35x3.2); |
09160-12044-000 |
from US $2.13 |
||
|
13
|
13
09160-12110-000 WASHER(12.5X22X3)Washer (12.5x22x3.0); |
09160-12110-000 |
from US $4.19 |
||
|
14
|
14
09159-10050-000 NUTNut, tilt lock; |
09159-10050-000 |
US $5.92 |
||
|
15
|
15
09160-10082-000 WASHER(10.5X19X2)Washer Washer, tilt lock pin; |
09160-10082-000 |
from US $0.96 |
||
|
16
|
16
41135-93J00-000 WASHER,CLAMP BRACKET SHAFT |
41135-93J00-000 |
US $4.64 |
||
|
17
|
17
43241-87J00-000 MARK,RELEASE LEVERMark, release lever Qh,wqh |
43241-87J00-000 |
US $2.72 |
||
