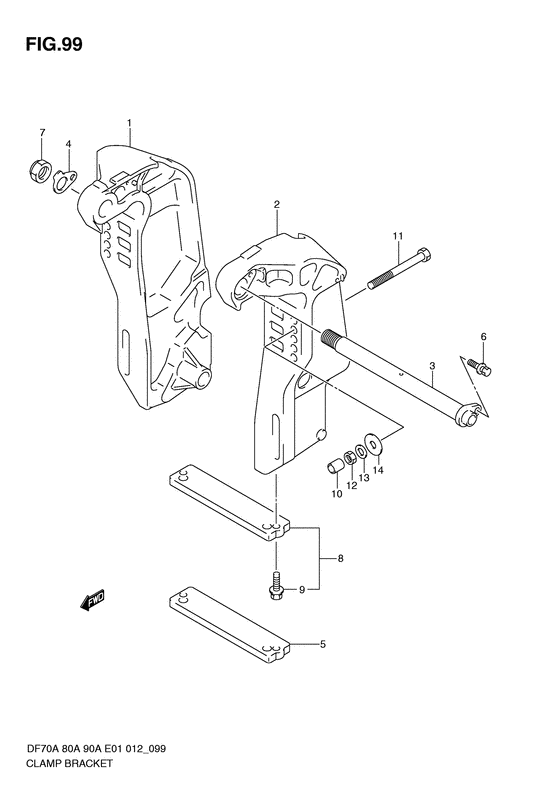

Clamp bracket Diagram Suzuki DF80A T(H)L/X; WT(H)L/X
- Year
- 2011
- Model
- DF80A
- Year
- 2011
- Engine
- 08002F-210001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (; 0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-87L10-0EP BRACKET,CLAMP STBD |
41111-87L10-0EP |
US $429.44 |
||
|
2
|
2
41121-87L10-0EP
BRACKET,CLAMP PORT
|
41121-87L10-0EP |
— | ||
| replacement | |||||
|
2
|
2
41121-87L11-0EP BRACKET,CLAMP PORT |
41121-87L11-0EP |
US $450.56 |
||
|
3
|
3
41130-87L10-000
Shaft,clamp bracket
|
41130-87L10-000 |
— | ||
| replacement | |||||
|
3
|
3
41130-87L11-000 SHAFT,CLAMP BRACKET |
41130-87L11-000 |
US $119.33 |
||
|
4
|
4
41135-93J11-000 WASHER,CLAMP BRACKET SHAFT |
41135-93J11-000 |
US $4.64 |
||
|
5
|
5
55321-94910-000 ANODE(MAGNESIUM)Anode (magnesium); Opt |
55321-94910-000 |
US $49.28 |
||
|
6
|
6
09116-08137-000 BOLT(8X22)Bolt (8x22) Bolt (8x22); |
09116-08137-000 |
from US $3.92 |
||
|
7
|
7
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
8
|
8
55320-94900-000 ANODE SET,CLAMP BRACKETZinc, protection Zinc, protection; |
55320-94900-000 |
US $44.71 |
||
| replacement | |||||
|
8
|
8
55320-94910-000 ANODE SET,CLAMP BRACKETZinc, protection; |
55320-94910-000 |
from US $22.40 |
||
|
9
|
9
09116-06121-000 BOLT(6X25)Bolt (6x25) Bolt (6x25); |
09116-06121-000 |
from US $1.22 |
||
|
10
|
10
41153-94500-000 CAP,TRANSOM BOLTCap, transom bolt; |
41153-94500-000 |
US $2.83 |
||
|
11
|
11
09100-12091-000 BOLT(12X115)Bolt (12x115); |
09100-12091-000 |
US $108.20 |
||
|
11
|
11
09100-12090-000 BOLT(12X150)Bolt (12x150); Opt |
09100-12090-000 |
from US $21.60 |
||
|
12
|
12
09159-12014-000 NUT |
09159-12014-000 |
from US $2.45 |
||
|
13
|
13
09160-12110-000 WASHER(12.5X22X3)Washer (12.5x22x3); |
09160-12110-000 |
from US $4.19 |
||
|
14
|
14
09160-12044-000 WASHER(12.5X35X3.2)Washer (12.5x35x3.2) Washer (12.5x35x3.2); |
09160-12044-000 |
from US $2.13 |
||
