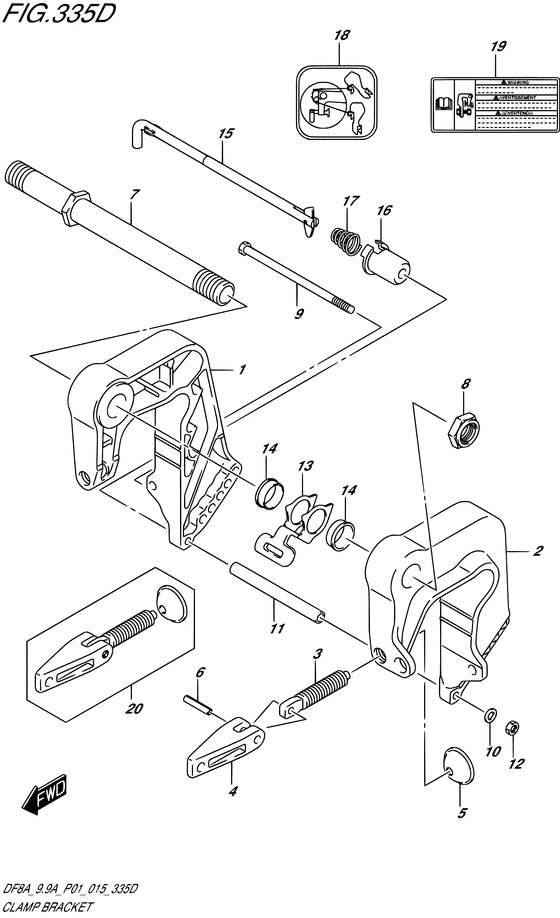

Clamp bracket ((DF9.9AR P01)) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2014
- Model
- DF8A
- Year
- 2014
- Engine
- 00801F-510001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-94J20-0EP BRACKET,CLAMP STBD |
41111-94J20-0EP |
US $154.56 |
||
|
2
|
2
41121-94J20-0EP BRACKET,CLAMP PORT |
41121-94J20-0EP |
US $111.87 |
||
|
3
|
3
41211-99JL0-000 SCREW,CLAMP |
41211-99JL0-000 |
US $11.30 |
||
|
4
|
4
41212-91J00-000 HANDLE,CLAMP |
41212-91J00-000 |
US $10.34 |
||
|
5
|
5
41213-94J01-000 PLATE,CLAMP |
41213-94J01-000 |
US $3.04 |
||
|
6
|
6
09205-06021-000 PIN,SPRING(6X25) |
09205-06021-000 |
from US $2.66 |
||
|
7
|
7
41130-93E03-000 SHAFT,CLAMP BRACKET |
41130-93E03-000 |
US $52.26 |
||
|
8
|
8
09159-22006-000 NUT |
09159-22006-000 |
from US $22.40 |
||
|
9
|
9
09100-06177-000 BOLT(6X140) |
09100-06177-000 |
US $4.46 |
||
|
10
|
10
09160-06082-000 WASHER(6.5X13X1.0) |
09160-06082-000 |
from US $0.96 |
||
|
11
|
11
09180-06357-000 SPACER(6.5X10.5X104) |
09180-06357-000 |
US $142.40 |
||
|
12
|
12
29141-93J00-000 NUT |
29141-93J00-000 |
from US $1.52 |
||
|
13
|
13
45261-94J00-000 LEVER,RELEASE |
45261-94J00-000 |
US $11.70 |
||
|
14
|
14
09306-22006-000
BUSH(22.6X27X8)
|
09306-22006-000 |
— | ||
| replacement | |||||
|
14
|
14
59315-94J00-000 New Genuine Part |
59315-94J00-000 |
US $1.66 |
||
|
15
|
15
45420-99JM0-000
PIN,TILT LOCK
|
45420-99JM0-000 |
— | ||
| replacement | |||||
|
15
|
15
45420-99JM1-000 PIN COMP,TILT LOCK |
45420-99JM1-000 |
US $32 |
||
|
16
|
16
45425-94J01-000 STOPPER,TILT LOCK PIN |
45425-94J01-000 |
US $2.08 |
||
|
17
|
17
09441-17001-000 SPRING |
09441-17001-000 |
US $2.24 |
||
|
18
|
18
45269-94J20-000 MARK,REVERSE LOCK |
45269-94J20-000 |
US $1.32 |
||
|
19
|
19
69911-91J40-000 MARK,CLAMP BRACKET |
69911-91J40-000 |
US $2.43 |
||
|
20
|
20
41210-99JL1-000
SCREW ASSY,CLAMP
OPT |
41210-99JL1-000 |
— | ||
