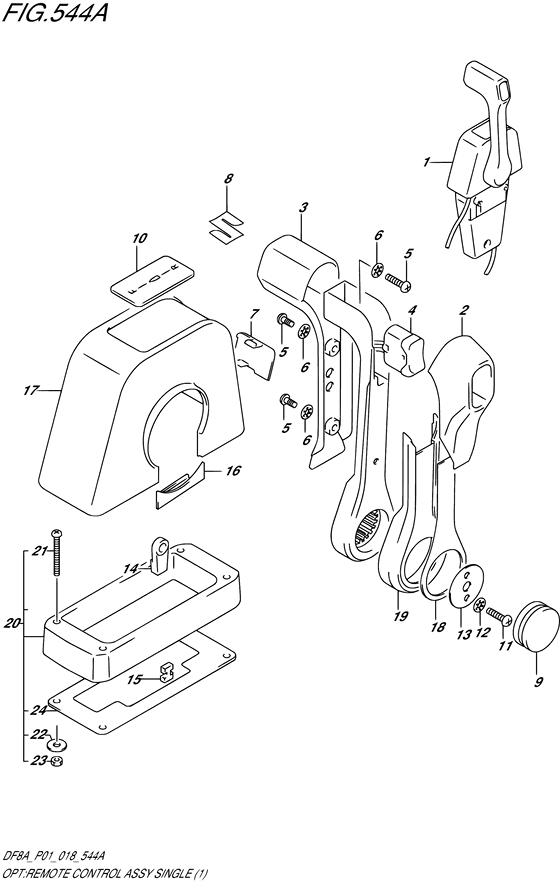

Opt:remote control assy single ((1)) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2017
- Model
- DF8A
- Year
- 2017
- Engine
- 00801F-810001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-88L00-000
REMOTE CONTROL ASSY,SINGLE
|
67200-88L00-000 |
— | ||
| replacement | |||||
|
1
|
1
67200-88L01-000
Remote Control Assy,single
|
67200-88L01-000 |
— | ||
|
2
|
2
67261-88L10-000 GRIP,REMOCON NO.2 |
67261-88L10-000 |
US $12.88 |
||
|
3
|
3
67261-88L00-000 GRIP,REMOCON NO.1 |
67261-88L00-000 |
US $15.46 |
||
|
4
|
4
37850-88L00-000 SWITCH ASSY,GRIP PTT (SINGLE) |
37850-88L00-000 |
US $88 |
||
|
5
|
5
67296-88L00-000 SCREW |
67296-88L00-000 |
US $7.36 |
||
|
6
|
6
67288-92E20-000 WASHER |
67288-92E20-000 |
US $1.77 |
||
|
7
|
7
67212-88L00-000 COVER,PLUG (SINGLE) |
67212-88L00-000 |
US $9.94 |
||
|
8
|
8
68111-88L00-000 EMBLEM,MARK (S) |
68111-88L00-000 |
US $8.43 |
||
|
9
|
9
67257-88L00-000 CAP,REMOCON LEVER |
67257-88L00-000 |
US $11.41 |
||
|
10
|
10
67281-88L00-000 DECAL (SINGLE) |
67281-88L00-000 |
US $28.70 |
||
|
11
|
11
67296-92E60-000 SCREW |
67296-92E60-000 |
US $2.24 |
||
|
12
|
12
67288-92E60-000 WASHER |
67288-92E60-000 |
US $1.73 |
||
|
13
|
13
67253-92E00-000 WASHER |
67253-92E00-000 |
US $3.83 |
||
|
14
|
14
67275-95600-000 END,CABLE |
67275-95600-000 |
from US $4.64 |
||
|
15
|
15
67273-95600-000
SPACER
|
67273-95600-000 |
— | ||
| replacement | |||||
|
15
|
15
67273-95601-000 Spacer |
67273-95601-000 |
US $3.46 |
||
|
16
|
16
67271-88L10-000 COVER,REMOCON LEVER LOWER |
67271-88L10-000 |
US $9.57 |
||
|
17
|
17
67211-88L00-000 COVER (SINGLE) |
67211-88L00-000 |
US $20.61 |
||
|
18
|
18
67264-88L00-000 COVER,LEVER DESIGN |
67264-88L00-000 |
US $32.38 |
||
|
19
|
19
67264-88L10-000 COVER,LEVER PLATING |
67264-88L10-000 |
US $57.78 |
||
|
20
|
20
67500-88L00-000 KIT,R/CON SPACER SINGLE |
67500-88L00-000 |
US $36.80 |
||
|
21
|
21
09125-05135-000 SCREW(5X65) |
09125-05135-000 |
from US $5.12 |
||
|
22
|
22
09160-05029-000 WASHER(5.5X12X0.8) |
09160-05029-000 |
from US $1.12 |
||
|
23
|
23
09140-05005-000 NUT |
09140-05005-000 |
from US $1.22 |
||
|
24
|
24
67273-88L00-000 GROMMET,R/CON SINGLE |
67273-88L00-000 |
US $6.62 |
||
