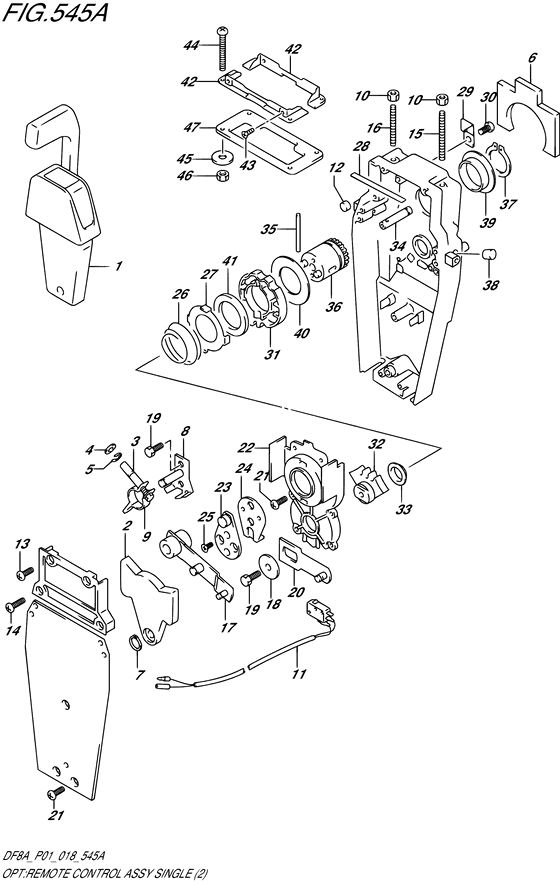

Opt:remote control assy single ((2)) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2017
- Model
- DF8A
- Year
- 2017
- Engine
- 00801F-810001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Pearl Nebular Black (YAY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-88L00-000
REMOTE CONTROL ASSY,SINGLE
|
67200-88L00-000 |
— | ||
| replacement | |||||
|
1
|
1
67200-88L01-000
Remote Control Assy,single
|
67200-88L01-000 |
— | ||
|
2
|
2
67222-92E00-000 DUEL PLATE |
67222-92E00-000 |
US $17.63 |
||
|
3
|
3
67223-92E00-000 BRAKE ADJUST |
67223-92E00-000 |
US $5.92 |
||
|
4
|
4
67288-92E00-000 WASHER |
67288-92E00-000 |
US $1.60 |
||
|
5
|
5
67292-94300-000 E RING,REMO-CON |
67292-94300-000 |
from US $1.53 |
||
|
6
|
6
67272-88L00-000 GOM SEAL,WATERPROOF |
67272-88L00-000 |
US $21.71 |
||
|
7
|
7
67291-92E00-000 RING,SNAP |
67291-92E00-000 |
US $2.80 |
||
|
8
|
8
67221-92E00-000 SHIFT ASSY |
67221-92E00-000 |
US $17.26 |
||
|
9
|
9
67224-92E00-000 BRAKE ARM ASSY |
67224-92E00-000 |
US $12 |
||
|
10
|
10
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
11
|
11
37721-88L00-000
SWITCH ASSY,NEUTRAL
|
37721-88L00-000 |
— | ||
| replacement | |||||
|
11
|
11
37721-88L01-000 Switch Assy,neutral |
37721-88L01-000 |
US $43.06 |
||
|
12
|
12
67236-92E00-000 ROLLER |
67236-92E00-000 |
US $3.35 |
||
|
13
|
13
67296-88D10-000 SCREW(5X16) |
67296-88D10-000 |
US $1.73 |
||
|
14
|
14
67296-92E20-000 SCREW |
67296-92E20-000 |
US $2.24 |
||
|
15
|
15
67226-92E00-000 BOLT,STOPPER FRBolt, stopper front |
67226-92E00-000 |
US $5.92 |
||
|
16
|
16
67226-92E10-000 BOLT,STOPPER RRBolt, stopper rear |
67226-92E10-000 |
US $5.92 |
||
|
17
|
17
67240-92E00-000 THROTTLE ARM ASSYArm assy, throttle |
67240-92E00-000 |
US $39.74 |
||
|
18
|
18
67228-92E00-000 WASHER |
67228-92E00-000 |
US $3.83 |
||
|
19
|
19
67286-92E00-000 Bolt |
67286-92E00-000 |
US $2.24 |
||
|
20
|
20
67230-88L00-000 ARM ASSY,REMOCON SHIFT |
67230-88L00-000 |
US $12.88 |
||
|
21
|
21
09125-05042-000 SCREW(5X10) |
09125-05042-000 |
from US $0.91 |
||
|
22
|
22
67234-88L00-000 CASE,REMOCON GEAR |
67234-88L00-000 |
US $12.88 |
||
|
23
|
23
67245-92E00-000 LEVER ASSY,THROTTLELever assy, throttle |
67245-92E00-000 |
US $17.63 |
||
|
24
|
24
67227-92E00-000 STOPPER |
67227-92E00-000 |
US $9.49 |
||
|
25
|
25
09126-06006-000 SCREW(6X20) |
09126-06006-000 |
from US $2.84 |
||
|
26
|
26
67233-92E00-000 SPRING |
67233-92E00-000 |
US $9.49 |
||
|
27
|
27
67235-92E00-000 PLATE,SHIFT LOCKPlate, shift lock |
67235-92E00-000 |
US $5.92 |
||
|
28
|
28
67237-92E01-000 SPRING |
67237-92E01-000 |
US $3.35 |
||
|
29
|
29
67269-92E00-000
BRACKET
|
67269-92E00-000 |
— | ||
| replacement | |||||
|
29
|
29
67269-92E01-000 Bracket |
67269-92E01-000 |
US $5.92 |
||
|
30
|
30
67296-88D10-000 SCREW(5X16) |
67296-88D10-000 |
US $1.73 |
||
|
31
|
31
67238-88L00-000 GEAR,REMOCON DRIVE |
67238-88L00-000 |
US $14.90 |
||
|
32
|
32
67231-88L00-000 GEAR,REMOCON SHIFT |
67231-88L00-000 |
US $17.66 |
||
|
33
|
33
67232-88L00-000 BUSH,SHIFT GEAR |
67232-88L00-000 |
US $7.91 |
||
|
34
|
34
67241-88L00-000 ROD,REMOCON FREE ACCEL |
67241-88L00-000 |
US $9.02 |
||
|
35
|
35
67239-92E00-000 PIN |
67239-92E00-000 |
US $12.59 |
||
|
36
|
36
67246-88L00-000 SHAFT,REMOCON DRIVE |
67246-88L00-000 |
US $28.70 |
||
|
37
|
37
67291-92E10-000 RING,SNAP |
67291-92E10-000 |
US $7.99 |
||
|
38
|
38
67243-92E00-000 CAP,HOLE |
67243-92E00-000 |
US $4.27 |
||
|
39
|
39
67252-88L00-000 BUSH,REMOCON DRIVE SHAFT |
67252-88L00-000 |
US $8.46 |
||
|
40
|
40
67253-88L00-000 WASHER,REMOCON DRIVE SHAFT |
67253-88L00-000 |
US $9.20 |
||
|
41
|
41
67239-92E10-000 PLATE,SHIFT PINPlate, shift pin |
67239-92E10-000 |
US $6.40 |
||
|
42
|
42
67274-88L00-000 FLANGE,COVER BASE (SINGLE) |
67274-88L00-000 |
US $17.66 |
||
|
43
|
43
67296-95610-000 SCREW |
67296-95610-000 |
US $2.13 |
||
|
44
|
44
67296-92E30-000 SCREW |
67296-92E30-000 |
US $2.24 |
||
|
45
|
45
09160-05024-000 WASHER(5.5X16X1.5) |
09160-05024-000 |
from US $2.45 |
||
|
46
|
46
67287-92E00-000 NUT |
67287-92E00-000 |
US $1.77 |
||
|
47
|
47
67273-88L00-000 GROMMET,R/CON SINGLE |
67273-88L00-000 |
US $6.62 |
||
