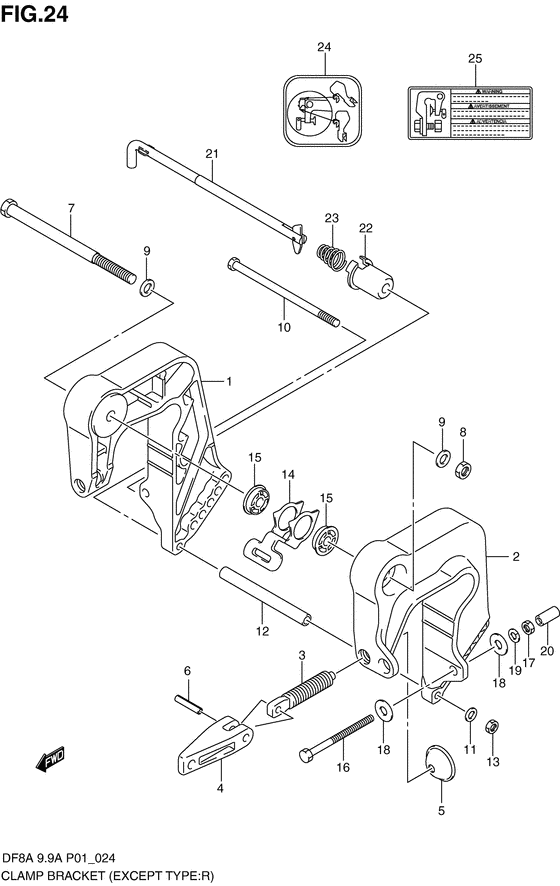

Clamp bracket (Except type: r) Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-99J00-0EP BRACKET,CLAMP STBD (BLACK) |
41111-99J00-0EP |
US $93.10 |
||
|
2
|
2
41121-99J00-0EP BRACKET,CLAMP PORT (BLACK) |
41121-99J00-0EP |
US $93.10 |
||
|
3
|
3
41211-99J00-000
Screw,clamp
|
41211-99J00-000 |
— | ||
| replacement | |||||
|
3
|
3
41211-99JL0-000 SCREW,CLAMP |
41211-99JL0-000 |
US $11.30 |
||
|
3
|
3
41211-99JL0-000 SCREW,CLAMPDf8a:110001~, df9.9a:110001~ |
41211-99JL0-000 |
US $11.30 |
||
|
4
|
4
41212-91J00-000 HANDLE,CLAMP |
41212-91J00-000 |
US $10.34 |
||
|
5
|
5
41213-98100-000
PLATE,CLAMP
Plate, clamp; |
41213-98100-000 |
— | ||
| replacement | |||||
|
5
|
5
41213-94J01-000 PLATE,CLAMPPlate, clamp; |
41213-94J01-000 |
US $3.04 |
||
|
6
|
6
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) Pin (6.2x25); |
09205-06007-000 |
from US $1.04 |
||
|
7
|
7
09100-10312-000
Bolt,10x146
Bolt, clamp brkt (10x146); |
09100-10312-000 |
— | ||
| replacement | |||||
|
7
|
7
09100-10320-000 BOLT(10X145)Bolt, clamp brkt (10x146); |
09100-10320-000 |
US $127 |
||
|
8
|
8
09159-10050-000 NUTNut, clamp brkt; |
09159-10050-000 |
US $5.92 |
||
|
9
|
9
09160-10082-000 WASHER(10.5X19X2)Washer Washer, clamp brkt (10.5x19x2); |
09160-10082-000 |
from US $0.96 |
||
|
10
|
10
09100-06125-000
Bolt
Bolt, clamp brkt lwr (6x140); |
09100-06125-000 |
— | ||
| replacement | |||||
|
10
|
10
09100-06177-000 BOLT(6X140)Bolt, clamp brkt lwr (6x140); |
09100-06177-000 |
US $4.46 |
||
|
11
|
11
09160-06082-000 WASHER(6.5X13X1.0)Washer, clamp brkt lwr lock (6.5x13x1); |
09160-06082-000 |
from US $0.96 |
||
|
12
|
12
09180-06357-000 SPACER(6.5X10.5X104)Spacer, clamp brkt lwr (6.5x10.5x104); |
09180-06357-000 |
US $142.40 |
||
|
13
|
13
23118-94J00-000
Nut, tilt lock no.1
Nut, clamp brkt lwr (m6); |
23118-94J00-000 |
— | ||
| replacement | |||||
|
13
|
13
29141-93J00-000 NUTNut, clamp brkt lwr (m6); |
29141-93J00-000 |
from US $1.52 |
||
|
14
|
14
45261-94J00-000 LEVER,RELEASE |
45261-94J00-000 |
US $11.70 |
||
|
15
|
15
09306-10023-000 BUSHBush, release lever; |
09306-10023-000 |
US $26.90 |
||
|
16
|
16
09100-08239-000
Bolt (8x90)
Bolt, transom (8x90); |
09100-08239-000 |
— | ||
| replacement | |||||
|
16
|
16
09100-08311-000 BOLT(8X90)Bolt, transom (8x90); |
09100-08311-000 |
US $32 |
||
|
17
|
17
09140-08023-XC0 NUTNut, transom bolt; |
09140-08023-XC0 |
from US $1.93 |
||
|
18
|
18
09160-08081-000 WASHER(8.5X23X1.5)Washer, clutch lever Washer, transom bolt (8.5x23x1.5); |
09160-08081-000 |
from US $4.05 |
||
|
19
|
19
29162-93J10-000 WASHER(8.2X21.5X3)Lock washer (8.2x15.4x2.0) Washer, transom bolt lock; |
29162-93J10-000 |
US $1.49 |
||
|
20
|
20
41153-96300-000 CAP,TRANSOM BOLTCap, transom bolt; |
41153-96300-000 |
US $2.83 |
||
|
21
|
21
45420-99J00-000
Pin,tilt lock
|
45420-99J00-000 |
— | ||
| replacements | |||||
|
21
|
21
45420-99JM0-000
PIN,TILT LOCK
|
45420-99JM0-000 |
— | ||
|
21
|
21
45420-99JM1-000 PIN COMP,TILT LOCK |
45420-99JM1-000 |
US $32 |
||
|
22
|
22
45425-94J00-000
Stopper
Stopper, tilt lock pin; |
45425-94J00-000 |
— | ||
| replacement | |||||
|
22
|
22
45425-94J01-000 STOPPER,TILT LOCK PINStopper, tilt lock pin; |
45425-94J01-000 |
US $2.08 |
||
|
23
|
23
09441-17001-000 SPRINGSpring, tilt lock pin; |
09441-17001-000 |
US $2.24 |
||
|
24
|
24
45269-94J20-000 MARK,REVERSE LOCK |
45269-94J20-000 |
US $1.32 |
||
|
25
|
25
69911-91J00-000
MARK,CLAMP BRACKET
|
69911-91J00-000 |
— | ||
|
25
|
25
69911-91J40-000 MARK,CLAMP BRACKETDf8a:010867~, df9.9a:011403~ |
69911-91J40-000 |
US $2.43 |
||
|
26
|
26
41210-99J00-000
SCREW SET,CLAMP
Opt, not shown |
41210-99J00-000 |
— | ||
| replacement | |||||
|
26
|
26
41210-99JL1-000
SCREW ASSY,CLAMP
Opt, not shown |
41210-99JL1-000 |
— | ||
|
26
|
26
41210-99JL0-000
SCREW SET,CLAMP
Df8a:110001~, df9.9a:110001~ |
41210-99JL0-000 |
— | ||
| replacement | |||||
|
26
|
26
41210-99JL1-000
SCREW ASSY,CLAMP
Df8a:110001~, df9.9a:110001~ |
41210-99JL1-000 |
— | ||
