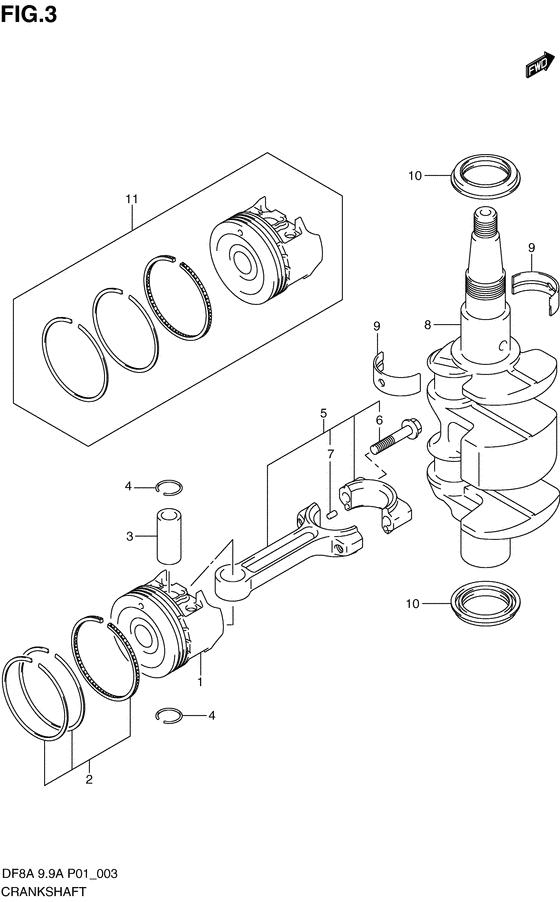

Crankshaft Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-99J00-0B0 PISTON (STD) |
12111-99J00-0B0 |
US $51.20 |
||
|
2
|
2
12140-99J00-000 RING SET,PISTON |
12140-99J00-000 |
US $64 |
||
|
3
|
3
12151-99J00-000 PIN,PISTON |
12151-99J00-000 |
US $4.27 |
||
|
4
|
4
09381-14001-000 PISTON PIN CIRC |
09381-14001-000 |
from US $1.06 |
||
|
5
|
5
12160-99J00-000
CONNECTING ROD ASSY
|
12160-99J00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-99800-000 PISTON & CONNROD SET (10-12) |
12160-99800-000 |
US $214.16 |
||
|
6
|
6
12163-99J00-000
Bolt,connrod
|
12163-99J00-000 |
— | ||
| replacement | |||||
|
6
|
6
12163-99JL1-000 BOLT,CONNROD |
12163-99JL1-000 |
US $2.02 |
||
|
7
|
7
04221-03059-000 PIN |
04221-03059-000 |
from US $2.35 |
||
|
8
|
8
12220-99J00-000 CRANKSHAFT |
12220-99J00-000 |
US $691.14 |
||
|
9
|
9
12341-99J00-000 Bearing,crankshaft |
12341-99J00-000 |
US $8.80 |
||
|
10
|
10
09283-30075-000
SEAL,OIL(28.8X45.5X6.5)
Seal, crankshaft oil; |
09283-30075-000 |
— | ||
| replacement | |||||
|
10
|
10
09283-30078-000 SEALOILSeal, crankshaft oil; |
09283-30078-000 |
US $9.28 |
||
|
11
|
11
12100-99J00-050 PISTON SET(OS:0.5)Piston set (os:0.50); Opt |
12100-99J00-050 |
US $129.54 |
||
