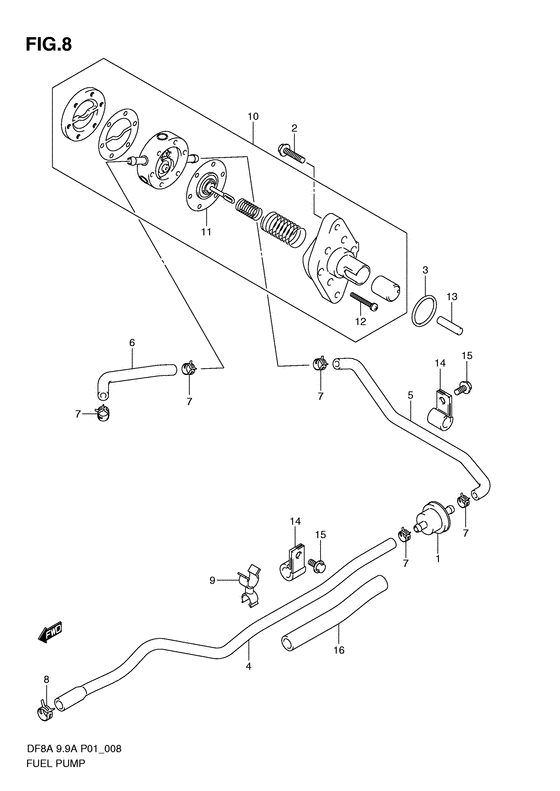

Fuel Pump Diagram Suzuki DF8A S/L; RS/L
- Year
- 2010
- Model
- DF8A
- Year
- 2010
- Engine
- 00801F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15410-98500-000 FILTER,FUELFilter assy, fuel Filter, fuel; |
15410-98500-000 |
US $17.49 |
||
|
2
|
2
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
3
|
3
09280-26005-000 O RING(D:2.4,ID:26.2)O ring (d:2.4,id:26.2) O ring (d:2.4 id:26.2); |
09280-26005-000 |
from US $1.82 |
||
|
3
|
3
09280-26L01-000
O RING(D:2.4,ID:26.2)
O ring (d:2.4 id:26.2); Df8a:110001~, df9.9a:110001~ |
09280-26L01-000 |
— | ||
| replacement | |||||
|
3
|
3
09280-26005-000 O RING(D:2.4,ID:26.2)O ring (d:2.4,id:26.2) O ring (d:2.4 id:26.2); Df8a:110001~, df9.9a:110001~ |
09280-26005-000 |
from US $1.82 |
||
|
4
|
4
15192-99J00-000
HOSE,FUEL(CONNECTOR TO FILTER)
Hose, fuel (conn to filter); |
15192-99J00-000 |
— | ||
|
4
|
4
15192-99J11-000
Hose,fuel (conn to filter)
Hose, fuel (conn to filter); Df8a:110001~, df9.9a:110001~ |
15192-99J11-000 |
— | ||
| replacement | |||||
|
4
|
4
15192-99JL0-000 HOSE,FUEL(CONNECTOR TO FILTER)Hose, fuel (conn to filter); Df8a:110001~, df9.9a:110001~ |
15192-99JL0-000 |
US $11.33 |
||
|
5
|
5
15193-99J00-000
HOSE,FUEL(FILTER TO PUMP)
Hose, fuel (filter to pump); |
15193-99J00-000 |
— | ||
|
5
|
5
15193-99J11-000
Hose,fuel (filter to pump)
Hose, fuel (filter to pump); Df8a:110001~, df9.9a:110001~ |
15193-99J11-000 |
— | ||
| replacement | |||||
|
5
|
5
15193-99JL0-000 HOSE,FUEL(FILTER TO PUMP)Hose, fuel (filter to pump); Df8a:110001~, df9.9a:110001~ |
15193-99JL0-000 |
US $8.87 |
||
|
6
|
6
15191-99J00-000
HOSE,FUEL(PUMP TO CARB)
Hose, fuel (pump to carb); |
15191-99J00-000 |
— | ||
|
6
|
6
15191-99J11-000 HOSE,FUEL(PUMP TO CARB)Hose, fuel (pump to carb); Df8a:110001~, df9.9a:110001~ |
15191-99J11-000 |
US $6.48 |
||
|
7
|
7
09401-09404-000 CLIP |
09401-09404-000 |
US $1.07 |
||
|
8
|
8
09401-11422-000 CLIP |
09401-11422-000 |
US $1.60 |
||
|
9
|
9
09408-00054-000 CLAMP |
09408-00054-000 |
US $19.10 |
||
|
10
|
10
15100-94J0V-000
Pump assy, fuel
|
15100-94J0V-000 |
— | ||
| replacements | |||||
|
10
|
10
15100-94J02-000
PUMP ASSY,FUEL
|
15100-94J02-000 |
— | ||
|
10
|
10
15100-94J03-000 Pump Assy,fuel |
15100-94J03-000 |
US $101.60 |
||
|
10
|
10
15100-94JL0-000
Pump assy, fuel
Df8a:110001~, df9.9a:110001~ |
15100-94JL0-000 |
— | ||
| replacements | |||||
|
10
|
10
15100-94J02-000
PUMP ASSY,FUEL
Df8a:110001~, df9.9a:110001~ |
15100-94J02-000 |
— | ||
|
10
|
10
15100-94J03-000 Pump Assy,fuelDf8a:110001~, df9.9a:110001~ |
15100-94J03-000 |
US $101.60 |
||
|
11
|
11
15170-94J0V-000
Diaphragm set
|
15170-94J0V-000 |
— | ||
| replacement | |||||
|
11
|
11
15100-94J03-000 Pump Assy,fuel |
15100-94J03-000 |
US $101.60 |
||
|
12
|
12
15251-93E00-000
Screw
|
15251-93E00-000 |
— | ||
| replacement | |||||
|
12
|
12
15251-93E01-000 SCREW |
15251-93E01-000 |
US $1.69 |
||
|
13
|
13
15131-99J00-000 ROD,FUEL PUMP |
15131-99J00-000 |
US $2.02 |
||
|
14
|
14
09403-12406-000 CLAMP |
09403-12406-000 |
US $28 |
||
|
15
|
15
01550-06127-000 BoltBolt, rect Bolt, fuel hose clamp; |
01550-06127-000 |
from US $0.68 |
||
|
16
|
16
18498-99J00-000
PROTECTOR,FUEL HOSE(100)
Protector, fuel hose (100); Df8a:110001~, df9.9a:110001~ |
18498-99J00-000 |
— | ||
| replacement | |||||
|
16
|
16
18498-99J01-000 Protector,fuel Hose(100)Protector, fuel hose (100); Df8a:110001~, df9.9a:110001~ |
18498-99J01-000 |
US $2.47 |
||
