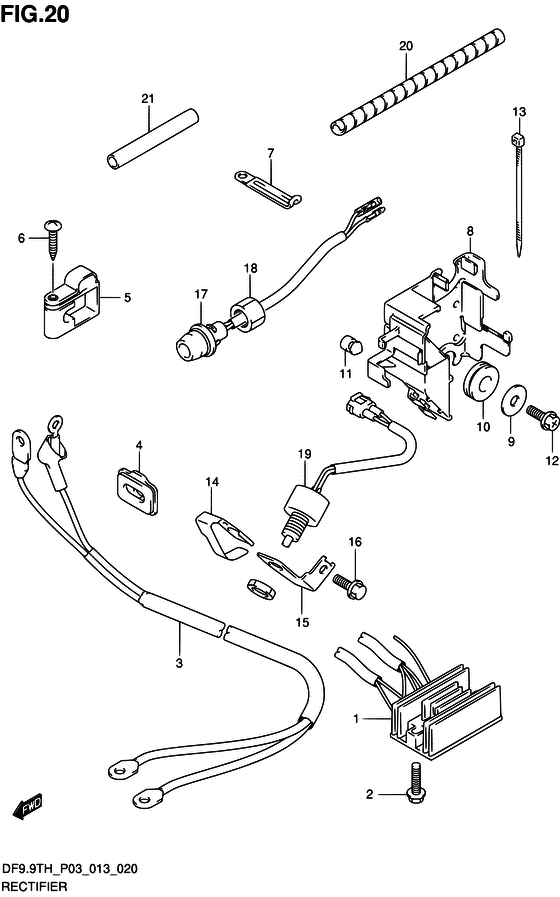

Rectifier Diagram Suzuki DF9.9 TS/L; THS/L
- Year
- 2013
- Model
- DF9.9
- Year
- 2013
- Engine
- 00993F-310001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- U.S.A. (P03)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32800-94J11-000 RECTIFIER & REGULATOR ASSY |
32800-94J11-000 |
US $135.20 |
||
|
2
|
2
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
3
|
3
33810-94JA1-000
CABLE,STARTER
|
33810-94JA1-000 |
— | ||
|
4
|
4
33811-94J10-000 GROMMET,STARTER CABLEGrommet, starter cable |
33811-94J10-000 |
US $2.10 |
||
|
5
|
5
33816-94J01-000 Clamp, Cable |
33816-94J01-000 |
US $3.97 |
||
|
6
|
6
03241-0625A-000 SCREW |
03241-0625A-000 |
from US $1.87 |
||
|
7
|
7
29404-93J10-000
CLAMP
|
29404-93J10-000 |
— | ||
| replacement | |||||
|
7
|
7
29404-93J11-000 Clamp |
29404-93J11-000 |
US $1.78 |
||
|
8
|
8
32890-94J00-000 HOLDER,ELECTRIC PARTS |
32890-94J00-000 |
US $7.69 |
||
|
9
|
9
09160-06054-000 WASHER(6.5X22X1.6)Washer (6.5x22x1.6) |
09160-06054-000 |
from US $1.22 |
||
|
10
|
10
09320-12011-000
CUSHION
|
09320-12011-000 |
— | ||
| replacement | |||||
|
10
|
10
09320-12090-000 Cushion(11.8X25X7.5) |
09320-12090-000 |
from US $1.67 |
||
|
11
|
11
09321-06013-000
CUSHION
|
09321-06013-000 |
— | ||
| replacement | |||||
|
11
|
11
09321-06036-000 Cushion,license Plate |
09321-06036-000 |
from US $1.52 |
||
|
12
|
12
02162-06167-000
Bolt
|
02162-06167-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
13
|
13
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
14
|
14
37725-94302-000 ACTUATOR,NEUTRAL SWITCHActuator, neutral sw |
37725-94302-000 |
US $2.90 |
||
|
15
|
15
37726-94J00-000 BRACKET,NEUTRAL SWITCH |
37726-94J00-000 |
US $3.53 |
||
|
16
|
16
01550-06167-000 Bolt |
01550-06167-000 |
from US $0.68 |
||
|
17
|
17
37161-94J00-000 SWITCH ASSY,STARTER MOTORSwitch, starting motor |
37161-94J00-000 |
US $35.70 |
||
|
18
|
18
09159-14032-000 NUT |
09159-14032-000 |
US $21.70 |
||
|
19
|
19
37721-94J01-000
SWITCH ASSY,NEUTRAL
|
37721-94J01-000 |
— | ||
| replacement | |||||
|
19
|
19
37721-94J02-000 Switch Assy,neutral |
37721-94J02-000 |
US $41.58 |
||
|
20
|
20
33833-91J00-000 TUBE,SWITCH LEAD(L:250) |
33833-91J00-000 |
US $4.64 |
||
|
21
|
21
33833-94JL0-000 TUBE,SWITCH LEAD(16X17X120) |
33833-94JL0-000 |
US $0.99 |
||
