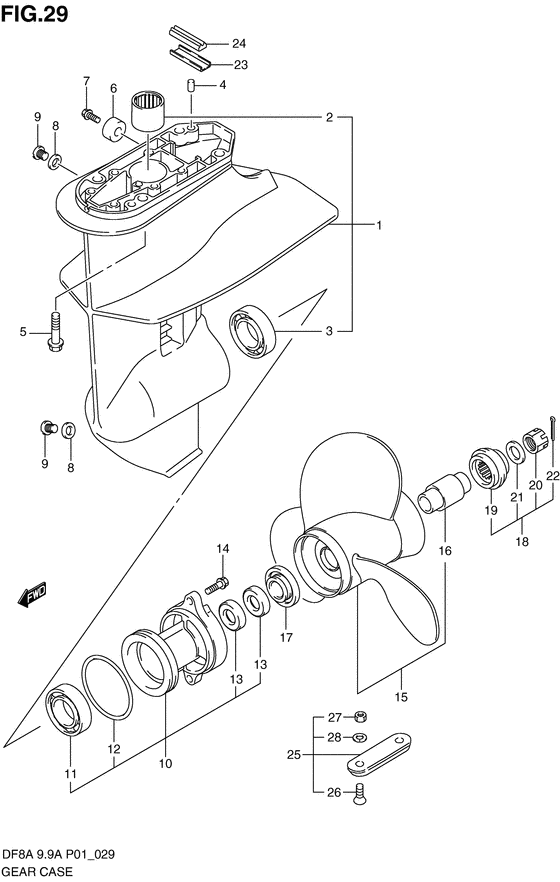

Gear case Diagram Suzuki DF9.9A S/L; ARS/L
- Year
- 2010
- Model
- DF9.9A
- Year
- 2010
- Engine
- 00994F-010001~
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- General Export No.1 (P01)
- Colour
- Shadow Black Metallic (0EP)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-99J10-0EP
Case assy,gear
|
55100-99J10-0EP |
— | ||
| replacements | |||||
|
1
|
1
17632-99J30-000 FILTER,WATER STBD SIDE |
17632-99J30-000 |
US $4 |
||
|
1
|
1
55100-99J31-0EP CASE ASSY,GEAR |
55100-99J31-0EP |
US $375.36 |
||
|
2
|
2
09263-15046-000 BEARING(15X21X22) |
09263-15046-000 |
from US $17 |
||
|
3
|
3
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) |
09262-25003-000 |
from US $13.44 |
||
|
4
|
4
09202-06023-000 PIN(6X10)Pin, knock (6x10); |
09202-06023-000 |
US $21.70 |
||
|
5
|
5
09116-08122-000 BOLT(8X30)Bolt, gear case (8x30); |
09116-08122-000 |
from US $2.08 |
||
|
6
|
6
55321-87J00-000
Anode,protection
|
55321-87J00-000 |
— | ||
| replacement | |||||
|
6
|
6
55321-87J01-000 ANODE,PROTECTION |
55321-87J01-000 |
from US $7.58 |
||
|
7
|
7
09103-06281-000 BOLT(6X14)Bolt, protection anode Bolt (6x14); |
09103-06281-000 |
from US $1.44 |
||
|
8
|
8
59178-97J00-000 GASKET,DRAIN PLUG |
59178-97J00-000 |
from US $1.40 |
||
|
9
|
9
09248-08001-000 PLUG(8X7.5)Plug, drain (8x7.5); |
09248-08001-000 |
from US $0.96 |
||
|
10
|
10
56120-99J10-0EP
Housing,prop shaft brg(black)
|
56120-99J10-0EP |
— | ||
| replacement | |||||
|
10
|
10
56120-99J41-0EP HOUSING,PROPELLER SHAFT BRG |
56120-99J41-0EP |
US $120.19 |
||
|
10
|
10
56120-99J20-0EP
Housing,prop shaft brg(black)
Df8a:110001~, df9.9a:110001~ |
56120-99J20-0EP |
— | ||
| replacement | |||||
|
10
|
10
56120-99J41-0EP HOUSING,PROPELLER SHAFT BRGDf8a:110001~, df9.9a:110001~ |
56120-99J41-0EP |
US $120.19 |
||
|
11
|
11
08110-60050-000 BEARINGBearing |
08110-60050-000 |
from US $10.24 |
||
|
12
|
12
09280-57002-000 O RING(D:3.5,ID:65.2)O ring (d:3.5 id:56.5) O ring (d:3.5 id:56.6); |
09280-57002-000 |
from US $1.87 |
||
|
12
|
12
09280-57L01-000
O ring
O ring (d:3.5 id:56.6); Df8a:110001~, df9.9a:110001~ |
09280-57L01-000 |
— | ||
| replacement | |||||
|
12
|
12
09280-57002-000 O RING(D:3.5,ID:65.2)O ring (d:3.5 id:56.5) O ring (d:3.5 id:56.6); Df8a:110001~, df9.9a:110001~ |
09280-57002-000 |
from US $1.87 |
||
|
13
|
13
09289-17006-000
Oil seal
Oil seal (16x30x6); |
09289-17006-000 |
— | ||
| replacement | |||||
|
13
|
13
09289-17L02-000 SEAL,OIL(17X30X6)Oil seal (16x30x6); |
09289-17L02-000 |
from US $3.04 |
||
|
14
|
14
29116-93J00-000 BoltBolt (6x20); |
29116-93J00-000 |
US $1.60 |
||
|
15
|
15
58100-93703-019
Propeller, 3x9-1/4x7 (m701)
Propeller, 3x9-1/4x7 (m701); |
58100-93703-019 |
— | ||
| replacement | |||||
|
15
|
15
58100-89L00-019 PROPELLER(3X9-1/4X7)(M701)Propeller, 3x9-1/4x7 (m701); |
58100-89L00-019 |
US $157.14 |
||
|
15
|
15
58100-94J00-019
Propeller, 3x9-1/4x9 (m901)
Propeller, 3x9-1/4x9 (m901); |
58100-94J00-019 |
— | ||
| replacement | |||||
|
15
|
15
58100-89L20-019 PROPELLER(3X9-1/4X9)(M930)Propeller, 3x9-1/4x9 (m901); |
58100-89L20-019 |
US $172.48 |
||
|
15
|
15
58100-93733-019
Propeller, 3x9-1/4x10 (m1001)
Propeller, 3x9-1/4x10 (m1001); |
58100-93733-019 |
— | ||
| replacement | |||||
|
15
|
15
58100-89L60-019 PROPELLER(3X9-1/4X10)(M1001)Propeller, 3x9-1/4x10 (m1001); |
58100-89L60-019 |
from US $156.80 |
||
|
15
|
15
58100-93743-019
Propeller, 3x9-1/4x11 (m1101)
Propeller, 3x9-1/4x11 (m1101); |
58100-93743-019 |
— | ||
| replacement | |||||
|
15
|
15
58100-89L70-019 PROPELLER (3X9-1/4X11)Propeller, 3x9-1/4x11 (m1101); |
58100-89L70-019 |
US $156.80 |
||
|
15
|
15
58100-91D00-019
Propeller, 3x9-1/4x8 (m811)
Propeller, 3x9-1/4x8 (m811); |
58100-91D00-019 |
— | ||
| replacement | |||||
|
15
|
15
58100-90L41-019 PROPELLER (3X235X203)Propeller, 3x9-1/4x8 (m811); |
58100-90L41-019 |
US $172.48 |
||
|
15
|
15
58100-93763-019
Propeller, 3x9-1/4x9 (m911)
Propeller, 3x9-1/4x9 (m911); |
58100-93763-019 |
— | ||
| replacement | |||||
|
15
|
15
58100-90L50-019 PROPELLER(3X9-1/4X9)(M911)Propeller, 3x9-1/4x9 (m911); |
58100-90L50-019 |
US $172.48 |
||
|
15
|
15
58100-93773-019
Propeller, 3x9-1/4x10 (m1011)
Propeller, 3x9-1/4x10 (m1011); |
58100-93773-019 |
— | ||
| replacements | |||||
|
15
|
15
58100-90L21-019
PROPELLER(3X9-1/4X10)
Propeller, 3x9-1/4x10 (m1011); |
58100-90L21-019 |
— | ||
|
15
|
15
58100-90L60-019 PROPELLER(3X9-1/4X10)(M1011)Propeller, 3x9-1/4x10 (m1011); |
58100-90L60-019 |
US $148.96 |
||
|
16
|
16
58120-93701-000 BUSH,PROPELLER |
58120-93701-000 |
US $33.30 |
||
|
17
|
17
57632-94J00-000 STOPPER,PROPELLER BUSH |
57632-94J00-000 |
from US $27.20 |
||
|
18
|
18
57630-99J00-000 KIT,PROPELLER NUTOpt |
57630-99J00-000 |
US $44.53 |
||
|
19
|
19
57633-93901-000 SPACER,PROPELLER NUT |
57633-93901-000 |
US $20.24 |
||
|
20
|
20
09141-12005-000 NUT |
09141-12005-000 |
from US $5.58 |
||
|
21
|
21
09160-12066-000 WASHER(12.5X22X2.5)Washer (12.5x22x2.5) Washer (12.5x22x2.5); |
09160-12066-000 |
from US $1.22 |
||
|
22
|
22
09204-02004-000 PINPin, cotter Pin, cotter; |
09204-02004-000 |
from US $0.91 |
||
|
23
|
23
55331-99J00-000
CORE,EXHAUST SEAL
|
55331-99J00-000 |
— | ||
|
24
|
24
55332-99J00-000
RUBBER,EXHAUST SEAL
|
55332-99J00-000 |
— | ||
|
25
|
25
55300-95500-000 ZINC ASSY,PROTECTIONZinc, protection Zinc assy, protection; Opt |
55300-95500-000 |
from US $15.84 |
||
|
26
|
26
09126-06006-000 SCREW(6X20)Screw (6x20); Opt |
09126-06006-000 |
from US $2.84 |
||
|
27
|
27
29141-93J00-000 NUTOpt |
29141-93J00-000 |
from US $1.52 |
||
|
28
|
28
29162-93J00-000 WASHERWasher; Opt |
29162-93J00-000 |
US $1.60 |
||
|
29
|
29
17917-87L00-000 CONNECTOR,FLUSH WATEROpt,not shown |
17917-87L00-000 |
US $7.58 |
||
|
30
|
30
55321-87J10-000 ANODE,MAGNESIUMAnode (magnesium); Opt,not shown |
55321-87J10-000 |
US $18.88 |
||
| replacement | |||||
|
30
|
30
55321-87J11-000 ANODE(MAGNESIUM)Anode (magnesium); Opt,not shown |
55321-87J11-000 |
US $13.28 |
||
