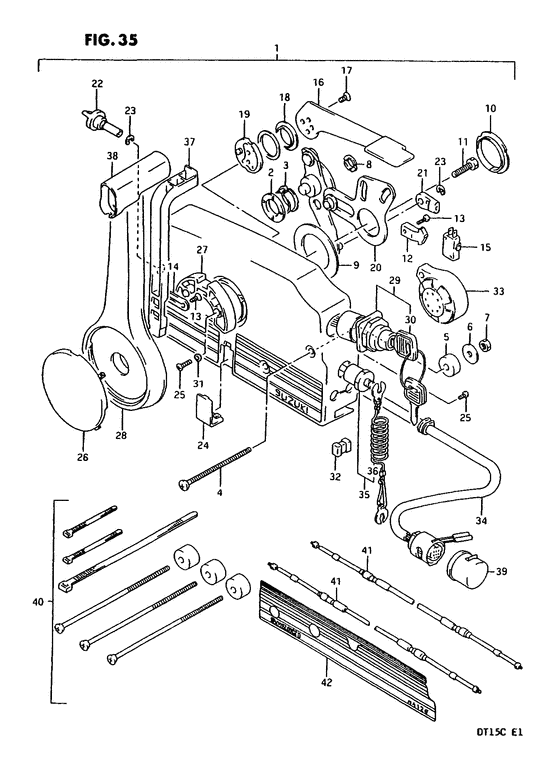

Remote control (Optional; model: 93-97) Diagram Suzuki DT15C S/L
- Year
- 1995
- Model
- DT15C
- Year
- 1995
- Engine
- 01502-581001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 15
- Sales region
- General Export No.1 (P01)
- Colour
- California Gray Metallic (0ED)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67200-89E12-0ED
Remote control box assy
-67200-89e11-0ed |
67200-89E12-0ED |
— | ||
| replacement | |||||
|
1
|
1
67200-89E40-000 REMOTE CONTROL ASSY-67200-89e11-0ed |
67200-89E40-000 |
US $767.80 |
||
|
2
|
2
67232-95600-000 BUSH |
67232-95600-000 |
US $8.64 |
||
|
3
|
3
67232-95620-000 BUSH |
67232-95620-000 |
US $17.60 |
||
|
4
|
4
67296-95600-000 SCREW |
67296-95600-000 |
US $4.31 |
||
|
5
|
5
67294-95600-000 SPACER |
67294-95600-000 |
US $4.64 |
||
|
6
|
6
09160-06104-000
WASHER(6.5X24X2)
|
09160-06104-000 |
— | ||
|
7
|
7
09140-06020-000 NUT |
09140-06020-000 |
from US $1.28 |
||
|
8
|
8
67232-95610-000
BUSH
|
67232-95610-000 |
— | ||
|
9
|
9
67253-95600-000 WASHER |
67253-95600-000 |
US $8.64 |
||
|
10
|
10
67252-95600-000 BUSH |
67252-95600-000 |
US $15.68 |
||
|
11
|
11
09100-08232-000 BOLT(8X30) |
09100-08232-000 |
US $2.43 |
||
|
12
|
12
67214-95600-000
Actuator
|
67214-95600-000 |
— | ||
| replacement | |||||
|
12
|
12
67238-87D00-000 GEAR,DRIVE |
67238-87D00-000 |
US $31.28 |
||
|
13
|
13
67296-94300-000 SCREW(4X10) |
67296-94300-000 |
US $0.92 |
||
|
14
|
14
67258-87D00-000 BRACKET,NEUTRAL ARMBracket, neutral arm |
67258-87D00-000 |
US $4.82 |
||
|
15
|
15
37721-94600-000
Sw assy neutral
Switch, neutral; |
37721-94600-000 |
— | ||
| replacement | |||||
|
15
|
15
37721-94601-000 SWITCH ASSY,NEUTRALSwitch, neutral; |
37721-94601-000 |
US $27.97 |
||
|
16
|
16
67241-95680-000
LEVER,FREE THROTTLE(GRAY)
Lever, free throttle (gray); |
67241-95680-000 |
— | ||
|
17
|
17
09126-05003-000 SCREW(5X12) |
09126-05003-000 |
from US $1.68 |
||
|
18
|
18
67243-95600-000 BUSH,REMO-CON |
67243-95600-000 |
US $6.99 |
||
|
19
|
19
67245-95600-000 DRUM,FREE THROTTLEDrum assy, free throttle |
67245-95600-000 |
US $18.40 |
||
|
20
|
20
67220-95630-000 PLATE ASSY-67220-95610 |
67220-95630-000 |
US $54.40 |
||
|
21
|
21
67275-95600-000 END,CABLE |
67275-95600-000 |
from US $4.64 |
||
|
22
|
22
67223-95600-000 KNOB,BRAKE ADJUST |
67223-95600-000 |
US $19.20 |
||
|
23
|
23
67292-94300-000 E RING,REMO-CON |
67292-94300-000 |
from US $1.53 |
||
|
24
|
24
67267-95610-000 COVER,WIRECover, wire (black) Cover, wire (black); |
67267-95610-000 |
US $4.38 |
||
|
25
|
25
67296-95610-000 SCREW |
67296-95610-000 |
US $2.13 |
||
|
26
|
26
67257-95610-000 CAP,LEVER |
67257-95610-000 |
US $15.06 |
||
|
27
|
27
67256-95600-000 HOLDER,NEUTRAL LOCKHolder, neut lock |
67256-95600-000 |
US $10.72 |
||
|
28
|
28
67251-95680-000 LEVER,HANDLELever, hadle (gray) Lever, hadle (gray); |
67251-95680-000 |
US $133.01 |
||
|
29
|
29
37110-92E01-000
Switch assy, ig
|
37110-92E01-000 |
— | ||
| replacements | |||||
|
29
|
29
37110-99E01-000
SWITCH ASSY,IGNITION
|
37110-99E01-000 |
— | ||
|
29
|
29
37110-99E02-000 Switch Assy,ignition |
37110-99E02-000 |
US $68.82 |
||
|
30
|
30
37141-92E00-000 KEY(11)Key (11); |
37141-92E00-000 |
US $13.91 |
||
|
30
|
30
37141-92E10-000 KEY(12)Key (12); |
37141-92E10-000 |
US $13.91 |
||
|
30
|
30
37141-92E20-000 KEY(13)Key (13); |
37141-92E20-000 |
US $13.91 |
||
|
30
|
30
37141-92E30-000 KEY(14)Key (14); |
37141-92E30-000 |
US $13.91 |
||
|
30
|
30
37141-92E40-000 KEY(15)Key (15); |
37141-92E40-000 |
US $13.91 |
||
|
30
|
30
37141-92E50-000 KEY(16)Key (16); |
37141-92E50-000 |
US $13.91 |
||
|
30
|
30
37141-92E60-000 KEY(17)Key (17); |
37141-92E60-000 |
US $13.91 |
||
|
30
|
30
37141-92E70-000 KEY(18)Key (18); |
37141-92E70-000 |
US $13.91 |
||
|
30
|
30
37141-92E80-000 KEY(19)Key (19); |
37141-92E80-000 |
US $13.91 |
||
|
30
|
30
37141-92E90-000 KEY(20)Key (20); |
37141-92E90-000 |
US $13.91 |
||
|
31
|
31
67297-95600-000 WASHER |
67297-95600-000 |
US $2.13 |
||
|
32
|
32
67273-95600-000
SPACER
|
67273-95600-000 |
— | ||
| replacement | |||||
|
32
|
32
67273-95601-000 Spacer |
67273-95601-000 |
US $3.46 |
||
|
33
|
33
38500-92X50-000
BUZZER SET,WARNING
|
38500-92X50-000 |
— | ||
| replacement | |||||
|
33
|
33
38500-92X51-000
Buzzer Set,warning
|
38500-92X51-000 |
— | ||
|
34
|
34
36620-95D00-000 HARNESS,WIRING EXTWiring harness 9 wires Wiring harness 9 wires; |
36620-95D00-000 |
US $181.06 |
||
|
35
|
35
37820-92E00-000
Switch assy,eme
Switch assy, emergency; |
37820-92E00-000 |
— | ||
| replacements | |||||
|
35
|
35
37820-92E04-000
SWITCH ASSY,EMERGENCY
Switch assy, emergency; |
37820-92E04-000 |
— | ||
|
35
|
35
37820-92E05-000 Switch Assy,emergencySwitch assy, emergency; |
37820-92E05-000 |
from US $48 |
||
|
36
|
36
37823-92E00-000
Plate,lock
Lock plate; |
37823-92E00-000 |
— | ||
| replacements | |||||
|
36
|
36
37823-92E01-000
PLATE ASSY,EMERGENCY SW LOCK
Lock plate; |
37823-92E01-000 |
— | ||
|
36
|
36
37823-92E02-000 Plate Assy,emergency Sw LockLock plate; |
37823-92E02-000 |
US $19.69 |
||
|
37
|
37
67255-95600-000
ARM,NEUTRAL LOCK
Arm, neutral lock; |
67255-95600-000 |
— | ||
|
38
|
38
67261-95610-000 GRIP |
67261-95610-000 |
US $14.32 |
||
|
39
|
39
36629-92E00-000
Plug,connector
Plug, connector; |
36629-92E00-000 |
— | ||
|
40
|
40
67140-95600-000
ATTACHMENT KIT,TWIN REMOCON
Attachment, twin remocon kit; Opt |
67140-95600-000 |
— | ||
| replacement | |||||
|
40
|
40
67140-95601-000 Attachment Kit,twin RemoconAttachment, twin remocon kit; Opt |
67140-95601-000 |
US $40.80 |
||
|
41
|
41
67320-95510-000
Cable assy,remo
Cable assy, remocon 7f(2.1m); |
67320-95510-000 |
— | ||
|
41
|
41
67320-95520-000
Cable, clutch 8f (2.4m)
Cable assy, remocon 8f(2.4m); |
67320-95520-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J00-000 CABLE ASSY,REMOCON(8F:2.4M)Cable assy, remocon 8f(2.4m); |
67320-93J00-000 |
US $177.57 |
||
|
41
|
41
67320-95540-000
Cable, clutch 2.7m
Cable assy, remocon 10f(3.1m); |
67320-95540-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J10-000 CABLE ASSY,REMOCON(10F:3.1M)Cable assy, remocon 10f(3.1m); |
67320-93J10-000 |
from US $56.81 |
||
|
41
|
41
67320-95560-000
Cable, clutch 3.8m
Cable assy, remocon 13f(3.7m); |
67320-95560-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J20-000 CABLE ASSY,REMOCON(12F:3.7M)Cable assy, remocon 13f(3.7m); |
67320-93J20-000 |
from US $52.99 |
||
|
41
|
41
67320-95580-000
Cable, clutch 4.3m
Cable assy, remocon 14f(4.2m); |
67320-95580-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J30-000 CABLE ASSY,REMOCON(14F:4.2M)Cable assy, remocon 14f(4.2m); |
67320-93J30-000 |
from US $66.67 |
||
|
41
|
41
67320-95600-000
Cable, clutch 4.9m
Cable assy, remocon 16f(4.9m); |
67320-95600-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J40-000 CABLE ASSY,REMOCON(16F:4.8M)Cable assy, remocon 16f(4.9m); |
67320-93J40-000 |
from US $61.46 |
||
|
41
|
41
67320-95620-000
Cable, clutch 5.5m
Cable assy, remocon 16f(4.9m); |
67320-95620-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J50-000 CABLE ASSY,REMOCON(18F:5.4M)Cable assy, remocon 16f(4.9m); |
67320-93J50-000 |
from US $65.87 |
||
|
41
|
41
67320-95640-000
Cable, clutch 20f (6.1m)
Cable assy, remocon 20f(6.1m); |
67320-95640-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J60-000 CABLE ASSY,REMOCON(20F:6.1M)Cable assy, remocon 20f(6.1m); |
67320-93J60-000 |
from US $91.67 |
||
|
41
|
41
67320-95650-000
Cable, clutch 22f (6.7m)
Cable assy, remocon 22f(6.7m); |
67320-95650-000 |
— | ||
| replacement | |||||
|
41
|
41
67320-93J70-000 CABLE ASSY,REMOCON(22F:6.7M)Cable assy, remocon 22f(6.7m); |
67320-93J70-000 |
from US $74.70 |
||
|
42
|
42
67282-95610-000
Decal,rmt cntl
Decal, remocon box port; Opt,black |
67282-95610-000 |
— | ||
