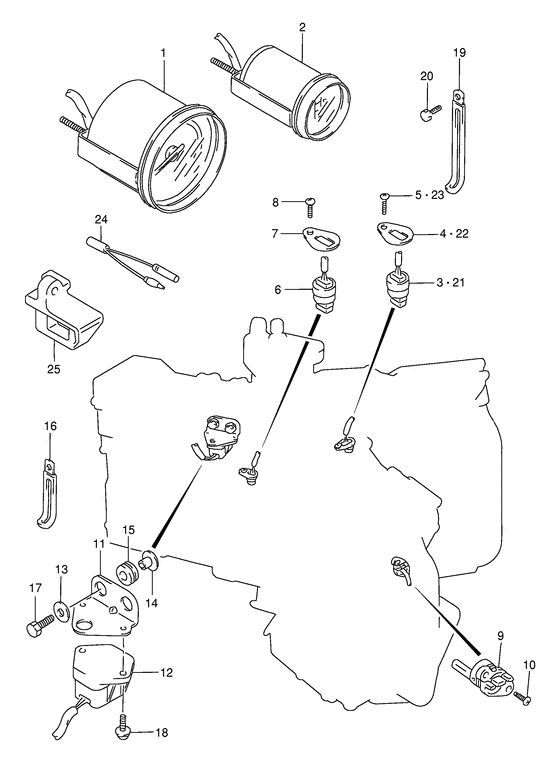

Sensor & meter (Dt200epi/150epi/225)(*) Diagram Suzuki DT200 L/UL
- Year
- 2000
- Model
- DT200
- Year
- 2000
- Engine
- 20002-030001~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Sales region
- General Export No.1 (P01)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34200-92E02-000
TACHOMETER ASSY
Tachometer assy; |
34200-92E02-000 |
— | ||
|
2
|
2
34701-92X50-000
GAUGE SET,MONITO RING
Indicator, oil & water; Dt225, ~model:92 |
34701-92X50-000 |
— | ||
|
2
|
2
34700-92E11-000 GAUGE ASSY,MONITORINGIndicator, monitoring Gauge assy, monitoring; |
34700-92E11-000 |
US $283.36 |
||
|
3
|
3
34820-92E01-000
SENSOR,CYLINDER TEMP
|
34820-92E01-000 |
— | ||
|
4
|
4
34853-94700-000 SUPPORTER,ENGINE TEMP SENSORSuporter, engine temp Supporter, cylinder temp; |
34853-94700-000 |
US $2.65 |
||
|
5
|
5
09125-06069-000 SCREW(6X12)Screw, cylinder temp; 6x12 |
09125-06069-000 |
from US $3.16 |
||
|
6
|
6
34830-92E00-000 SENSOR,AIR TEMPSensor, cylinder temp |
34830-92E00-000 |
US $37.17 |
||
|
7
|
7
34853-94700-000 SUPPORTER,ENGINE TEMP SENSORSuporter, engine temp Supporter, air temp; |
34853-94700-000 |
US $2.65 |
||
|
8
|
8
09125-06069-000 SCREW(6X12)Screw, air temp snsr; 6x12 |
09125-06069-000 |
from US $3.16 |
||
|
9
|
9
34876-92E00-000
PLUG,WATER SNSR HOLE
Plug, water snsr hole; |
34876-92E00-000 |
— | ||
|
10
|
10
03212-05163-000
Screw
Screw, water snsr hole plug; |
03212-05163-000 |
— | ||
| replacements | |||||
|
10
|
10
03212-0516B-000
SCREW
Screw, water snsr hole plug; |
03212-0516B-000 |
— | ||
|
10
|
10
13765-48GV0-000 ScrewScrew, water snsr hole plug; |
13765-48GV0-000 |
from US $3.55 |
||
|
11
|
11
15765-92E01-000
Bracket, regulator
~model:93 |
15765-92E01-000 |
— | ||
|
12
|
12
18590-53A01-000
Sensor,pressure
|
18590-53A01-000 |
— | ||
|
13
|
13
09160-06084-000 WASHER(6.5X18X1.6)Washer, air pressure; 6.5x18x1.60 |
09160-06084-000 |
from US $0.76 |
||
|
14
|
14
09169-06062-000 WASHERWasher Spacer, air pressure; 6.3x17x1.60 |
09169-06062-000 |
from US $1.12 |
||
|
15
|
15
09320-08501-000 CUSHIONCushion, air pressure; |
09320-08501-000 |
from US $3.42 |
||
|
16
|
16
09404-06432-000
CLAMP(L:65)
Clamp, air pressure; |
09404-06432-000 |
— | ||
| replacement | |||||
|
16
|
16
09404-06039-000 Clamp(L:65)Clamp, air pressure; |
09404-06039-000 |
from US $1.82 |
||
|
17
|
17
02162-06257-000 SCREWBolt Bolt, air pressure; |
02162-06257-000 |
US $11 |
||
|
18
|
18
02142-05127-000 SCREWScrew, air pressure; |
02142-05127-000 |
from US $0.96 |
||
|
19
|
19
09404-06434-000
CLAMP(L:80 T:1.0)
Clamp, ptt motor cable; |
09404-06434-000 |
— | ||
| replacement | |||||
|
19
|
19
09404-06036-000 Clamp(L:80)Clamp, ptt motor cable; |
09404-06036-000 |
from US $1.82 |
||
|
20
|
20
01560-06127-000 BoltBolt, ptt motor cable; |
01560-06127-000 |
US $14.40 |
||
|
21
|
21
34850-95D00-000
Heat Sensor
Sensor, heat; |
34850-95D00-000 |
— | ||
| replacement | |||||
|
21
|
21
34850-95D30-000 Heat SensorSensor, heat; |
34850-95D30-000 |
US $72.50 |
||
|
22
|
22
34853-94700-000 SUPPORTER,ENGINE TEMP SENSORSuporter, engine temp Supporter; |
34853-94700-000 |
US $2.65 |
||
|
23
|
23
09125-06069-000 SCREW(6X12)Screw; |
09125-06069-000 |
from US $3.16 |
||
|
24
|
24
34826-92E00-000
RESISTOR,TEMP SENSOR
|
34826-92E00-000 |
— | ||
|
24
|
24
34826-87D00-000
RESISTOR,AIR TEMP SENSOR
Opt |
34826-87D00-000 |
— | ||
|
25
|
25
34881-92E00-000
BRACKET,AIR PRESSURE SENSOR
Model:94~00 |
34881-92E00-000 |
— | ||
