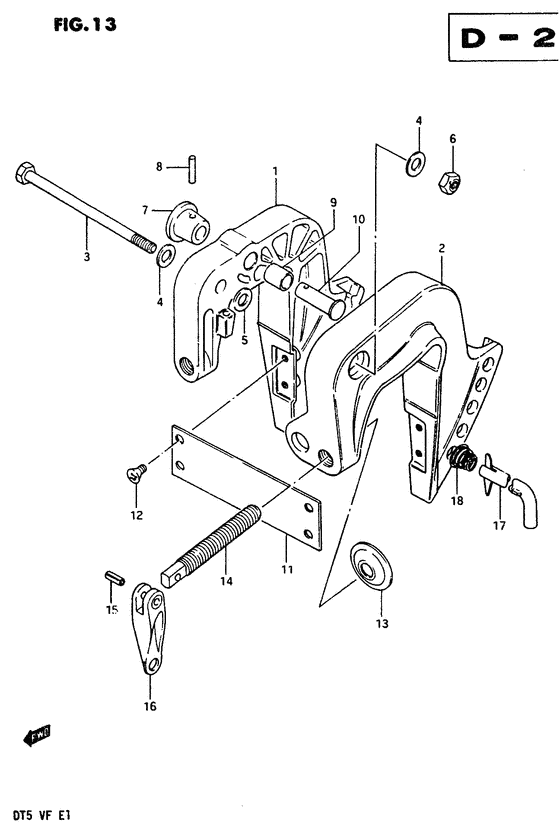

Clamp bracket Diagram Suzuki DT5 S/L
- Year
- 1984
- Model
- DT5
- Year
- 1984
- Engine
- 0501-451193~
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 5
- Sales region
- Japan
- Colour
- Francois Whte №2, Arctic Silver (01T/02M)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-98512-02M
Bracket, clamp rh
|
41111-98512-02M |
— | ||
| replacements | |||||
|
1
|
1
09116-06121-000 BOLT(6X25)Bolt (6x25) |
09116-06121-000 |
from US $1.22 |
||
|
1
|
1
41100-98800-0ED
BRACKET SET,CLAMP(R/L)(GRAY)
|
41100-98800-0ED |
— | ||
|
1
|
1
55321-90L00-000 ZINC,PROTECTION |
55321-90L00-000 |
US $4.08 |
||
|
2
|
2
41121-98514-02M
Bracket, clamp lh
|
41121-98514-02M |
— | ||
| replacement | |||||
|
2
|
2
41100-98800-0ED
BRACKET SET,CLAMP(R/L)(GRAY)
|
41100-98800-0ED |
— | ||
|
3
|
3
09100-10190-000
Bolt
|
09100-10190-000 |
— | ||
| replacement | |||||
|
3
|
3
09100-10190-XC0 BOLT(10X145) |
09100-10190-XC0 |
US $323.80 |
||
|
4
|
4
09160-10040-000
Washer
|
09160-10040-000 |
— | ||
| replacement | |||||
|
4
|
4
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
4
|
4
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
||
|
5
|
5
09160-10083-000 WASHER(10.5X30X3.2)Washer (10.5x30x3.2) |
09160-10083-000 |
US $17.30 |
||
|
6
|
6
09159-10050-000 NUT |
09159-10050-000 |
US $5.92 |
||
|
7
|
7
41221-93001-000 KNOB,TILT STOPPERKnob, tilt stopper |
41221-93001-000 |
US $3.09 |
||
|
8
|
8
09205-03015-000
Pin, tilt stopper knob
|
09205-03015-000 |
— | ||
| replacement | |||||
|
8
|
8
09205-03032-000 PIN,SPRING(3X8)Pin (3x8) |
09205-03032-000 |
from US $1.63 |
||
|
9
|
9
09300-12009-000 BUSH(12X15X20)Bushing, tilt stopper pin |
09300-12009-000 |
US $6.44 |
||
|
10
|
10
09200-12001-000
Pin, tilt stopper
|
09200-12001-000 |
— | ||
| replacement | |||||
|
10
|
10
09200-12003-000
PIN
|
09200-12003-000 |
— | ||
|
10
|
10
09200-12003-000
PIN
|
09200-12003-000 |
— | ||
|
11
|
11
41311-98101-000
PLATE,CLAMP BRACKET
|
41311-98101-000 |
— | ||
|
12
|
12
09125-06053-000 SCREW(6X16)Screw, tiller handle cover |
09125-06053-000 |
from US $1.07 |
||
|
13
|
13
41213-98100-000
PLATE,CLAMP
|
41213-98100-000 |
— | ||
| replacement | |||||
|
13
|
13
41213-94J01-000 PLATE,CLAMP |
41213-94J01-000 |
US $3.04 |
||
|
14
|
14
41211-98503-000
Screw
|
41211-98503-000 |
— | ||
| replacement | |||||
|
14
|
14
41210-986L1-000 SCREW ASSY,CLAMP |
41210-986L1-000 |
US $47.20 |
||
|
15
|
15
09205-05001-000
Pin
|
09205-05001-000 |
— | ||
| replacement | |||||
|
15
|
15
09205-05014-000 PIN,SPRING(5X18)Pin, clutch lever (l:18) |
09205-05014-000 |
from US $2.99 |
||
|
16
|
16
41212-99000-02M
Handle
|
41212-99000-02M |
— | ||
| replacement | |||||
|
16
|
16
41212-99000-0ED
HANDLE,CLAMP(GRAY)
|
41212-99000-0ED |
— | ||
|
17
|
17
45420-98101-000
PIN,TILT LOCK
E7,e13,e38,e40 |
45420-98101-000 |
— | ||
|
18
|
18
09441-17001-000 SPRINGE7,e13,e38,e40 |
09441-17001-000 |
US $2.24 |
||
